LR-MSAS-SATA-42A
Server Adapters

LR-MSAS-SATA-42A
6G LR-MSAS-SATA-42A 6-Slot Backplane Board

6G LR-MSAS-SATA-42A 6-Slot Backplane Board

PDF
LR-MSAS-SATA-42A
PDF --
Download
Inquiry
Suggestion
LR-MSAS-SATA-42A
LR-MSAS-SATA-42A view 1

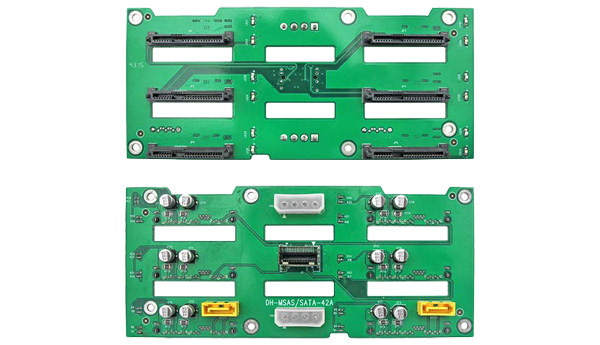

LR-MSAS-SATA-42A view 2

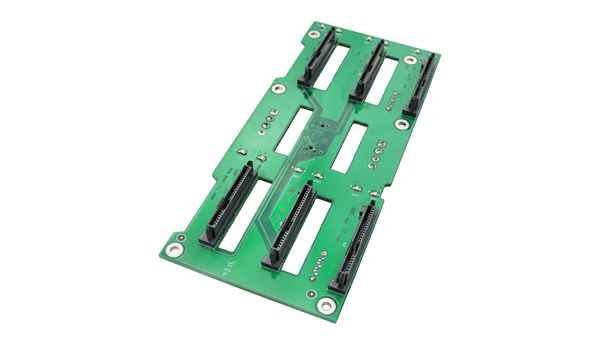

LR-MSAS-SATA-42A view 3
LR-MSAS-SATA-42A view 4

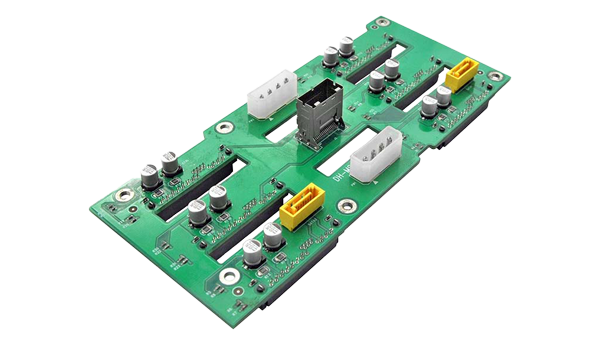

LR-MSAS-SATA-42A view 5
LR-MSAS-SATA-42A view 6
Overview Version Query
Overview

Product Overview

6-Slot Backplane Board


Interface: 3*4Pin Power Supply &6*7Pin SATA Adapter


Support 6*SATA/SAS Hard Disk


Support 2.5/3.5 Inch Hard Disk


Support Solid State Drive


Support Mechanical Hard Disk


Dimension:176mm*76mm
