LR-H12G16A
Server Adapters

LR-H12G16A
LR-H12G16A 16-Slot Backplane Board

LR-H12G16A 16-Slot Backplane Board

PDF
LR-H12G16A
PDF --
Download
Inquiry
Suggestion
LR-H12G16A
LR-H12G16A view 1

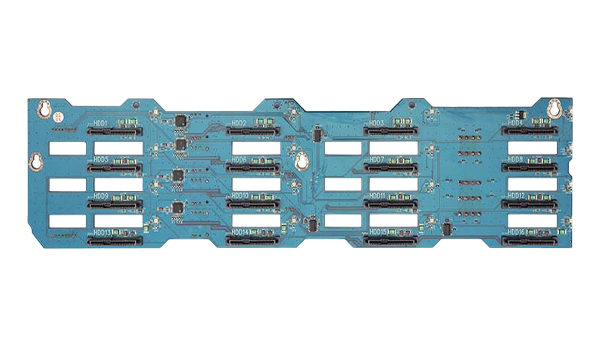

LR-H12G16A view 2
Overview Version Query
Overview

Product Overview

Spec.


16-Slot Backplane Board


Interface: 5*4Pin Power Supply&4*SFF8087 Adapter


Support 16*SATA/SAS Hard Disk（6G/12G）


Support 2.5/3.5 Inch Hard Disk


Support Solid State Drive&Mechanical Hard Disk


Support Chip Conversion
