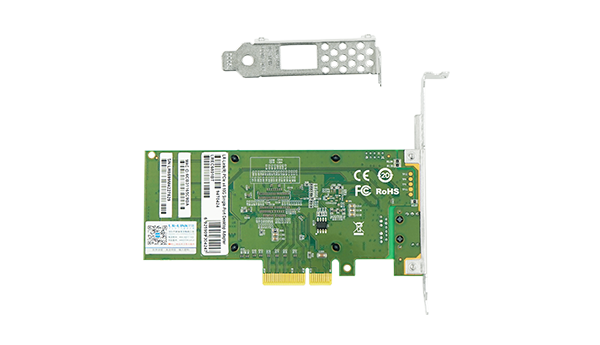

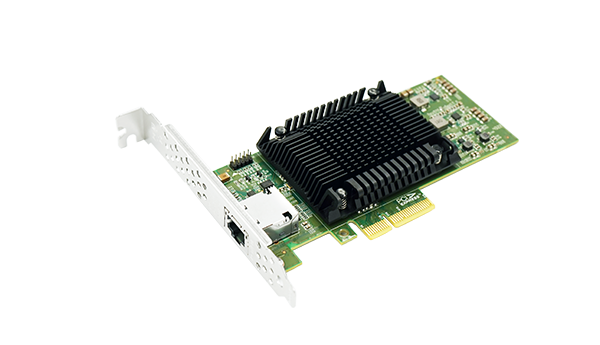

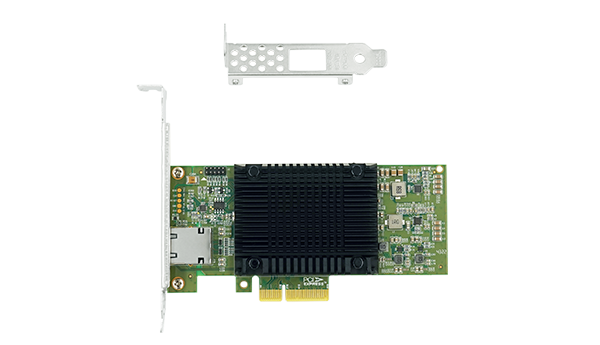

LREC6801BT
PCIe x4 Single-port 10G Copper Network Interface Card (Intel 82599)

LREC6801BT is a PCI Express x4 10Gbps Single Port Ethernet Copper Network Adapter based on Intel 82599 chipset developed by Linkreal Co., Ltd. Its design can be applied on occasions like net bar servers and FTTD. This adapter can flexibly integrate PCIe x4 network to 10G network and also improve capability of the adapter, which makes System I/O no longer the bottleneck of High-end applications. It can manage changing data, link, physical layers, logical layers and data packet flow passing through. The controller shares tasks of the host by speeding up hardware such as TCP/UDP/IP calibration, calculating tasks and TCP section. The adapter is the ideal solution for mass net arrangement and network application environment of high-capability servers.

LREC6801BT adapter provides hardware enhancement technologies like improving intelligent queue skills for multi-core CPUs and it supports load balancing to realize expandability of 10G Ethernet to a new level. The support includes Intel VTc on network level which can improve total system capability under virtual server environments. The VMDq of Intel VTc technology can increase capability as well as decrease CPU utilization by sorting and loading data from VMM to Internet controller. The latest increased features include unloading change between virtual machines in the servers,VMDc to virtual machine with almost perfect capability.

LREC6801BT adapter provides features including of hardware optimization of I/O virtualization and unified Network support, reforming data centre by its outstanding reliablity, expansibility and mobility.

Jumbo Frame Transfer, No Frame Loss: PCIe x4 Single-port 10G Copper Ethernet Network Adapter LRES2051PT
