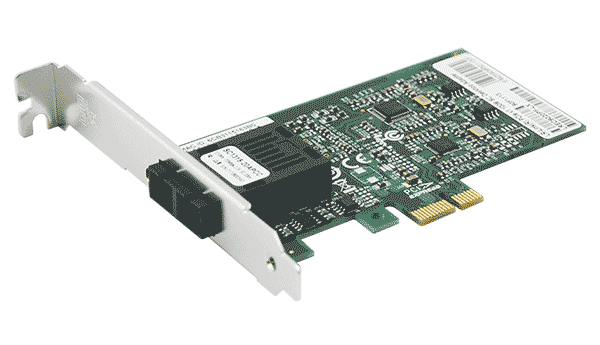

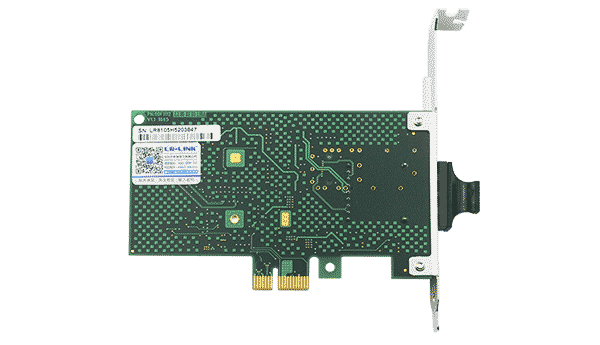

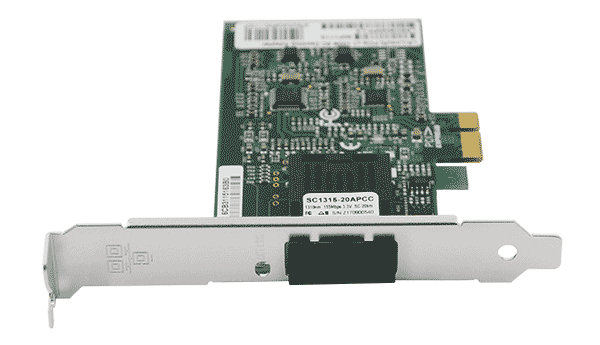

PCIe 100M Single-mode SC Connector Fiber Card (RTL8105E Based)
LREC9020PF-LX is 100Mbps PCIe fiber optic NIC card, it is ideal for government, education or other networks with high security requirements, Designed for fiber-to-desktop networks that need secure and reliable systems. Users can select the optical interface parameters (including connectors,single-mode/multi-mode fiber, working distance, etc) according to occasion. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems.
The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.
Complete technical details for integration and deployment planning.
| Jumbo Frame Support | Up to 9.5 KB |
|---|---|
| Operating Temperature | 0 °C to 55 °C (32 °F to131 °F) |
| Network Virtualization | VXLAN, MACinUDP, NVGRE, IPinGRE |
| LED Indicators OPERATION | Link/ACT Green Blinking:100M |
| OperatingSystem Support | Windows Server 2016 R2/2012 R2/2012/2008 R2 |
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
