Miniaturized single-port Gigabit Ethernet adapter based on Intel I210 for desktop and industrial use.

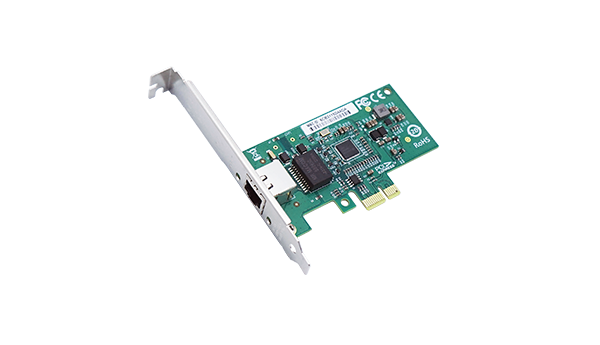

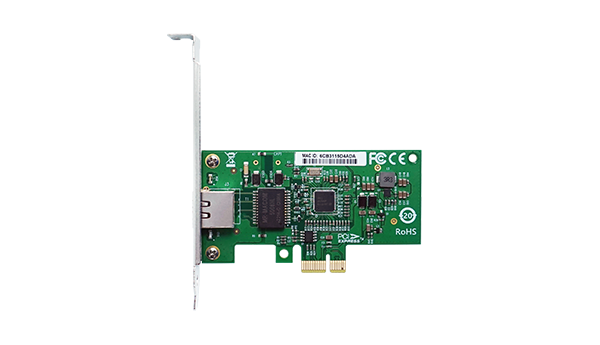

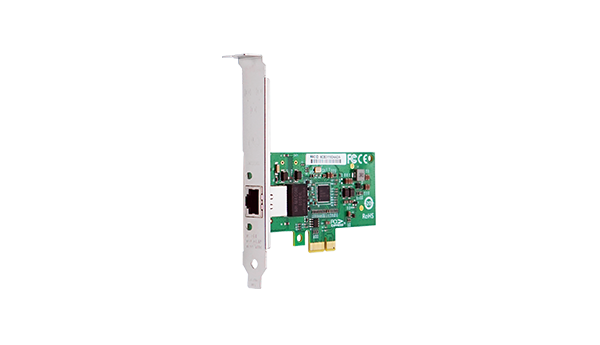

LR-LINK presents the LREC9204CT, a specialized PCIe x1 Gigabit Ethernet adapter engineered for both commercial and industrial applications. Based on the robust Intel I210 chipset, this single-port network card delivers reliable 10/100/1000Mbps data transmission in a miniaturized form factor that fits seamlessly into standard desktop systems.
Designed for efficiency and durability, the adapter integrates advanced power management technologies such as Energy-Efficient Ethernet (EEE) and DMA merging. It features error correction memory protection and parallel pipeline logic to ensure low latency and high reliability, making it ideal for environments where space and power are critical constraints.
This network interface card offers comprehensive compatibility with major operating systems including Windows, Linux distributions, and various server OS platforms. With support for PXE, WoL, Jumbo frames, and IEEE 1588 PTP, the LREC9204CT provides essential enterprise features in a cost-effective solution suitable for office automation, industrial control, and embedded networking.
Miniaturized PCB size fits easily into small form factor desktops and industrial PCs.
Supports EEE and DMA merging to significantly reduce power consumption during operation.
Wide temperature range and robust ESD protection ensure reliability in harsh environments.
Intel I210 chipset with error correction memory protection ensures stable data transmission.
Includes Wake-on-LAN (WoL) and PXE boot capabilities for remote management and deployment.
Complete technical details for integration and deployment planning.
| Model | LREC9204CT |
|---|---|
| Controller | Intel I210 |
| Bus Type | PCIe v2.1 (2.5GT/s) x1 |
| Data Rate | 10/100/1000Mbps |
| Connector | 1x RJ45 |
| Cable Medium | Copper |
| PXE | Yes |
|---|---|
| WoL | Yes |
| Jumbo Frame | Yes |
| SR-IOV | No |
| IEEE 1588 PTP | Yes |
| UEFI Support | Yes |

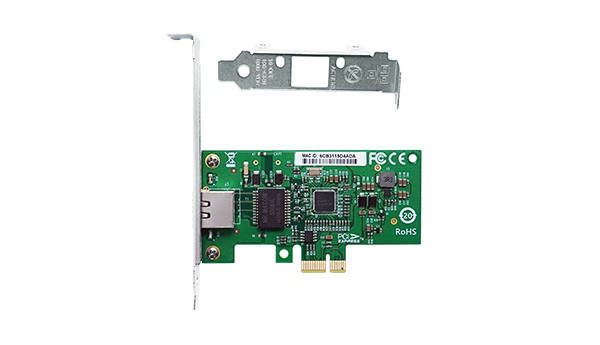

| Form Factor | Low Profile / Full Height Bracket |
|---|---|
| PCB Size | 137.6 x 68.9 x 1.6 mm |
| Power Consumption (Min) | 0.363W |
| Power Consumption (Max) | 0.834W |
| Operating Temperature | 0°C to 70°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Humidity | 90% non-condensing at 35°C |
| ESD Contact Discharge | ±8KV |
| Air Discharge | ±15KV |
| Standards | IEEE 802.3ab, 802.3u, 802.3z, 802.3az (EEE), 802.1Q VLAN, 802.3x |
|---|---|
| System Support | Windows, Linux, FreeBSD, VMware ESXi, etc. |
