Single-port Gigabit PCIe x1 network adapter based on Broadcom BCM5721 chip with IPMI support.

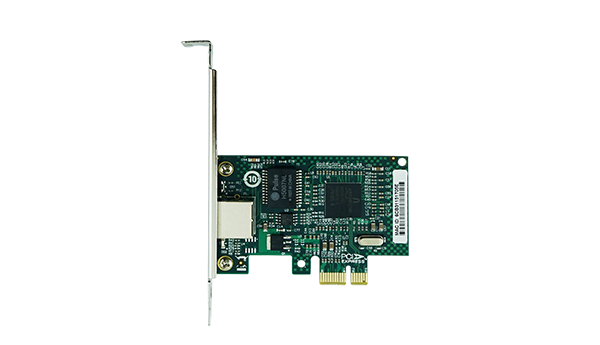

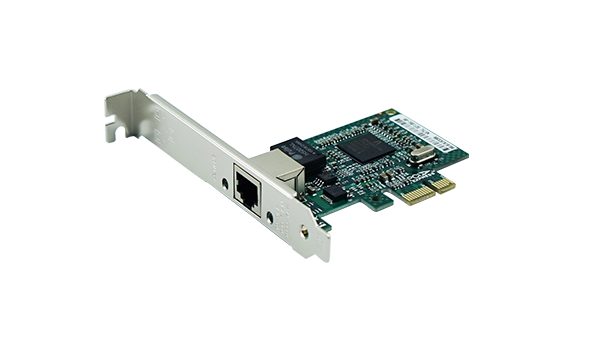

LR-LINK presents the LREC9210PT, a robust single-port Gigabit Ethernet network adapter designed for versatile deployment in servers and workstations. Built on the reliable Broadcom BCM5721 chipset, this adapter delivers high-performance 10/100/1000BASE-T connectivity over standard copper cabling.
Designed for flexibility, the card utilizes a low-profile PCIe x1 interface that is fully backward compatible with PCIe x4, x8, and x16 slots, ensuring easy integration into various system configurations. It includes both full-height and half-height brackets to accommodate different chassis requirements.
A key advantage of the LREC9210PT is its support for the IPMI 1.5 manageable standard, enabling efficient remote management and monitoring of connected devices. This makes it an excellent choice for data centers and enterprise environments where power management and remote accessibility are critical.
The adapter supports essential networking protocols including Jumbo Frames, PXE boot, and DPDK, ensuring compatibility with modern operating systems like Windows Server and Linux distributions. Its energy-efficient design and stable performance make it a dependable solution for general-purpose networking tasks.
Powered by Broadcom BCM5721 for stable and reliable Gigabit Ethernet performance.
Features one RJ45 port supporting 10/100/1000Mbps speeds for standard copper connections.
Supports IPMI 1.5 standard for efficient remote device management and monitoring.
PCIe x1 interface compatible with x4, x8, and x16 slots for flexible installation.
Energy-efficient design with only 1.5W power consumption for eco-friendly operation.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 x1 (compatible with x4/x8/x16) |
|---|---|
| Data Rate | 10/100/1000 Mbps |
| Connector | 1x RJ45 |
| Controller | Broadcom BCM5721 |
|---|
| IPMI Support | IPMI 1.5 |
|---|---|
| Jumbo Frames | Yes |
| PXE Boot | Yes |
| DPDK | Yes |
| WoL | No |
| iSCSI | No |
| FCoE | No |
| Size | 137.65 * 120 * 21 mm |
|---|---|
| Bracket | Full-height & Half-height |
| Power Consumption | 1.5W |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 1588 |
|---|
