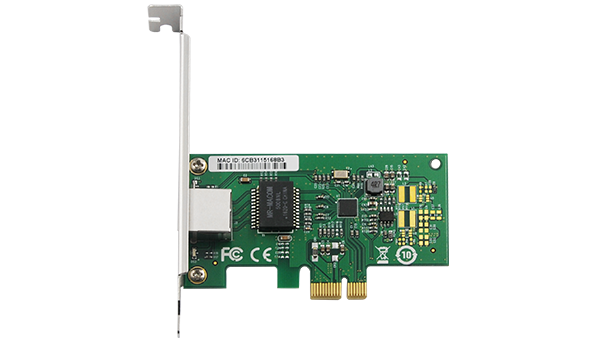

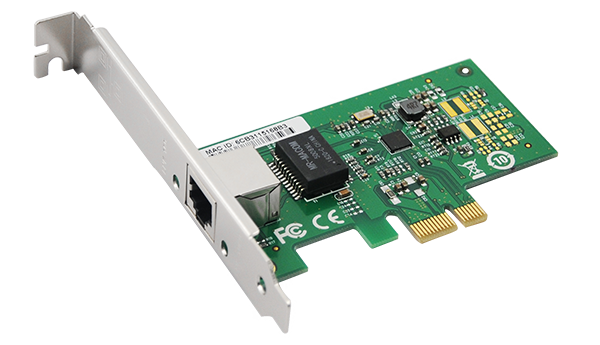

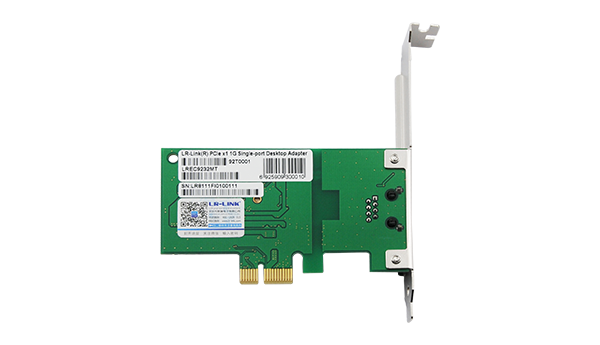

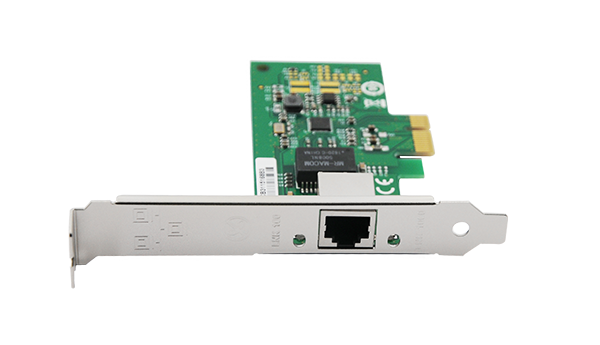

Realtek RTL8111H based PCIe x1 Gigabit Ethernet adapter for desktops and embedded systems.
LR-LINK presents the LREC9232MT, a high-performance Gigabit Ethernet network adapter engineered for desktop computers, mobile devices, and embedded applications. Built on the robust Realtek RTL811H control scheme, this adapter delivers reliable 1Gbps data transmission via a standard PCIe 1.0 x1 bus interface, ensuring compatibility with a wide range of legacy and modern systems.
This product utilizes cutting-edge DSP technology and hybrid-mode signal processing to ensure stable performance over CAT5 UTP or higher-grade cables. It incorporates sophisticated features such as cross-detection, automatic polarity correction, adaptive equalization, and crosstalk cancellation, providing robust transmission and reception capabilities even in electrically noisy environments.
The LREC9232MT supports essential enterprise features including Wake-on-LAN (WoL), PXE boot, Jumbo Frames up to 9.2KB, and IEEE 802.1Q VLAN tagging. It also offers Receive Side Scaling (RSS) to balance load across multiple CPUs, reducing processor utilization and improving overall network throughput. With support for Energy Efficient Ethernet (EEE) and Sleep Host Standard proxy, it helps extend host sleep duration while maintaining network presence.
Supports 1Gbps transmission speed for efficient data transfer over standard copper cables.
Powered by Realtek RTL8111H controller for stable and robust network performance.
Enables remote wake-up capability via network packets for convenient management.
Supports PXE and UEFI boot for easy system deployment and recovery.
Features IEEE 802.3az EEE and Sleep Host Standard proxy to reduce power usage.
Complete technical details for integration and deployment planning.
| Host Connector | PCIe 1.0 x1 |
|---|---|
| Connectors | RJ45 |
| Port | Single |
| Link Speed | 1Gb |
| Supported Physical Layer Interfaces | IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z 10BASE-T |
| Controller | RTL8111H |
|---|---|
| Adapter Type | PCIe |
| Protocols | IEEE 802.1Q, IEEE 802.3x, IEEE 1588, IEEE 802.3az (EEE) |
|---|---|
| OS Support | Windows, FreeBSD, NewStart OS, Deepin, UOS, RHEL/CentOS, Ubuntu, OpenEuler, FusionOS, Debian, KylinOS, SUSE, iKuai Router |
| PXE/UEFI | Yes |
|---|---|
| DPDK | Yes |
| WoL | Yes |
| Jumbo Frames | 9.2KB |
| iSCSI | No |
| FCoE | No |
| Form Factor | HHHL |
|---|---|
| Product Size | 55.5*64.9mm |
| Package Size | 179*150*30mm |
| Operating Temperature | 10°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35°C |
| Power Consumption | 1.0W (Max) |
|---|
| Certification | FCC, CE, RoHS |
|---|
