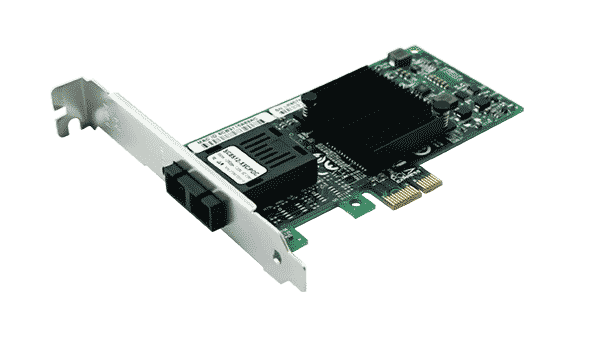

PCIe x1 1000BASE Desktop Fiber Ethernet Adapter (Intel 82576 Based)
LREC9260PF/PF-BD/PF-SFP is a PCIe x1 1Gbps Single-Port Ethernet Fiber Desktop Adapter based on Intel 82576EB chipset, It is compatible with PCIe x8 and x16 slot and low-profile PCI Express slots.
The adapter performance has been optimized while being designed to make system I/O no longer the bottleneck of network application. It can be grouped up together by other adapters to achieve fault tolerance as well as combine the communicating routing from the faulted port with others in the same group to guarantee its non-stop network communications. The Fiber Network Adapter with excellent noise immunity is applicable for Gigabit Ethernet Network. Its power supply has been changed into American TI high-efficiency supply management controller with low heat release, high efficiency and high stability.
Complete technical details for integration and deployment planning.
| Jumbo Frame Support | Up to 9.5 KB |
|---|---|
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Network Virtualization | VXLAN, MACinUDP, NVGRE, IPinGRE |
| LED Indicators OPERATION | 1000Mbps/s:Link Green constant, ATC Yellow blink |
| OperatingSystem Support | Windows Server2016/ 2012 R2/2008 R2/2008/2003 |
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
