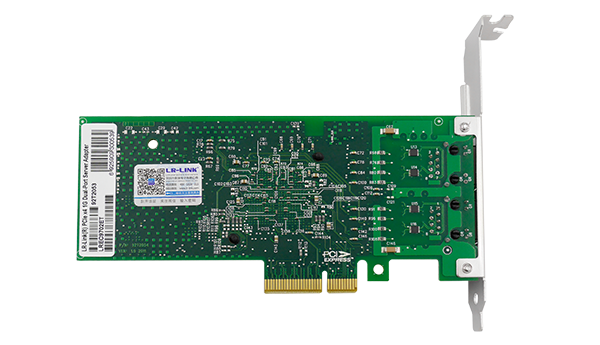

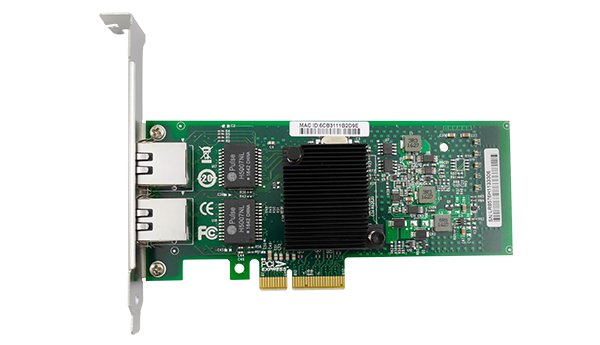

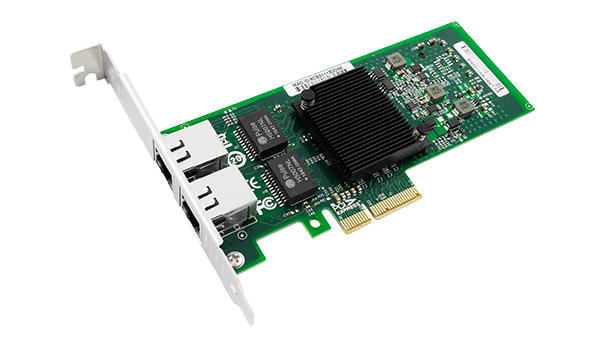

PCIe x4 Dual-port Gigabit Copper Ethernet Network Adapter (Intel Chipset Based)
LREC9702ET is a Gigabit PCIe x4 Ethernet network adapter with double electric port and double optical fiber hybrid, independently developed by Shenzhen Lingrui Electronics Co., Ltd. on the basis of Intel master control scheme, compatible with PCIe x4\x8\x16 channel at the same time. The adapters are designed primarily for use on servers and their application devices, as well as for common servers.
The LREC9702ET uses Intel's dual-port Ethernet MAC+PHY controller, which uses a fully integrated 10/100/1000Base-T Gigabit Ethernet MAC, allowing both ports to be linked at gigabit rates at the same time.
Complete technical details for integration and deployment planning.
| System Support | Windows XP/Vista/7/8/8.1/10 |
|---|
| Bus Type | PCIe v2.0 x4, compatible with x4/x8/x16 |
|---|---|
| Data rate | 10/100/1000MbE |

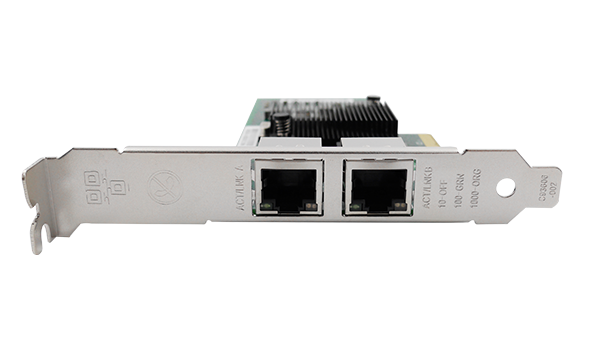

| Connector | 2*1G RJ45 |
| Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az |
| iSCSI | No |
| WoL | No |
| Jumbo Frames | YES |
| DPDK | Yes |
| PXE | Yes |
| FCoE | No |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Size(mm) | 160*120*21 (±1~2mm) |
| Weight(g) | * |
