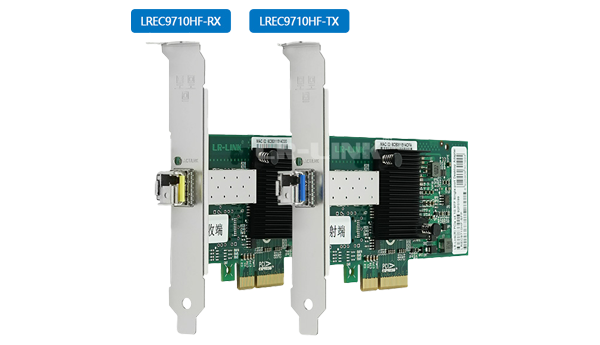

PCIe x4 1G Fiber Uni-directional Server Adapter (Intel I350)
LREC9710HF-TX/RX is used the latest optical fiber One-way transmission technology, effectively guarantee the stability of data transmission, reduce the packet loss rate. Since the one-way transmission characteristics of light, this Ethernet Adapter has not only achieved physical separation between the internal computer network and the external network, but also ensured the data between internal and external networks in real time, reliable, secure One-way transmission. LREC9710HF-TX/RX adapter can be widely used in public security, government systems, military and other security departments as well as used in other confidential computer network.
Complete technical details for integration and deployment planning.
Controller | Intel I350 |
Transmission Rate Per Port | 1000Mbps |
Network Standard Physical Layer Interfaces | 1000BASE-LX: 10Km at 9µm |
Jumbo Frame Support | Up to 9.5 KB |
Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
LED Indicators | Link/Activity LED: Off = No Link; On = Link; Blinking = Activity |
Operating System Support | Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 R2 |
Windows 7 / 8 / 8.1 / 10 | |
Linux SLES 10 / 11 or later | |
Linux Stable Kernel version 2.6.32/3.x/4.x or later | |
VMvare ESX/ESXi 4.x/5.x/6.x or later |
Latest certified drivers for all supported operating systems, ensuring optimal performance and compatibility.
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
