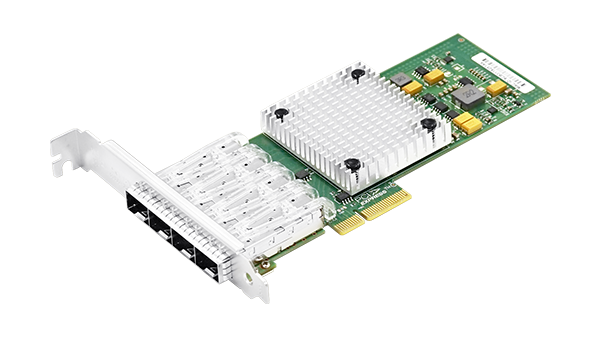

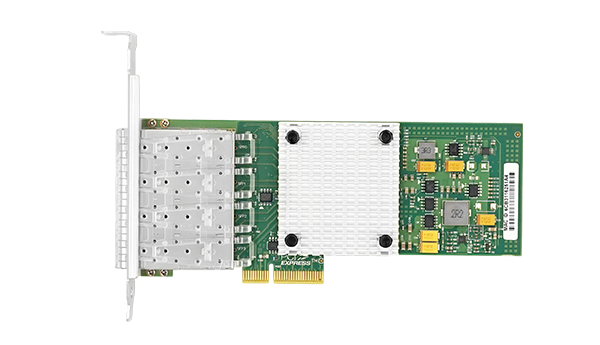

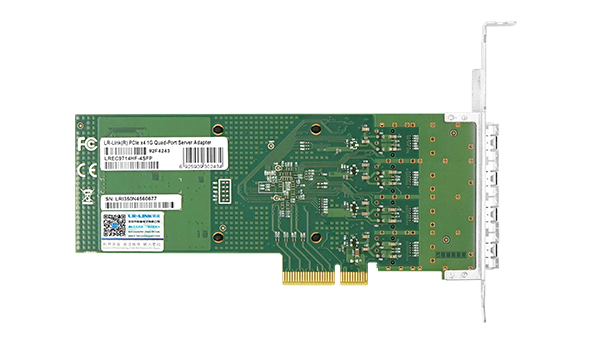

PCIe x4 Quad-port Gigabit SFP Ethernet Network Adapter(Intel I350)
LREC9714HF-4SFP is a PCIe2.1 x4 quad-optical port Gigabit SFP Ethernet network adapter developed by Linkreal CO.,LTD. on the basis of Intel I350 main control program. The adapter is compatible with both PCIe x8 and x16 slots. The adapter is designed for servers and high-end devices, and is optimized for performance so that system I/O is no longer a bottleneck in high-end network applications.The LREC9714HF-4SFP is capable of achieving fault tolerance by bundling and aggregating into a group, and automatically detecting and routing traffic from failed ports to the other members of the same group for uninterrupted communication.The LREC9714HF-4SFP has an integrated hardware accelerator. The 4SFP features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. Host processing technology offloads the gas pedal, freeing up CPU resource utilization to free up more CPU resources for other applications.
LREC9714HF-4SFP is an ideal solution for deploying multiple networks and for deploying critical network applications and environments on high-performance servers.
Complete technical details for integration and deployment planning.
| LED Indicators | 1G |
|---|---|
| ACT | Orange Link + Orange Blink |
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC，CE，RoHS |
| Bracket | Fitted with full height, equipped with low profile |
| Internet Network Adapter | *1 |
| Product Warranty Card | *1 |
| Packaging | Carton + Blister Pack |
Latest certified drivers for all supported operating systems, ensuring optimal performance and compatibility.
Firmware updates, setup guides and documentation to get started quickly.
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
