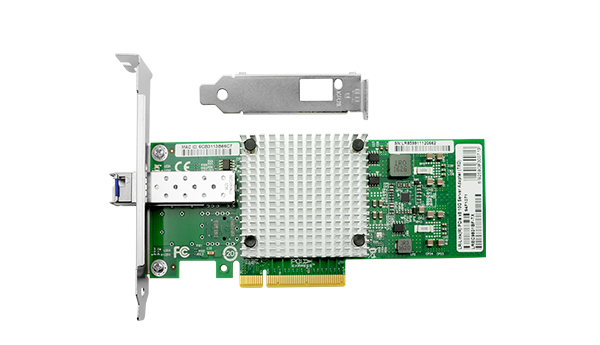

PCIe x8 10G Uni-directional Fiber Server Adapter ()
LREC9801BF-TX/RX 10 Gigabit one-way Transmission Fiber Server Adapters are composed by Transmit network card and receive network card, connecting by one-way LC fiber patch cord. They are the most flexible and scalable Ethernet adapters to meet the demands of data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.
Complete technical details for integration and deployment planning.
Controller | Intel 82599 |
Transmission Rate Per Port | 10G |
Network Standard Physical Layer Interfaces | 10GBASE-LR 10GbE SFP+ DAC |
Jumbo Frame Support | Up to 9.5 KB |
Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
Network Virtualization | VXLAN, MACinUDP, NVGRE, IPinGRE |
LED Indicators | Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 R2 |
Linux Stable Kernel version 2.6.32/3.x/4.x or later | |
<span color:#7030a0;"="" style="font-size: 12px">VMvare ESX/ESXi 4.x/5.x/6.x or later |
