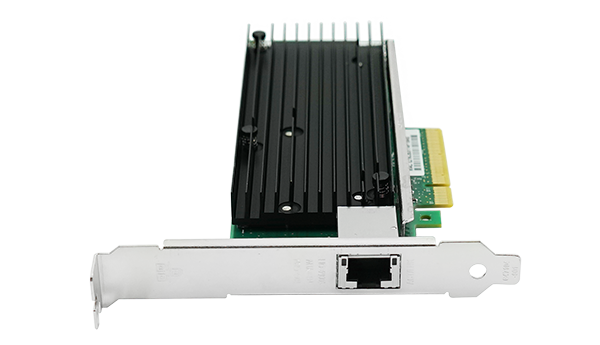

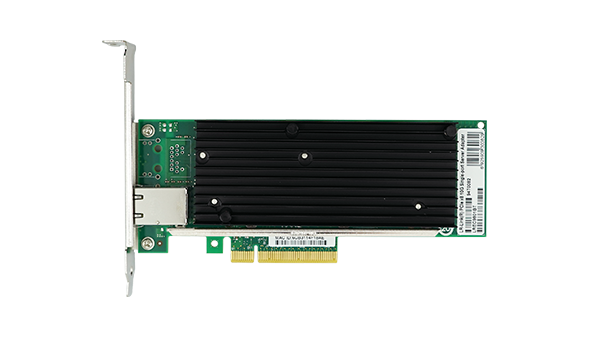

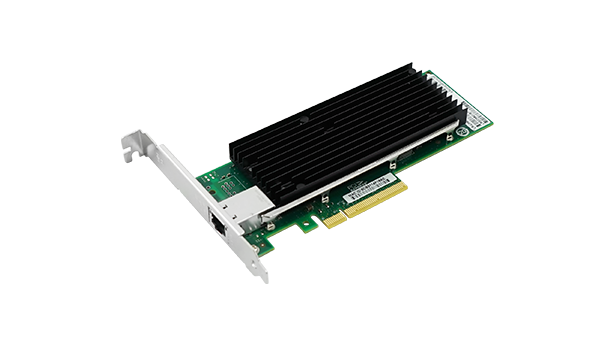

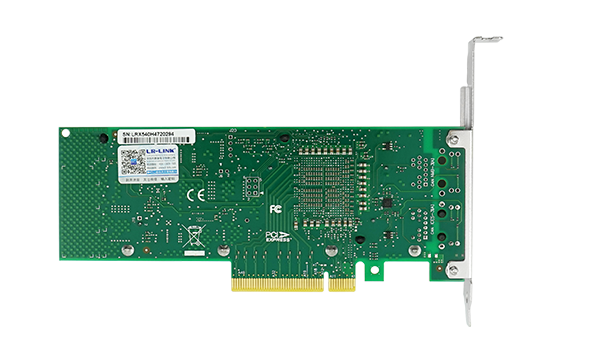

PCIe x8 Single-port 10G Copper Ethernet Network Adapter (Intel X540)
LREC9801BT is a PCIe x8 10Gbps Single Copper Port Ethernet copper Server Adapter based on Intel X540 chipset, and is compatible with PCIe x16 slot.Thisserver adapteroptimizes its performance , making the system I/O no longer be the bottleneck of the network applicationand itcan be used in any PCI Express X8 host device and its master control (Intel X540 10G Ethernet controller) includes two fully integrated EthernetMediaAccessControl (MAC) and two fully integrated 10GBASE-T copper PHYs ports.
The Server Adapter LREC9801BT Simplifies Migration to 10 Gigabit Ethernet(GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).
Complete technical details for integration and deployment planning.
| Jumbo Frame Support | Up to 9.5 KB |
|---|---|
| Operating Temperature | 0℃to 55℃ (32℉to 131℉) |
| Virtualization Technology | VMDq,PCI-SIG SR-IOV,Intel VT-c |
| LED Indicators | 10Gb/s: Green and Green blinking,1Gb/s/100Mb/s: Green and Orange blinking |
| Operating System Support | Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2 |
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
