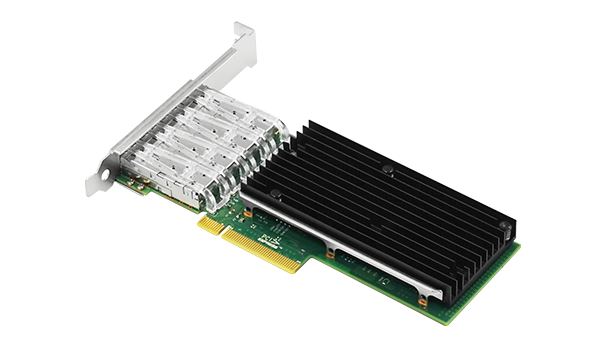

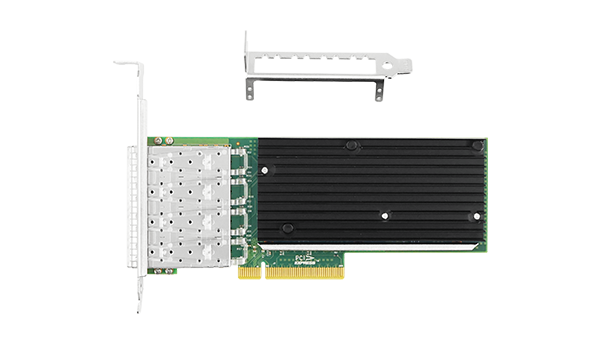

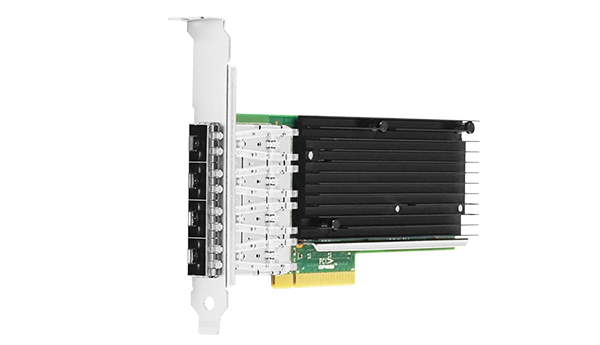

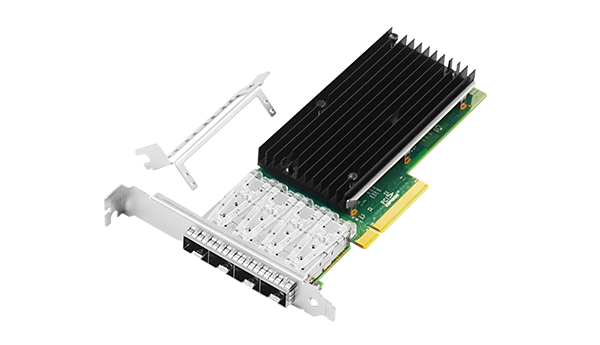

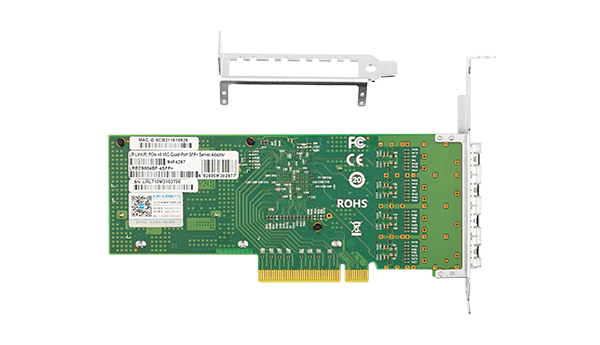

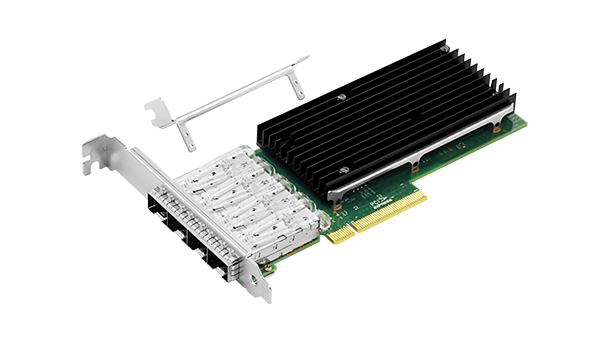

Quad-port 10G SFP+ PCIe 3.0 server adapter based on Intel XL710 for high-performance data centers.
LR-LINK proudly presents the LREC9804BF-4SFP+, a cutting-edge PCI Express x8 Quad-port 10G SFP+ Ethernet server adapter engineered for the demanding needs of modern data centers. Built upon the reliable Intel XL710 chip solution, this adapter provides unparalleled performance for server and network virtualization environments, ensuring that system I/O never becomes a bottleneck for high-end network applications.
Designed for flexibility and resilience, this card supports four independent 10GbE links, allowing for complex network deployments with built-in fault tolerance and redundancy. It effectively balances network loads across multiple CPUs when used with Microsoft Receive Side Scaling or Linux Extensible I/O, while offloading tasks like LSO and GSO to free up valuable CPU resources for other critical applications.
The LREC9804BF-4SFP+ is the ideal choice for deploying multi-network segments in both current and future server markets. Whether for big data computing, cloud infrastructure, or industrial automation, this adapter offers superior performance, comprehensive OS support including Windows Server and Linux distributions, and simplified management via Intel PROSet tools.
Delivers 10Gbps speed per port with Intel XL710 for maximum throughput.
Full SR-IOV and VMDq support for efficient server virtualization environments.
Four SFP+ ports support various fiber types for versatile network deployment.
Built-in fault tolerance ensures uninterrupted communication during failures.
Hardware offloading reduces CPU usage for better application performance.
Supports Windows, Linux, and VMware for seamless integration.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Bus Interface | PCI Express v3.0 x8 (compatible with x16) |
|---|---|
| Data Rate | 10 Gbps per port |
| Connector Type | 4 x SFP+ |
| Fiber Support | 10000Base-SR, 10000Base-LR, 10000Base-Cu |
| Controller | Intel XL710 |
|---|---|
| Architecture | Ethernet MAC+PHY Four-port Controller |
| Virtualization | |
|---|---|
| Offloading | |
| Management | |
| Standards | |
| Jumbo Frames | YES |
| PCB Size | 163 x 55.7 x 1.6 mm |
|---|---|
| Weight | 171 g |
| Bracket Type | Low Profile & Full Height |
| Power Consumption | 7.4W |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| OS Support | Windows 7/8/8.1/10/11, Server 2008-2022, Linux (CentOS/RHEL/Ubuntu), VMware ESXi |
|---|---|
| Compliance | PCI-SIG, IEEE 802.3ae, 802.1AS, 802.1Q, 802.3AD |
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
