FPGA-based 10G single-port network security isolation adapter with flexible transmission modes.

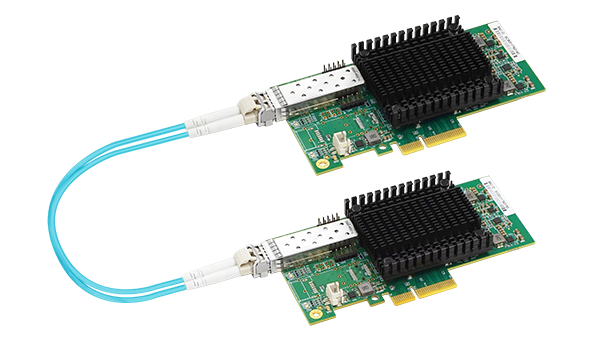

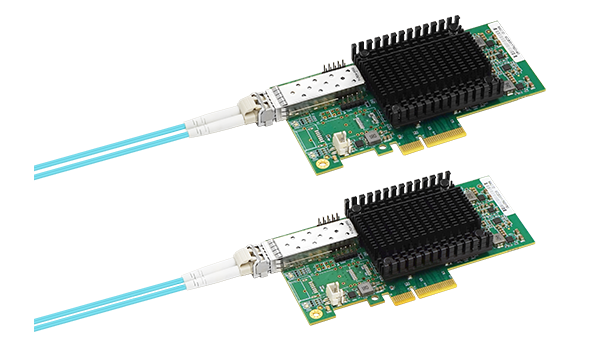

Linkreal presents the LREG1010PF-SFP+, a high-performance FPGA-based network security isolation adapter engineered for critical infrastructure protection. Built on the robust FMP100T8 main controller solution, this PCIe x4 10G single-port adapter ensures reliable data transmission while maintaining strict security protocols.
This adapter offers exceptional flexibility with support for three distinct transmission modes: single receiving, single sending, and bidirectional transceiving. Users can configure these modes via a dedicated configuration tool to adapt to specific application scenarios, whether in financial systems, data centers, or military fields.
Designed for seamless integration, the LREG1010PF-SFP+ is compatible with PCIe x8 and x16 slots and provides Linux drivers for easy platform adaptation. It delivers up to 10Gb/s per direction (20Gb/s bidirectional) over optical fiber, ensuring stable and secure connectivity for demanding network security requirements.
FPGA-based hardware isolation for secure data transmission in sensitive environments.
Configurable single send, receive, or bidirectional modes for diverse application needs.
Delivers 10Gbps unidirectional or 20Gbps bidirectional throughput over optical fiber.
Powered by FMP100T8 controller for customizable and robust network processing.
Native PCIe 2.0 x4 interface, fully compatible with x8 and x16 slots.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe 2.0 x4 (compatible with x8/x16) |
|---|---|
| Data Rate | 10Gbps |
| Connector | 1x 10G SFP+ |
| Cable Medium | Optical Fiber |
| Controller | FMP100T8 |
|---|---|
| Technology | FPGA |
| Transmission Protocol | Private Protocols |
| Unidirectional Speed | 10Gb/s |
|---|---|
| Bidirectional Speed | 20Gb/s |
| Transmission Modes | |
| LED Indication | Green Link + Orange Link (10Gbps/Transfer Status) |
| PCB Size | 129.2 x 68.94 x 1.6 mm |
|---|---|
| Power Supply | PCIe Bus Powered |
| Power Consumption (Min) | 3.984W |
| Power Consumption (Max) | 5.16W |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Certifications | |
|---|---|
| Supported OS | CentOS 7.9 (Linux) |
