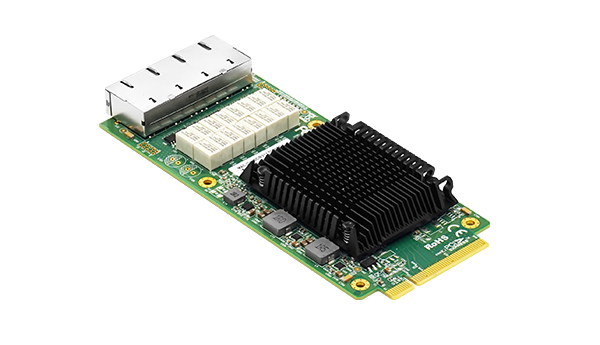

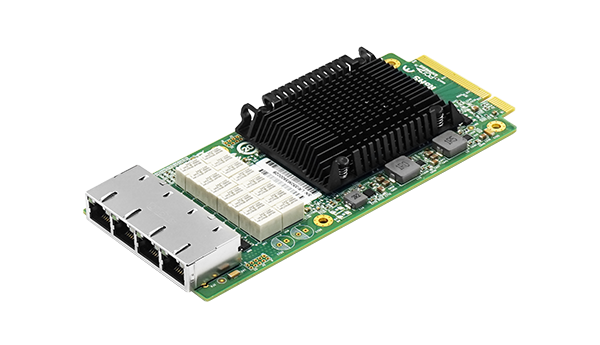

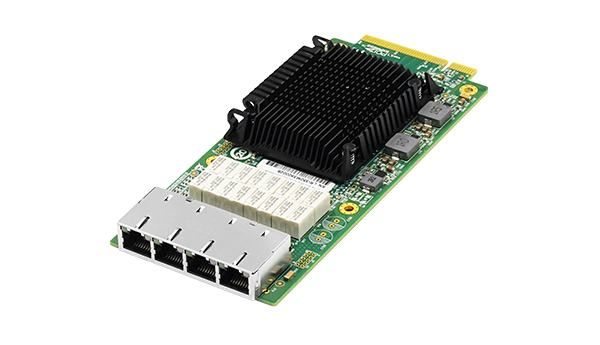

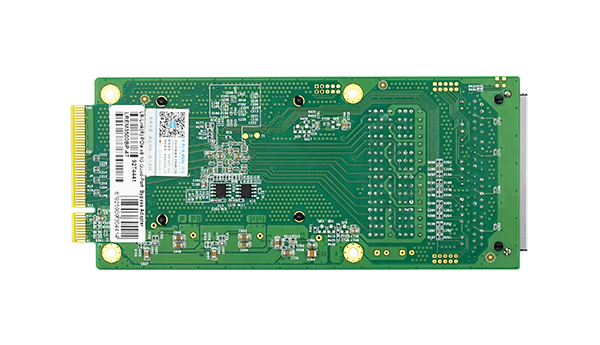

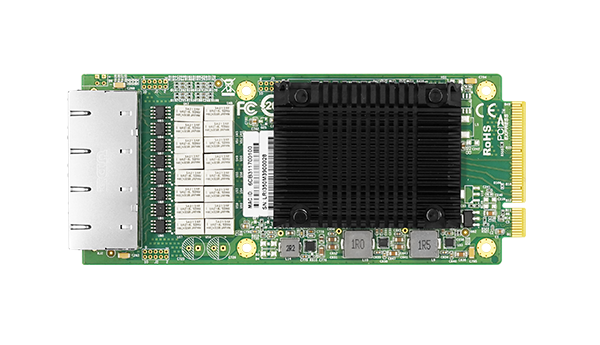

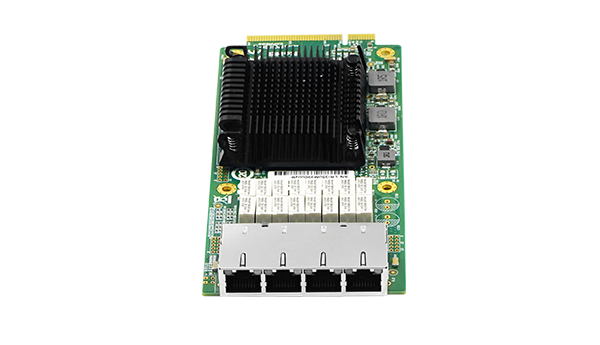

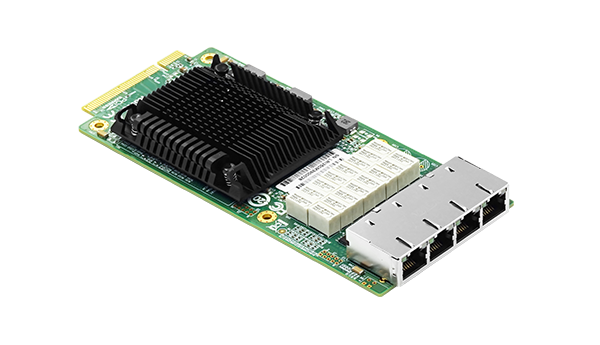

LREM3500BP-4T
PCIe x8 1G Quad-port Ethernet Network Adapter (Intel I350)

LREM3500BP-4T is a PCI Express x8 (default non-standard PCIe definition) four-port mezzanine Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control program The adapter structure is customized for use by Lianrui customers. The product is used for data transmission such as firewalls and gatekeepers, and is suitable for non-stop operation around the clock.

The Intel I350 main control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent Gigabit channel and works independently of each other.

Support the traditional copper cable connection of 10/100 / 1000Mbps at the application site. In the network connection, it can allow four network ports to work in full-duplex working mode at the same time, and support network port aggregation to increase network traffic bandwidth or any network port for aggregation. It can save PCI Express channel resources in the space of chassis such as firewalls and gatekeepers.

This product is equipped with two-way bypass function, and the Bypass program for configuring the host greatly improves the practicality of the product.
