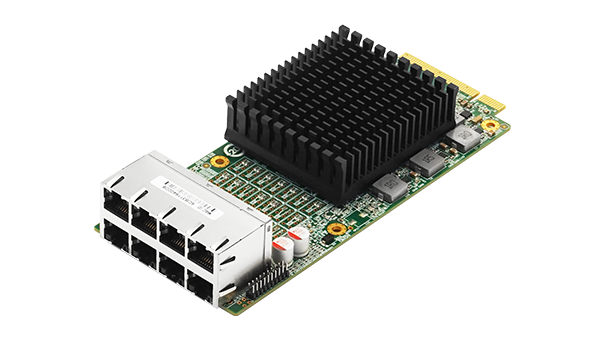

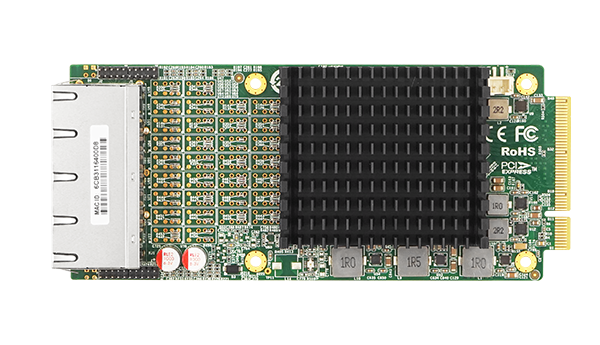

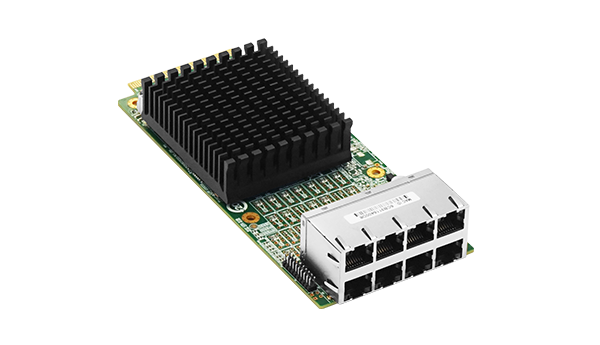

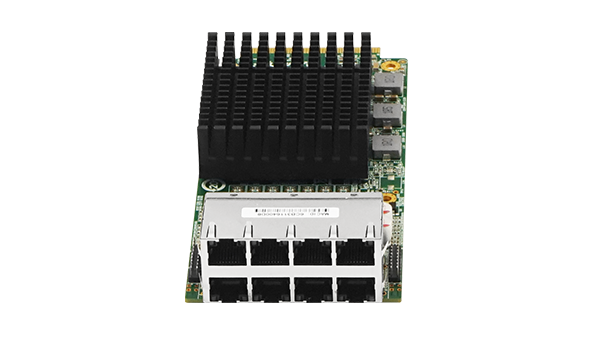

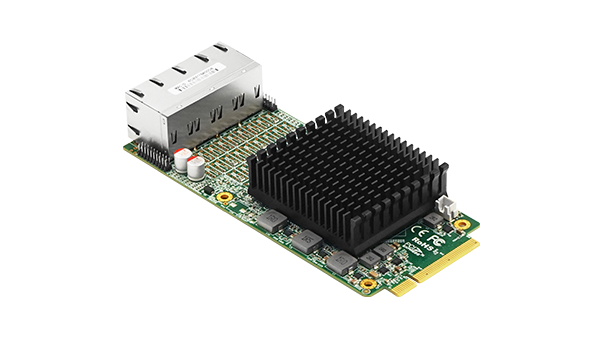

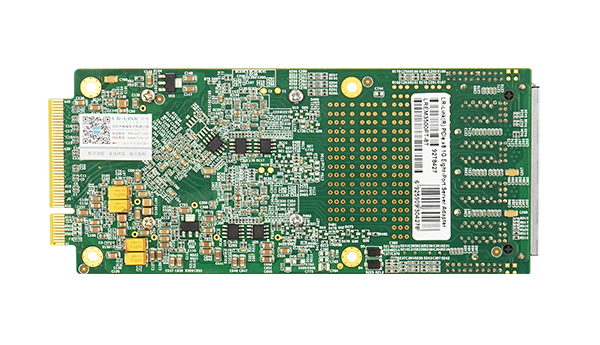

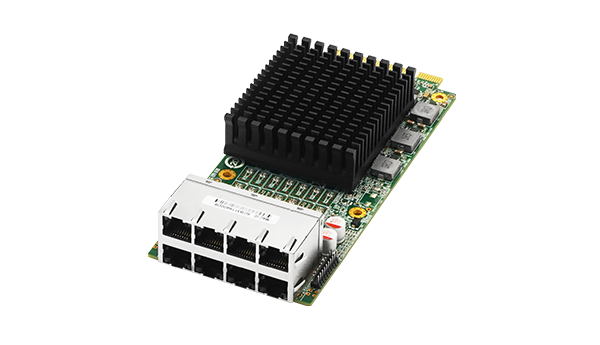

PCIe x8 1G Eight-port bypass Adapter(Intel I350)
LREM3500PT-8T is a PCI Express x8 interface 8-port BYPASS sandwich gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co, Ltd. on the basis of Intel I350 master control scheme. The adapter is a sandwich structure used for data transmission such as firewall and network gate, and is suitable for non-stop operation around the clock.
Intel I350 master control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent gigabit channel network port, which works independently of each other.
It supports 10/100/1000Mbps link rate work on the application site. In gigabit Ethernet connection, eight network ports can work in full duplex mode at the same time, and eight network ports can be converged to increase network traffic bandwidth or any network port can be converged. PCI Express channel resources can be saved in the space of 1U chassis.
Complete technical details for integration and deployment planning.
| Power consumption (max) | 15.1W |
|---|---|
| Connector | 8* 8-Pin RJ45 (double row) |
| Data rate supported per port | 10/100/1000Mbps |
| Power supply | PCIe |
| Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.1Q VLANsIEEE 802.3x IEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| PXE | No |
| DPDK | Yes |
| WoL | No |
| iSCSI | No |
| Jumbo frame t | Yes |
| FCoE | No |
