PCIe x8 Dual-port 10G SFP+ Ethernet Network Adapter(Intel 82599 Based)

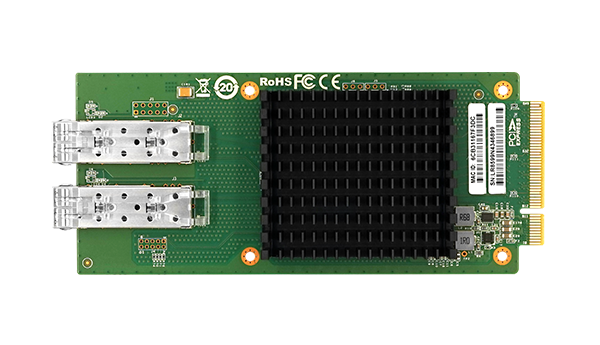

LREM5911PF-2SFP+ is Linkreal CO.,LTD. to create a based on the Intel 82599 master program based on the development of a PCIe x8 dual-optical port cross-plugged 10G SFP + Ethernet network adapter, the adapter structure belongs to the use of cross-plugged structure, the product is used in firewalls, network gates, and other data transmission, to adapt to the round-the-clock non-stop operation. The adapter structure is a cross-patch structure.
It adopts Intel 82599 main control chip, which has wide system compatibility and stability, and each network port has an independent 10Gb channel, working independently of each other. Supporting 10000Mbps SR/LR link work at the application site, customers can flexibly use a variety of 10Gb fiber modules with different transmission distances to suit the workplace. In the 10 Gigabit Ethernet network connection allows two fiber optic ports to work in full-duplex mode at the same time, as well as support for two ports for aggregation to increase the network traffic bandwidth or any of the ports to be used for aggregation. It can save PCI-Express channel resources in the space of firewalls, network gates and other chassis.
Complete technical details for integration and deployment planning.
| LED Indicators | 1G |
|---|---|
| ACT | Orange Link + Green Blink |
| 10G | LINK |
| ACT | Green Link + Green Blink |
| Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC，CE，RoHS |
| Bracket | * |
| Internet Network Adapter | *1 |
| Product Warranty Card | *1 |
| Packaging | Carton + ESD bag |
