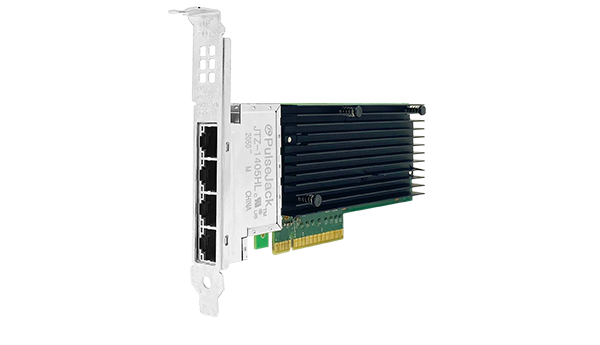

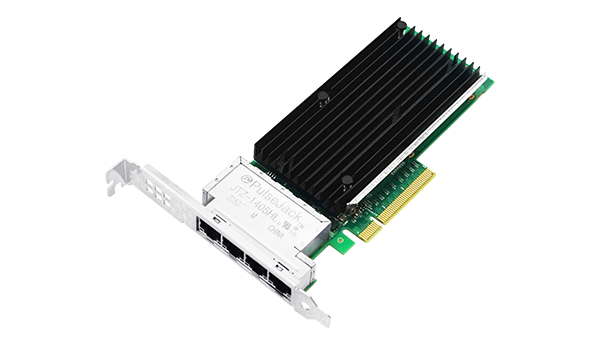

PCIe x8 Quad-port 10G Copper Ethernet Network Adapter (Intel X710)
LRES1013PT is a 4-port copper 10G ethernet PCIe x8 ethernet network adapter independently developed by Linkreal Co., Ltd. on the basis of Intel Intel X710 series controller, compatible with PCIe x16 channel at the same time. The adapters are designed primarily for use on servers and their application devices, as well as for common servers.
The LRES1013PT was developed based on Intel's quad-port ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0G NBAE-T support with adaptive link rates to the previous generation of Gigabit ports. In a variety of rate adaptive but also greatly reduce the power consumption to bring better performance.
PCIe x8 Quad-port 10G Copper Ethernet Network Adapter: LRES1013PT
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v3.0 x8，compatible with x16 |
|---|---|
| Data rate per port | 100/1000MbE/2.5/5/10GbE |
| Connector | 4*10G RJ45 |
| Protocol Support | IEEE 802.3an 10GBASE-T EthernetIEEE 802.3bz 2.5/5GBASE-T EthernetIEEE 802.3ab 1000BASE-T EthernetIEEE 802.3u 100BASE-TX EthernetIEEE 802.3az - Energy Efficient EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588 |
| iSCSI | No |
| WoL | No |
| Jumbo Frames | YES |
| DPDK | Yes |
| PXE | Yes |
| FCoE | No |
