Single-port 10G SFP+ PCIe x4 network adapter based on Intel 82599 controller for high-performance server connectivity.

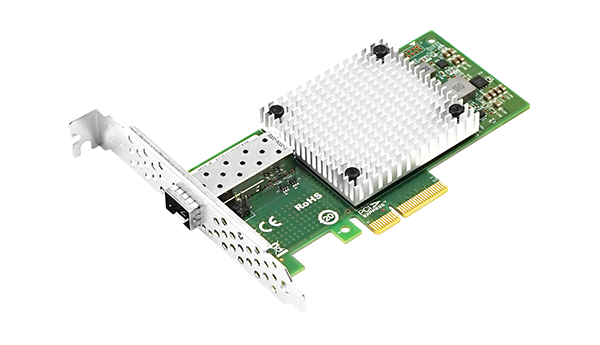

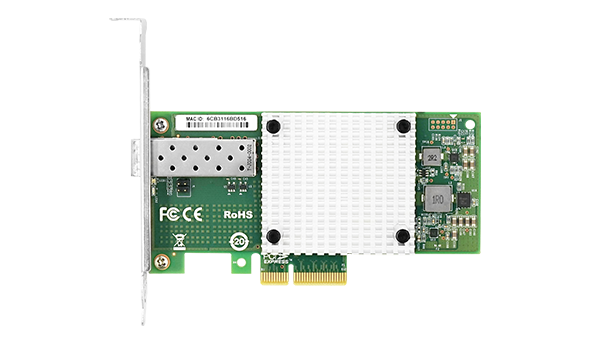

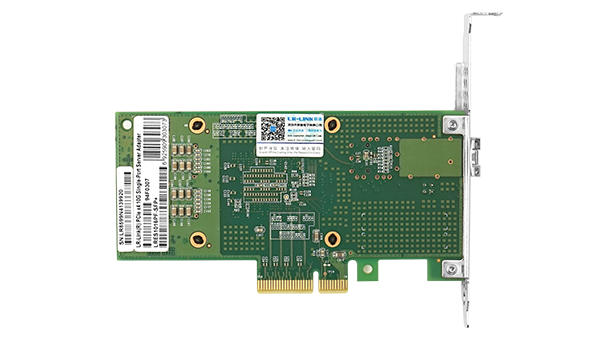

LR-LINK presents the LRES1016PF-SFP+, a high-reliability single-port 10G SFP+ Ethernet network adapter built on the industry-standard Intel 82599 master solution. This PCIe x4 card is engineered to manage Ethernet MAC and PHY layers while providing significant traffic management capabilities through hardware acceleration of compute tasks such as TCP segmentation and offloads.
Designed for modern data center demands, this adapter enhances scalability with smart queuing optimized for multi-core processors and supports Intel Virtualization Technology (VT-c). Features like Virtual Machine Device Queuing (VMDq) and Virtual Machine Direct Connect (VMDc) significantly reduce I/O bottlenecks, lower latency, and improve overall system performance in virtual server environments.
The LRES1016PF-SFP+ also facilitates unified networking by supporting iSCSI, FCoE, and PXE boot protocols, allowing SAN and LAN traffic to share existing infrastructure without dedicated adapters. With support for SR-IOV, Jumbo Frames, and IEEE 1588 precision time protocol, it ensures robust, low-latency connectivity essential for enterprise servers and cloud computing applications.
Delivers 10Gbps throughput via single SFP+ port for fast data transfer.
Powered by Intel 82599 controller for stable and efficient network performance.
Supports VT-c, VMDq, and SR-IOV to optimize virtual server environments.
Reduces CPU load with TCP/IP offload, checksums, and segmentation engines.
Enables network booting via PXE, iSCSI, and FCoE protocols.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe v2.0 (5.0GT/s) x4; compatible x8, x16 |
|---|---|
| Data Rate per Port | 10Gbps |
| Connector | 1*10G SFP+ |
| Cable Medium | Fiber Optics |
| Cable Type | 10GBase-SR, 10GBase-LR, 10GBase-Cu |
| Controller | Intel 82599 |
|---|---|
| Power Supply | PCIe |
| SR-IOV | YES |
|---|---|
| VMDq | YES |
| PXE | YES |
| iSCSI | YES |
| FCoE | YES |
| DPDK | YES |
| TOE (TCP/IP Offload Engine) | YES |
| RSS | YES |
| JumboFrames | YES |
| UEFI | YES |
| IEEE 1588 | YES |
| EEE (Energy Efficient Ethernet) | YES |
| WoL | NO |
| Bracket Height | Low Profile & Full Height |
|---|---|
| PCB Size (LxW x H) | 68.9 x 131.54 x 1.6 mm |
| Package Size (LxW x H) | 222 x 147 x 28 mm |
| Power (max) | 4.80W |
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
|---|---|
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
|---|
