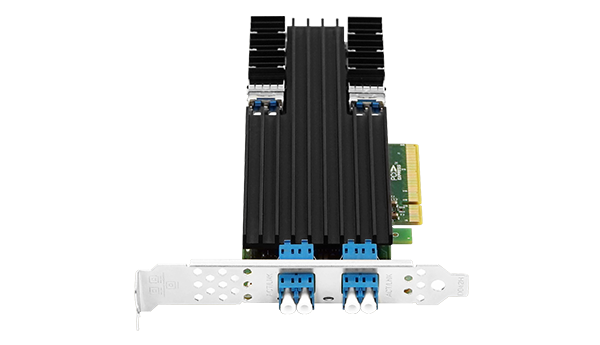

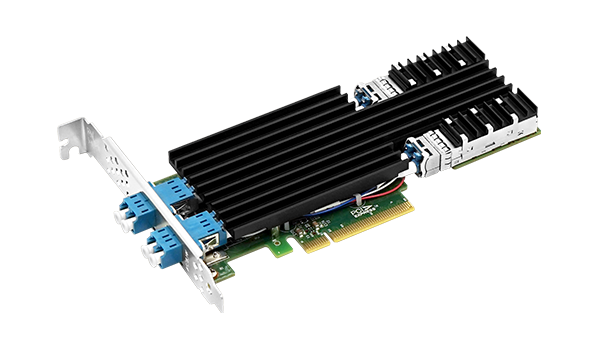

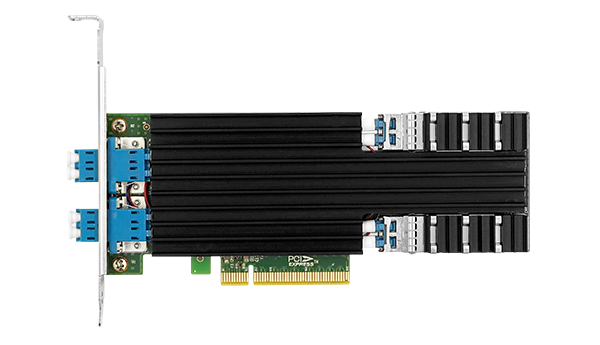

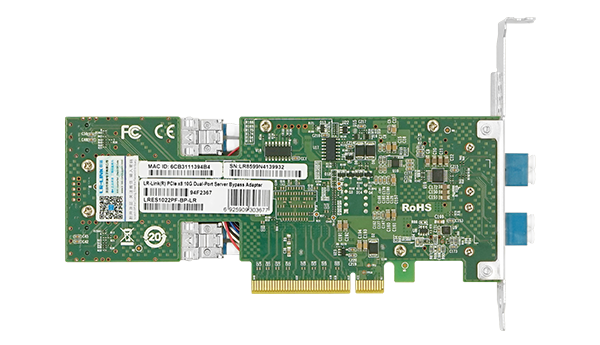

PCIe x8 Dual-port 10G Single mode LR Bypass Ethernet Network Adapter (Intel 82599 Chip Based)
LRES1022PF-BP-LR is a PCIe V2.0x8 dual-port 10G fiber single-path bypass ethernet network adapter developed by Shenzhen Linrui Electronics Co., Ltd. based on Intel 82599 chip. The network adapter has two fully integrated 10G ethernet media Access controller ports. In addition to managing ethernet MAC and PHY layers, it also manages the traffic of packets that pass through it. The controller implements hardware acceleration to share tasks for server hosts, such as TCP/UDP/IP verification, uninstallation, computing tasks, and TCP segmentation.
LRES1022PF-BP-LR adopts Intel master control with wide compatibility and performance assurance, which can achieve efficient work of conventional dual-port 10G ethernet and bypass work.
It can be widely used on network devices such as gateways and firewalls with high throughput, and can reduce application delay and improve throughput by using program queue in practical operation.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.0 x8 |
|---|---|
| Data rate | 10GbE |
| Connector | 2*10G SFP+ |
| Protocol Support | IEEE 802.3ae 10GBASE-X EthernetIEEE 802.3x Full Duplex and flow controlIEEE 802.1ASIEEE 802.1Q VLANIEEE 802.3ADIEEE 1588IEEE 802.3az - Energy Efficient Ethernet |
| iSCSI | Yes(Can be set up) |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | No |
| FCoE | No |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
