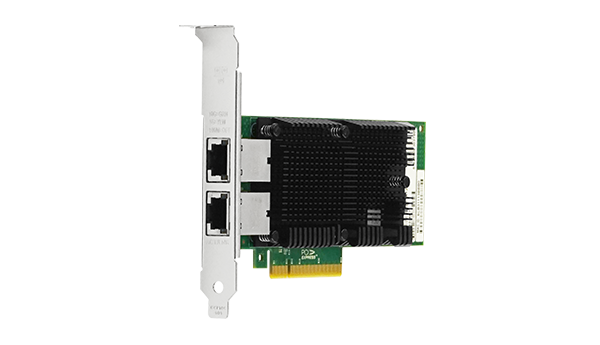

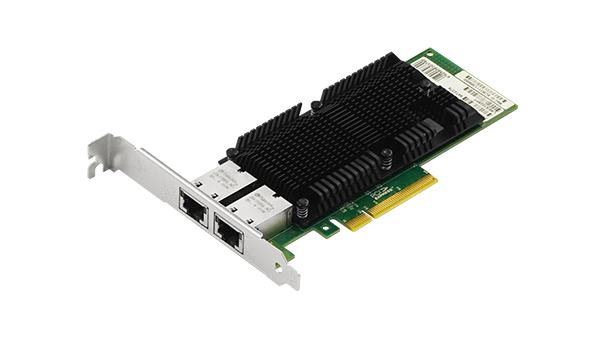

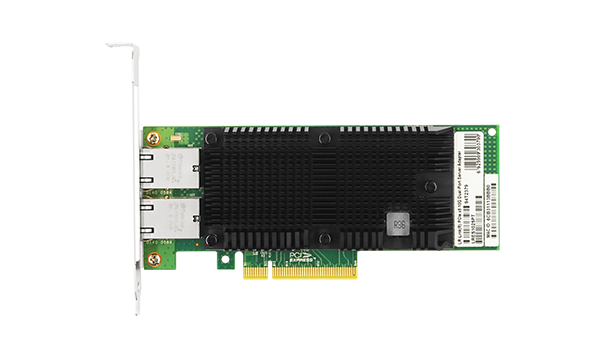

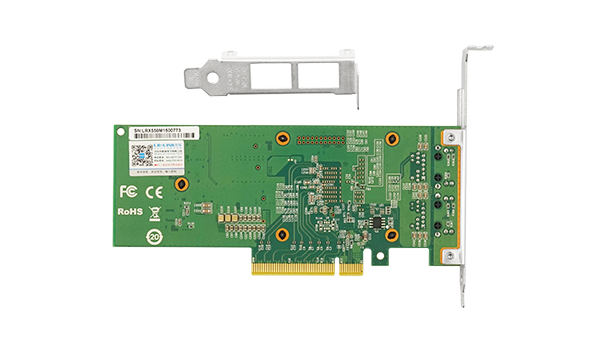

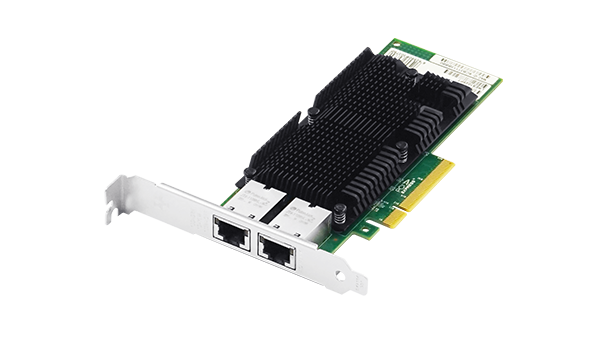

PCIe x8 Dual-port Copper 10G Ethernet Network Adapter (Intel X550)
LRES1025PT is a dual-port copper 10G ethernet network adapter independently developed by Linkreal Co., Ltd based on Intel X550. It adopts PCIe v2.1 x8 bus and is compatible with PCIe x16 slot.
LRES1025PT is a single chip with double port 100M/1/2.5/5/10GbE Nbase-T multiple rate, It can meet all kinds of flexible connections required by all networks.
The LRES1025PT supports auto-negotiation between 100MbE, 1GbE & 10GbE to provide smooth transitions & easy migration to 10GbE rate compatibility, and can also be used in 2.5/5.0G network environments. CAT6 and CAT6A cabling are used as standard cabling in many data centers. LRES1025PT has advantages of low cost and easy deployment in network architectures ranging from 1m to 100m.
Jumbo Frame Transfer, No Frame Loss: PCIe x4 dual-port 10G Ethernet Network Adapter LRES1042PT
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 (8.0GT/s) x8; compatible with x16 |
|---|---|
| Data rate | 100M/1/2.5/5/10Gbps |
| Connector | 2*10G RJ45 |
| Power Supply | PCIe |
| Protocol Support | IEEE 802.3an 10GBASE-T EthernetIEEE 802.3bz NBASE-T* technology (2.5 & 5.0GbE)IEEE 802.3ab 1000Base-T EthernetIEEE 802.3u 1000Base-T EthernetIEEE 802.1Qaz Enhanced Transmission SelectionIEEE 802.3x Full Duplex and flow controlIEEE 802.1ASIEEE 802.1Q VLANIEEE 802.3ADIEEE 1588IEEE 802.3az - Energy Efficient Ethernet |
| PXE | Yes |
| DPDK | Yes |
| WoL | No |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| SR-IOV | Yes |
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
