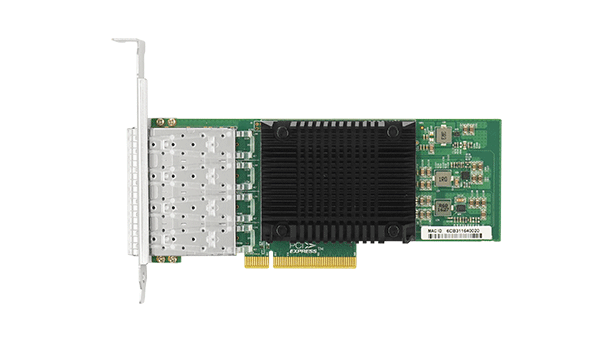

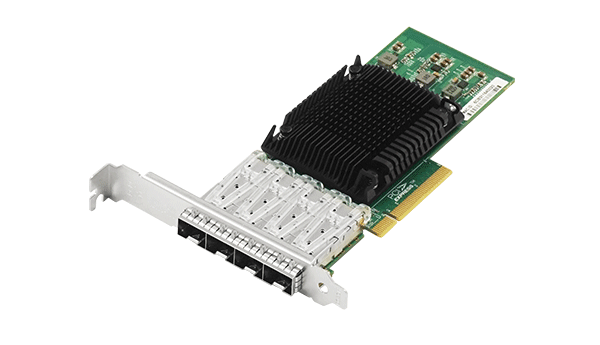

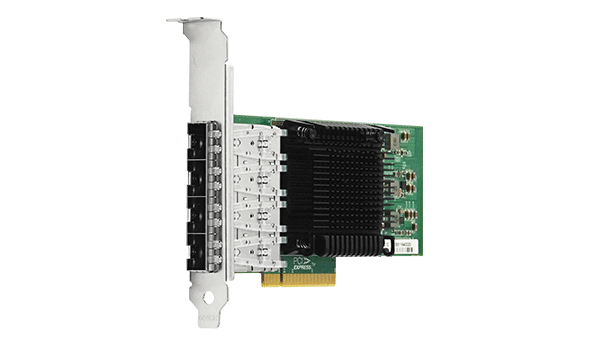

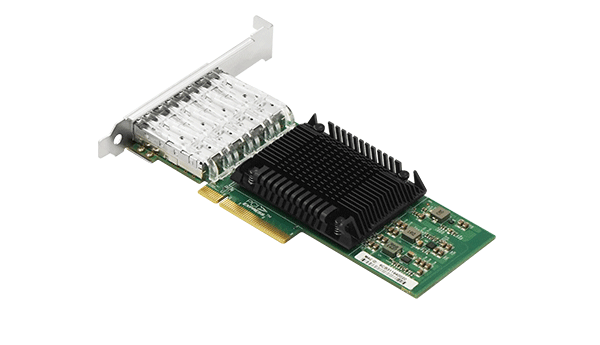

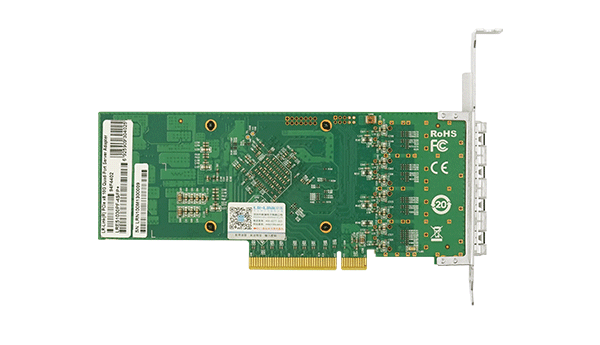

Quad-port 10G SFP+ PCIe 3.0 network adapter based on Mucse RNP N10 chip for servers and security.
LR-LINK presents the LRES1030PF-4SFP+, a cutting-edge quad-port 10G SFP+ Ethernet network adapter engineered for demanding data center and industrial environments. Powered by the proprietary Mucse RNP N10 controller, this solution offers full intellectual property independence, breaking reliance on foreign monopolies while ensuring superior information security and performance.
Designed for seamless integration, the adapter utilizes a PCI Express v3.0 x8 bus architecture, which is fully backward compatible with PCIe 2.1 and forward compatible with PCIe 3.0 x16 slots. It delivers a total bandwidth of 40Gbps across four ports, supporting various fiber types including 10GBASE-SR, LR, and Copper variants, making it ideal for high-speed networking in PC servers and security appliances.
Our engineering team has optimized this card to support advanced virtualization functions such as VEB, VLAN, QinQ, VxLAN, and NVRGE, alongside Jumbo Frames up to 9.6KB. With comprehensive protocol support including IEEE 802.3 standards and Energy Efficient Ethernet (EEE), the LRES1030PF-4SFP+ ensures reliable, low-latency connectivity for modern cloud computing and AI infrastructure.
Four independent 10G SFP+ ports delivering high-speed connectivity for servers.
Powered by Mucse RNP N10 for enhanced security and supply chain independence.
High-speed PCIe 3.0 x8 interface compatible with x16 slots for maximum bandwidth.
Supports VEB, VLAN, QinQ, VxLAN, and NVRGE for efficient cloud deployment.
Features IEEE 802.3az EEE technology to reduce power consumption during idle.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v3.0 x8 (Compatible with PCIe x16) |
|---|---|
| Data Rate | 10 Gigabit |
| Connector | 4 x 10G SFP+ |
| Media Support | 10GBASE-SR, 10GBASE-LR, 10GBASE-Cu, 1GBASE-SR, 1GBASE-LR, 1GBASE-Cu |
| Controller | Mucse RNP N10 |
|---|---|
| MAC/PHY | Integrated Gigabit Ethernet MAC + PHY |
| Virtualization | |
|---|---|
| Jumbo Frames | |
| IPsec/MACSec | |
| Power over Ethernet | |
| PXE | |
| DPDK | |
| WoL | |
| iSCSI |
| PCB Size | 162.3 x 68.5 x 1.6 mm |
|---|---|
| Baffle Height | Half-height & Full-height |
| Power Consumption | 9.5W |
| Operating Temperature | 0°C to 70°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Maximum 90% non-condensing at 35°C |
| Compliance | FCC, CE, RoHS |
|---|
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
