Domestic Mucse-based quad-port Gigabit PCIe network adapter for secure, high-density server connections.

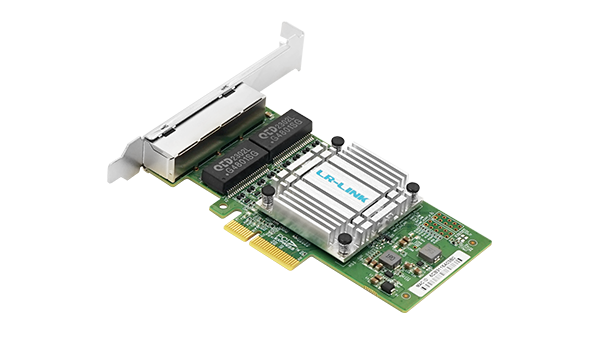

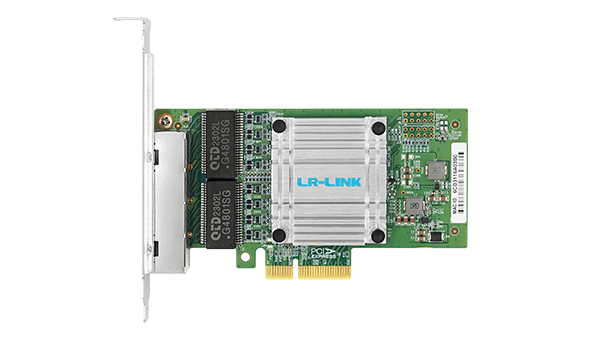

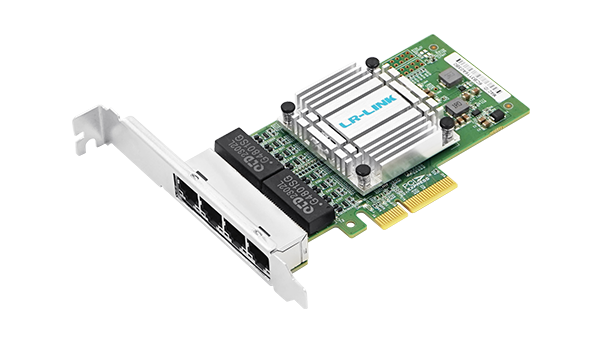

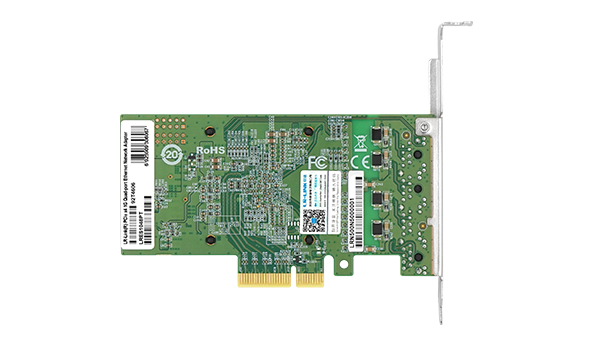

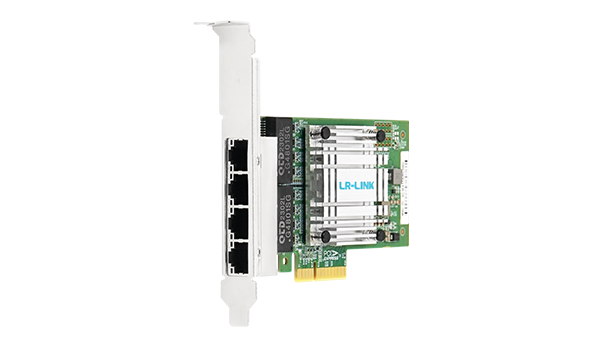

LR-LINK presents the LRES1048PT, a robust quad-port Gigabit Ethernet network adapter engineered for high-density and high-throughput networking environments. Built upon the domestically developed Mucse RNP N500L-AM4 main control solution, this card ensures supply chain independence and compliance with national information security standards.
Equipped with four RJ45 ports supporting 10/100/1000Mbps auto-negotiation, the adapter leverages the PCIe 2.0 x4 interface for efficient data transfer. Key features include hardware protocol acceleration, IEEE 1588 PTP clock synchronization for precise timing, and comprehensive driver support including DPDK and SR-IOV, making it ideal for virtualized cloud computing and industrial automation applications.
Designed for reliability in demanding conditions, the LRES1048PT operates within an extended temperature range of -40°C to 85°C. It supports major operating systems such as Ubuntu, CentOS, and various domestic Linux distributions like Deepin and NeoKylin. This adapter provides a stable, secure, and high-performance networking solution for data centers and enterprise servers requiring independent controllability.
Built on Mucse RNP N500L-AM4 for independent controllability and national security compliance.
Four Gigabit RJ45 ports providing high-density connectivity for servers and data centers.
Supports IEEE 1588 PTP for accurate clock synchronization in critical network applications.
Enables SR-IOV and DPDK support for enhanced performance in virtualized cloud environments.
Operates reliably in extreme temperatures from -40°C to 85°C for harsh industrial settings.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe 2.0 x4 |
|---|---|
| Port Configuration | Quad-port |
| Connector Type | 4x RJ45 |
| Data Rate per Port | 10/100/1000 Mbps |
| Cable Medium | Copper |
| Controller | Mucse RNP N500L-AM4 |
|---|---|
| RSS Queues | 8 queues per port |
| Jumbo Frame Max | 9.5KB |
| Hardware Acceleration | Yes |
| Power Consumption (Min) | 1.836W |
| Power Consumption (Max) | 3.384W |
| IEEE 1588 PTP | Yes |
|---|---|
| SR-IOV | Yes |
| PXE Boot | Yes |
| DPDK Support | Yes |
| WoL (Wake-on-LAN) | Yes |
| UEFI Support | Yes |
| Energy Efficient Ethernet | Yes (IEEE 802.3az) |
| Bracket Height | Low Profile & Full Height |
|---|---|
| PCB Size | 125*68.8*1.6 mm |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing |
| Certifications | FCC, CE, RoHS |
|---|---|
| OS Support | Ubuntu, CentOS, RHEL, Deepin, NeoKylin, Galaxy Unicorn, etc. |
