Quad-port 5G Ethernet adapter based on Aquantia AQC111C for industrial vision inspection.

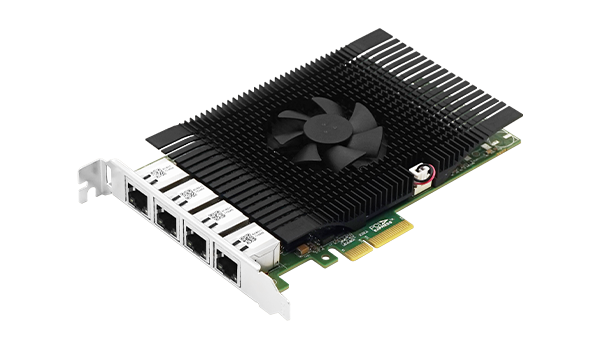

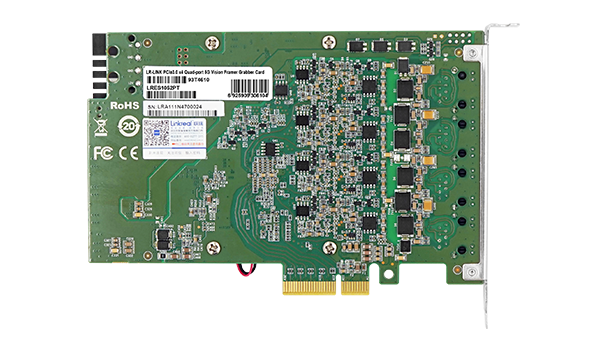

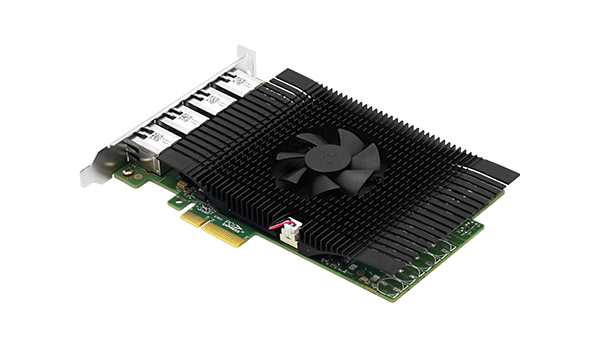

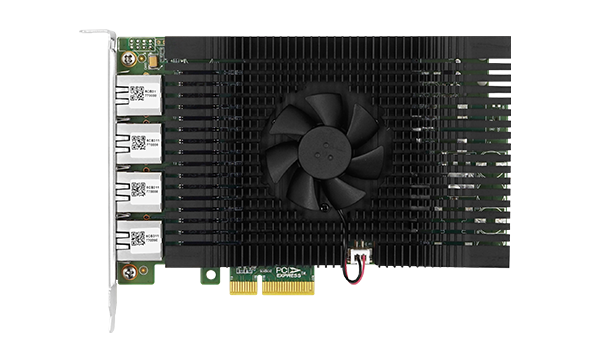

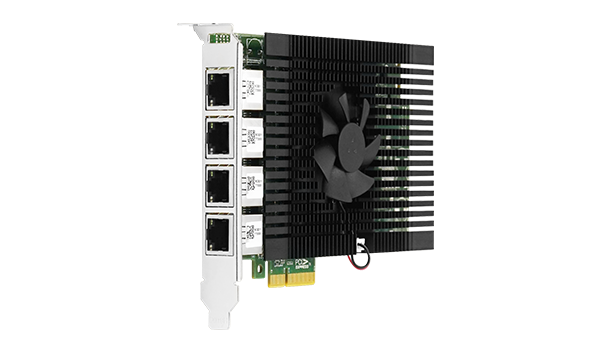

LR-LINK presents the LRES1052PT, a specialized PCIe 3.0 x4 Quad-port 5G Vision Framer Grabber Card designed for demanding industrial applications. Built on the robust Aquantia AQtion AQC111C main controller solution, this card delivers exceptional performance in data transmission, network bandwidth, and low latency for small packet processing.
This high-performance 4-electrical port adapter is fully compatible with PCIe x8 and x16 slots, making it versatile for various industrial computer installations. It supports network rate adaptation across 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps, ensuring seamless integration with existing infrastructure while supporting jumbo frames up to 16KB for enhanced throughput.
Engineered for stability in harsh environments, the LRES1052PT allows simultaneous connection to four 5GigE industrial cameras. With operating temperatures ranging from 0°C to 70°C and comprehensive ESD protection, it meets the rigorous demands of industrial field visual inspection equipment and fast mobile Ethernet data transmission systems.
Supports up to 5Gbps per port with rate adaptation for optimal performance.
Four independent RJ45 ports for connecting multiple industrial cameras simultaneously.
Robust design with wide temperature range and ESD protection for harsh environments.
Optimized for fast mobile Ethernet data transmission and small packet processing.
Integrates PCIe, MAC, and PHY to minimize power consumption and complexity.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe v3.0 (8.0GT/s) x4; compatible x8 x16 |
|---|---|
| Connector | 4*RJ45 |
| Data Rate per Port | 100Mbps; 1Gbps; 2.5Gbps; 5Gbps |
| Cable Medium | Copper CAT-5/5e/6/6e/7 |
| Controller | Aquantia AQtion AQC111C |
|---|---|
| Integration | PCIe, MAC, and PHY integrated |
| PXE | YES |
|---|---|
| MDI/MDI-X | YES |
| JumboFrames | YES |
| JumboFrame(max) | 16KB |
| WoL | NO |
| IEEE1588 | NO |
| SR-IOV | NO |
| Bracket Height | Full Height |
|---|---|
| PCB Size | 156.7x104.37 x1.6 mm |
| Power (min) | 4.44W |
| Power (max) | 20.76W |
| Power Supply | PCIe |
| Operating Temperature | 0℃ to 70℃ |
|---|---|
| Storage Temperature | -40 ℃ to 85 ℃ |
| Storage Humidity | Maximum: 90% non-condensing at 35 ℃ |
| ESD Contact Discharge | ±6KV |
| ESD Air Discharge | ±8KV |
| Lightning Surge Test | ±4kV common mode |
| Certification | FCC, CE, RoHS |
|---|
