Quad-port 10G Ethernet network adapter for industrial vision inspection and high-speed data transmission.

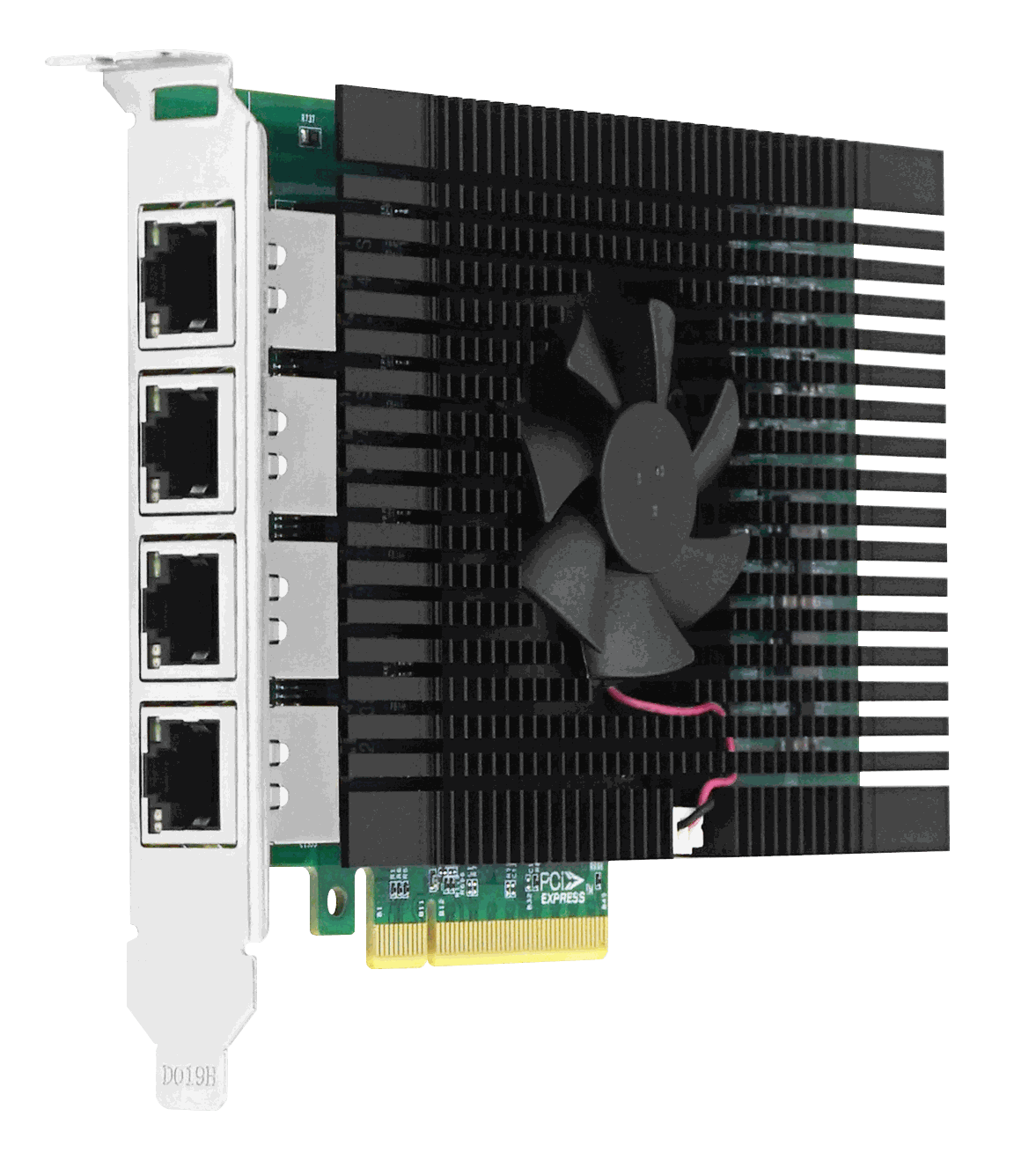

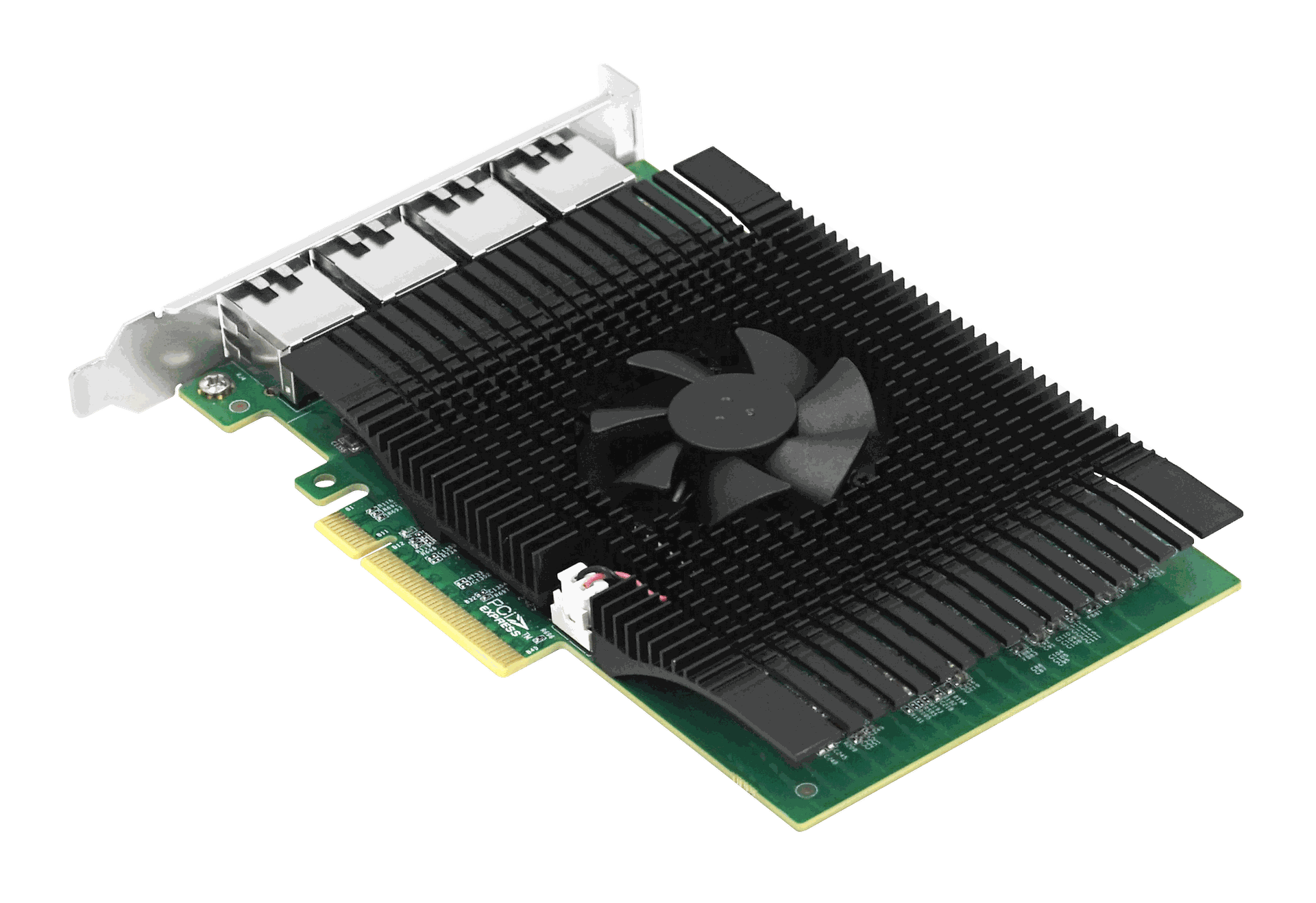

LR-LINK presents the LRES1053PT, a specialized PCIe 3.0 x8 quad-port 10G Ethernet network adapter engineered for demanding industrial environments. Built on the robust Aquantia AQtion AQC113 host controller solution, this card delivers exceptional performance in data transmission speed, network bandwidth, and packet processing efficiency.
Ideally suited for industrial field vision inspection equipment and fast mobile Ethernet data transmission systems, the LRES1053PT allows users to connect four 10GigE industrial cameras simultaneously while maintaining stable operation within standard industrial control machine installations. Its support for JumboFrames up to 16KB ensures efficient handling of large data packets typical in machine vision tasks.
The adapter features comprehensive protocol support including IEEE 802.3ae, 802.1Q VLAN, and precise time synchronization via IEEE 1588 PTP. With compatibility for various operating systems such as Windows, Linux distributions (Ubuntu, CentOS, RHEL), and domestic OS like Kylin and NeoKylin, it offers versatile integration capabilities for global industrial automation and AI vision projects.
Supports up to 10Gbps data rate with flexible 10M-10G auto-negotiation for optimal bandwidth.
Four independent RJ45 ports enable simultaneous connection to multiple industrial cameras or devices.
Designed for harsh environments with wide temperature range and stable performance for vision inspection.
Integrated IEEE 1588 PTP support ensures accurate time synchronization for distributed industrial systems.
Full support for VLAN, JumboFrames, and PXE/UEFI booting for seamless enterprise integration.
Complete technical details for integration and deployment planning.
| Model | LRES1053PT |
|---|---|
| Bus Type | PCIe v3.0 x8 (Compatible with PCIe x16) |
| Connector | 4x RJ45 |
| Data Rate per Port | 10M/100M/1G/2.5G/5G/10Gbps |
| Cable Medium | Copper |
| Controller | Aquantia AQtion AQC113 |
|---|---|
| JumboFrames | 16KB |
| Power Supply | PCIe Powered |
| Min Power | 1.2W |
| Max Power | 19.38W |
| IEEE Standards | 802.3ae, 802.1Q, 802.1AS, 802.1Qaz, 802.1Qau, 802.1Qbb |
|---|---|
| PXE | Yes |
| UEFI | Yes |
| WoL | No |
| SR-IOV | No |
| 1588 PTP | Yes |
| Bracket Height | Full Height |
|---|---|

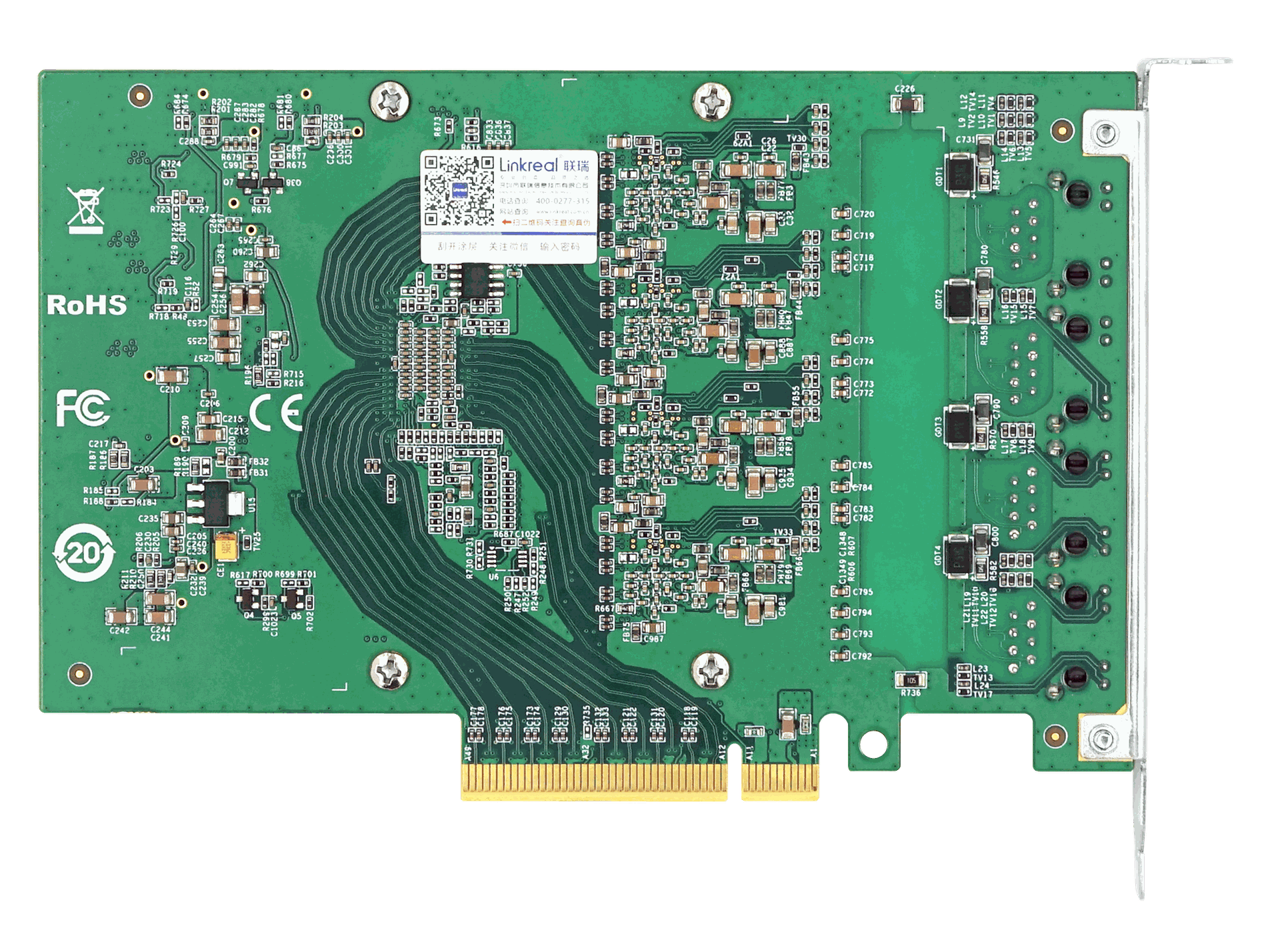

| PCB Size | 104.37 * 156.7 * 1.6 mm |
| Package Size | 250 * 170 * 32 mm |
| LED Indicators | Connection Status (ACT/LINK), Transfer Status (ACT/LINK) |
| Operating Temperature | 0℃ to 50℃ |
|---|---|
| Storage Temperature | -40℃ to 85℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Certifications | FCC, CE, RoHS |
|---|---|
| OS Support | Windows 10/11, Server 2022, Ubuntu, CentOS, RHEL, Kylin, NeoKylin, Deepin, UOS, openKylin |
