Quad-port 2.5G Ethernet frame grabber card based on Intel I226 for industrial vision and AI applications.

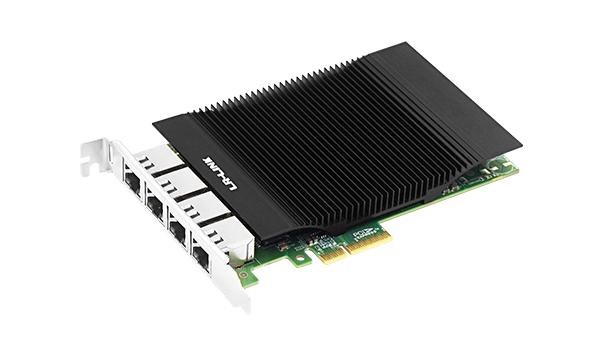

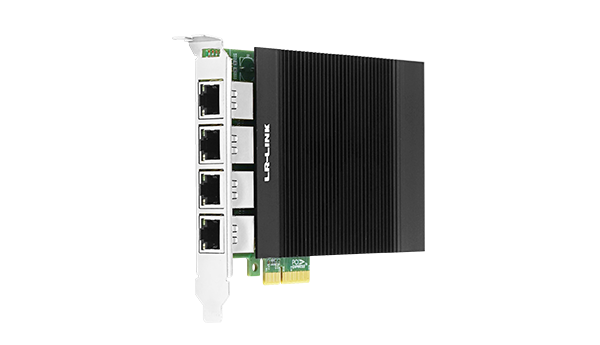

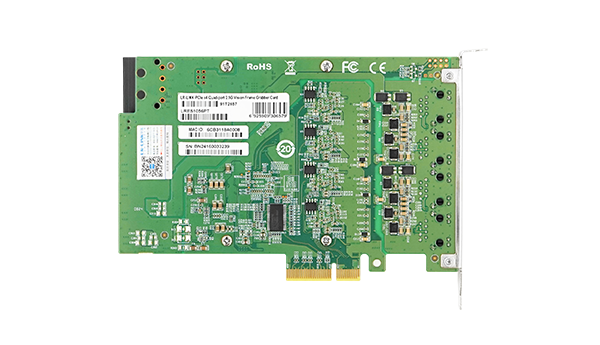

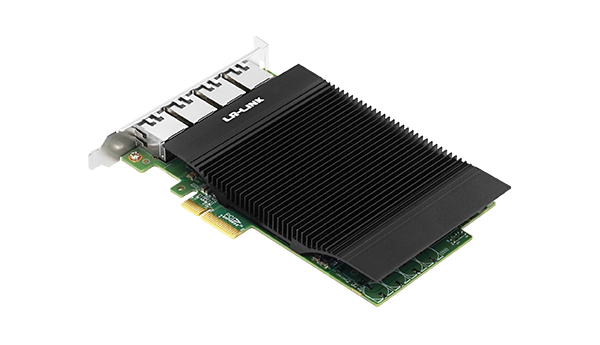

Linkreal presents the LRES1056PT, a specialized PCIe x4 quad-port 2.5G Vision Frame Grabber Card powered by the Intel I226 main controller. This card is engineered to deliver exceptional performance in data transmission, network bandwidth, and small packet processing, making it an ideal solution for demanding industrial environments.
Equipped with four electrical RJ45 ports, the LRES1056PT allows simultaneous connection of multiple devices, significantly improving data collection efficiency. It supports rate adaptation for 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps, ensuring compatibility with various network infrastructures. The card also supports jumbo frames up to 9.2KB and features IEEE 1588 PTP for precise time synchronization.
Designed for robustness, the LRES1056PT operates within a wide temperature range and meets strict ESD and lightning surge standards. It is widely used in industrial visual inspection, intelligent monitoring systems, and medical imaging diagnosis. With support for major operating systems including Windows, Linux, and FreeBSD, it provides a versatile and reliable networking solution for AI and industrial automation sectors.
Supports 2.5Gbps data rate per port for rapid image data collection.
Four RJ45 ports enable simultaneous connection of multiple vision devices.
Powered by Intel I226 controller for stable and reliable performance.
Wide temperature range and ESD protection for harsh industrial environments.
Optimized for small packet transmission and low average delay.
Supports IEEE 1588 PTP for accurate time synchronization in vision systems.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe 2.0 (5.0GT/s) x4 |
|---|---|
| Connector | 4*2.5G RJ45 |
| Data Rate per Port | 10/100/1000/2500 Mbps |
| Cable Medium | Copper CAT-5/6/6e/7 |
| Controller | Intel I226 |
|---|---|
| Jumbo Frames | Yes (Max 9.2KB) |
| RSS | 4 |
| Protocol Support | IEEE 802.3x |
| PXE | No |
|---|---|
| UEFI | Yes |
| MDI/MDI-X | Yes |
| WoL | Yes |
| SR-IOV | No |
| 1588 PTP | Yes |
| Bracket Height | Full Height |
|---|---|
| PCB Size | 156.7*104.37*1.6 mm |
| Power Supply | PCIe Bus Powered |
| Power (Min) | 5.88W |
| Power (Max) | 9.36W |
| Operating Temperature | 0℃ to 55℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing |
| ESD Contact Discharge | ±8kV |
| Lightning Surge Test | ±2kV common mode |
| Certification | FCC, CE, RoHS |
|---|---|
| OS Support | Windows 11, SUSE, Deepin, FreeBSD, RHEL/CentOS, Ubuntu, Mikrotik, iKuairouter |
