Quad-port 2.5G copper NIC based on Intel I226 for industrial and enterprise data collection.

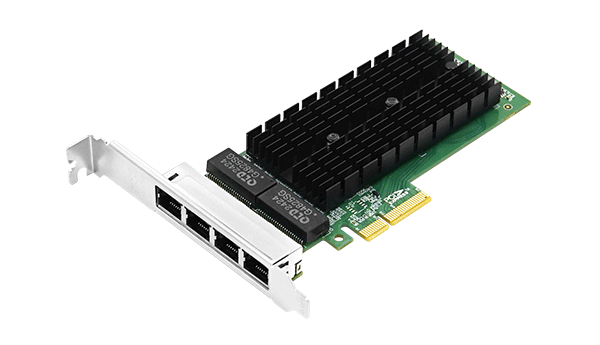

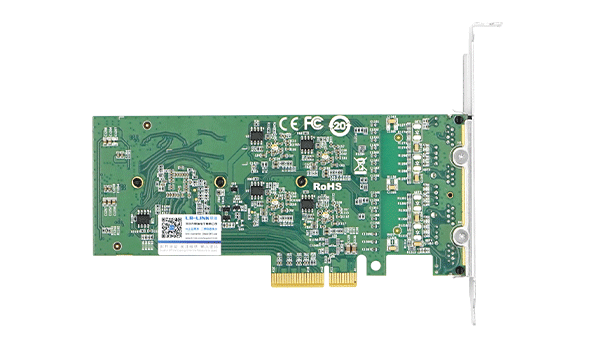

LR-LINK presents the LRES1057PT, a robust PCIe Gen2 x4 Quad-port Copper 2.5G Ethernet Network Adapter designed for demanding industrial and enterprise environments. Built on the reliable Intel I226 main controller solution, this adapter delivers exceptional data transmission performance, making it perfect for applications requiring high bandwidth and stability.
Equipped with four electrical RJ45 ports, the LRES1057PT supports rate adaptation from 10Mbps to 2.5Gbps, ensuring compatibility with various network infrastructures. It supports packets up to 9.2KB (jumbo frames) and offers advanced features like IEEE 1588 PTP for precise time synchronization, which is critical for industrial automation and synchronized data collection tasks.
This network adapter is widely used in industrial visual inspection, intelligent monitoring systems, and medical imaging diagnosis. Its compact design fits into both low-profile and full-height slots, while its broad operating system support including Windows, Linux, and FreeBSD ensures seamless integration into diverse IT ecosystems.
Supports 2.5Gbps per port for rapid data transfer in industrial settings.
Four RJ45 ports enable simultaneous connection of multiple devices.
Powered by Intel I226 controller for stable and efficient performance.
Designed for harsh environments with wide temperature tolerance.
Supports IEEE 1588 PTP for accurate time synchronization.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe Gen2 x4 |
|---|---|
| Connector | 4x RJ45 |
| Data Rate per Port | 10/100/1000/2500 Mbps |
| Cable Medium | Copper |
| Controller | Intel I226 |
|---|---|
| Advanced Features |
| Bracket Height | Low Profile & Full Height |
|---|---|
| PCB Size | 150*68.8*1.6 mm |
| Power Supply | PCIe Bus Powered |
| Operating Temperature | 0℃ to 70℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing |
| Certification | FCC, CE, RoHS |
|---|
