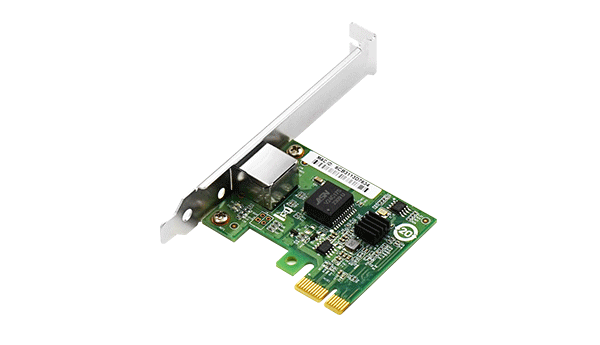

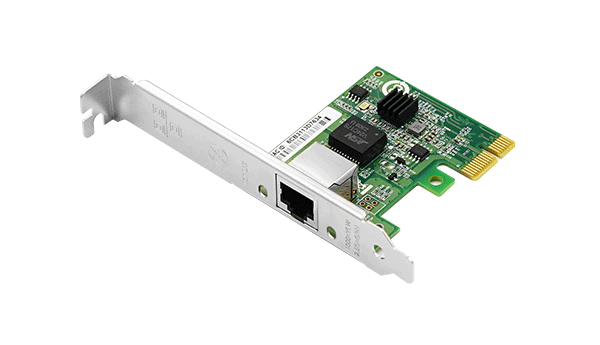

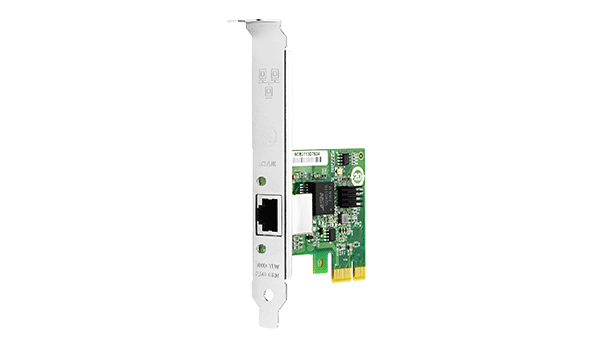

Intel I226V based PCIe x1 2.5G single-port desktop network adapter for enhanced home and industrial connectivity.
LR-LINK presents the LRES1059PT, a specialized PCIe x1 2.5G single-port desktop adapter engineered to bridge the gap between traditional Gigabit and modern multi-gigabit networking needs. Built on the robust Intel I226V chipset, this network interface card delivers data rates up to 2500Mbps, ensuring smoother performance for bandwidth-intensive tasks such as large file transfers in home NAS environments or low-latency communication in industrial control systems.
This adapter features comprehensive protocol support including IEEE 802.3bz 2500BASE-T, IEEE 1588 PTP clock synchronization, and Jumbo Frames up to 9.2KB. It is designed for versatility with support for both Low Profile and Full Height brackets, making it suitable for compact embedded computers, single-board computers, and standard desktop PCs. The device also includes Wake-on-LAN (WoL) and UEFI support for flexible system management.
Engineered for reliability in diverse environments, the LRES1059PT operates within a temperature range of 0°C to 70°C and meets FCC, CE, and RoHS certifications. By providing faster-than-Gigabit speeds at a competitive price point, LR-LINK ensures that users can upgrade their network infrastructure without the need for expensive cabling changes, supporting copper-based NBase-T standards effectively.
Delivers up to 2500Mbps throughput for faster data transfer than standard Gigabit Ethernet.
Powered by the reliable Intel I226V controller for stable and efficient network performance.
Small form factor PCIe x1 adapter fits easily into desktops, servers, and embedded systems.
Supports IEEE 1588 PTP clock synchronization for precise timing in industrial applications.
Compatible with Windows, Linux distributions, and other major operating systems.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe v3.1 (5.0GT/s) x1 |
|---|---|
| Data Rate per Port | 10/100/1000/2500Mbps |
| Connector | 1x RJ45 |
| Cable Medium | Copper (NBase-T) |
| Bracket Options | Low Profile & Full Height |
| Controller | Intel KTI I226V |
|---|---|
| Protocol Support | IEEE 802.3bz, 802.3ab, 802.3u, 802.3x |
| IEEE 1588 PTP | Yes |
|---|---|
| Jumbo Frames | Yes (Max 9.2KB) |
| Wake-on-LAN (WoL) | Yes |
| UEFI Support | Yes |
| PXE Boot | No |
| SR-IOV | No |
| Supported OS | Windows 10/11, Ubuntu 20.04/22.04, Deepin 20.9, openKylin 0.7.5, Mikrotik, ikuai |
|---|
| PCB Size | 64.9 x 55.5 x 1.6 mm |
|---|---|
| Max Power Consumption | 2.0W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing @ 35°C |
| Compliance | FCC, CE, RoHS |
|---|
