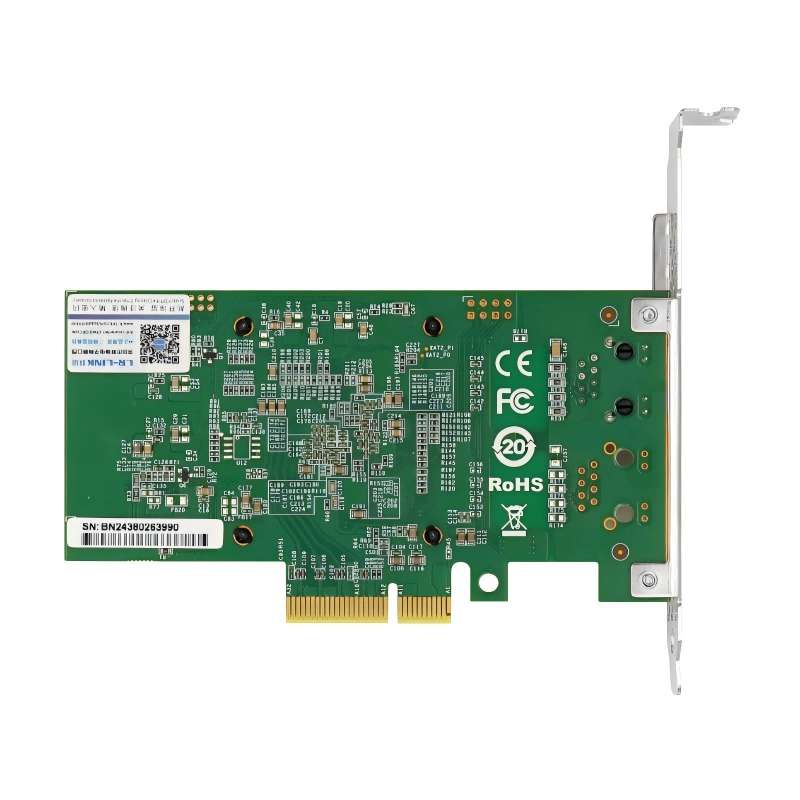

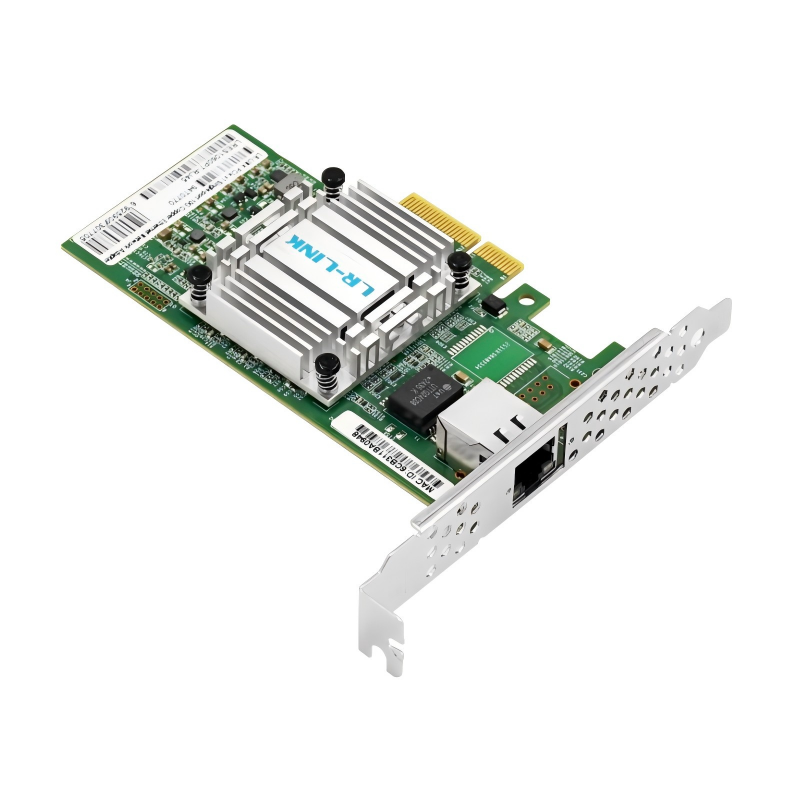

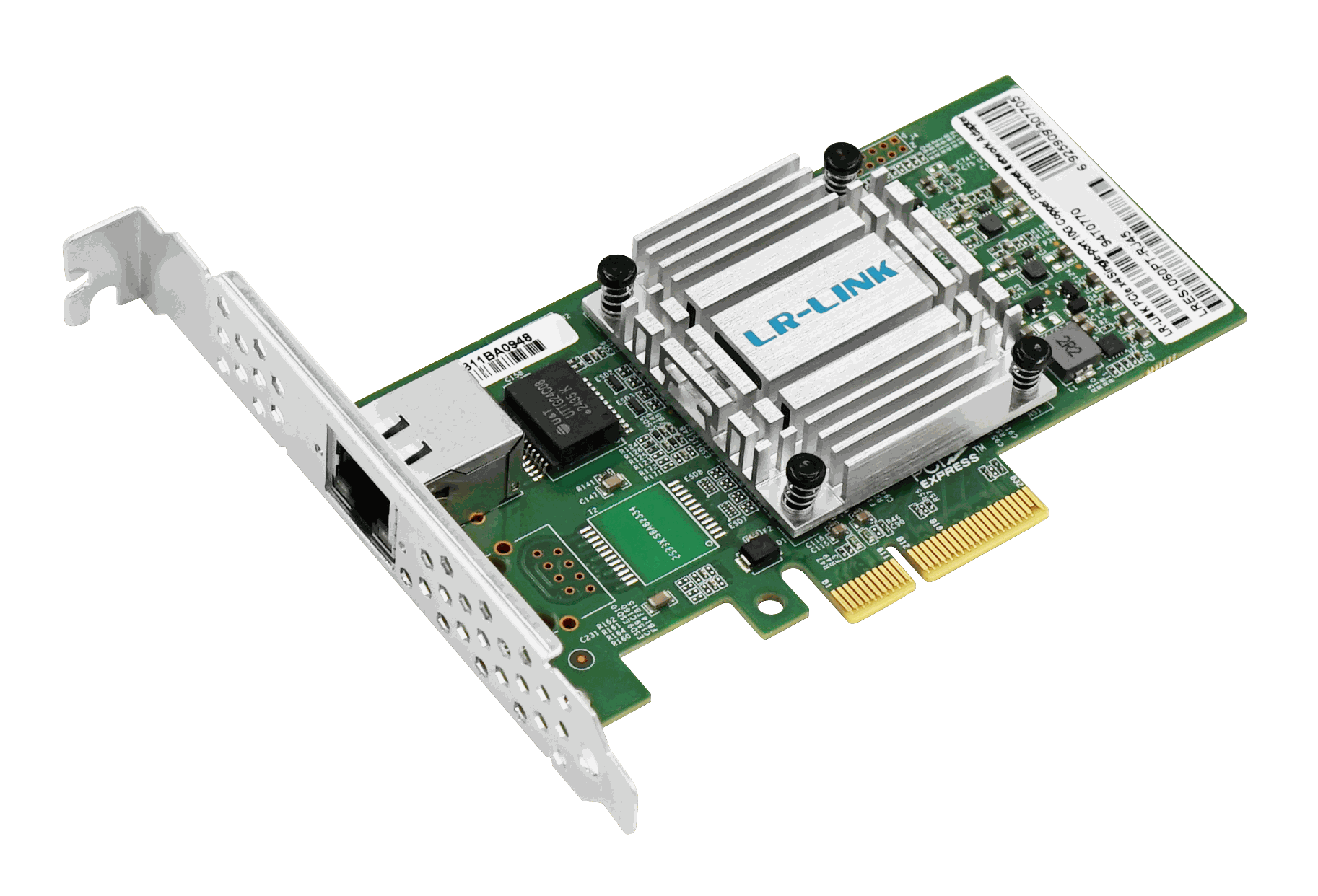

Intel E610 based single-port 10G PCIe 4.0 network adapter with RJ45 interface.
LR-LINK presents the LRES1060PT-RJ45, a specialized 10G single-port Ethernet network adapter engineered for efficiency and reliability in modern networking environments. Built on the robust Intel E610 chipset, this adapter leverages a PCIe 4.0 x4 interface to deliver high-speed data transmission while maintaining low power consumption, making it an excellent choice for energy-conscious data centers and cloud infrastructure.
This network adapter supports versatile speed auto-sensing ranging from 100Mbps to 10Gbps, ensuring compatibility with existing copper cabling infrastructure such as CAT6A or CAT7. It integrates essential enterprise features including PXE/UEFI boot support, Wake-on-LAN (WoL), Single Root I/O Virtualization (SR-IOV), and IEEE 1588 Precision Time Protocol (PTP) synchronization, providing a stable and secure solution for diverse network demands.
Designed for flexibility and ease of deployment, the LRES1060PT-RJ45 balances performance with operational simplicity. It is ideally suited for data centers, network equipment, embedded systems, and edge IoT applications where efficient data transmission and cost-effectiveness are paramount. With comprehensive OS support and rigorous certifications, LR-LINK ensures this adapter meets the highest standards for industrial and commercial networking needs.
Intel E610 chip delivers reliable 10Gbps throughput with PCIe 4.0 x4 bandwidth.
Auto-negotiates 100M to 10Gbps for seamless integration with legacy copper networks.
Supports SR-IOV for enhanced virtual machine performance and resource isolation.
Optimized power consumption of 3.2W max, ideal for dense server deployments.
Integrates IEEE 1588 PTP for accurate time synchronization in critical apps.
Complete technical details for integration and deployment planning.
| Host Connector | PCIe 4.0 x4 |
|---|---|
| Port Type | Single-port RJ45 |
| Link Speed | 100M/1G/2.5G/5G/10G |
| Cable Medium | CAT6A, or CAT7, up to 100M |
| Controller | Intel E610 |
|---|
| IEEE Standards | 802.3an, 802.3-2012, 802.1Q VLAN, 1588, 802.1AE/D5.1, 802.3az, 802.1BR/D3.3, 802.1Qbg |
|---|---|
| Jumbo Frames | 9.7KB |
| PXE/UEFI | Yes |
|---|---|
| WoL | Yes |
| SR-IOV | Yes |
| 1588 PTP | Yes |
| PCB Size | 115*76*1.6mm |
|---|---|
| Package Size | 179*150*30mm |
| Power Consumption | 3.2W (Max) |
| LED Indicators | Color/Behavior: Link, Activity |
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum 90% non-condensing at 35°C |
| Compliance | FCC, CE, RoHS |
|---|
