PCIe x16 Dual-port100G Ethernet Network

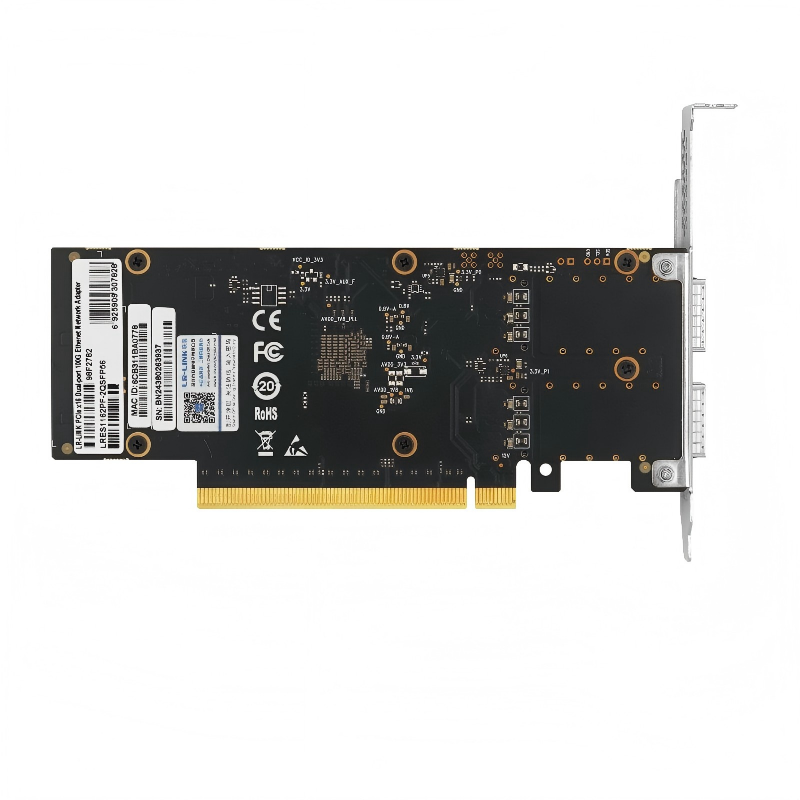

LRES1162PF-2QSFP56 is a PCIe x16 Dual-port 100G Ethernet Network Adapter. It is equipped with two QSFP56 connectors, supports high-speed fiber transmission, and the physical board size follows the HHHL (Half-Height Half-Length) PCIe add-in card form factor.
LRES1162PF-2QSFP56 supports, RDMA (RoCEv2), and GPUDirect, delivering exceptional performance in GPU-intensive workloads such as AI and machine learning. In addition, it supports virtualized networking protocols including VXLAN, Geneve, and NVGRE, enabling more efficient traffic handling as well as flexible network isolation and management when building virtualized environments and cloud computing platforms.
The LRES1162PF-2QSFP56 network card has excellent hardware performance, network connection speed, and multi-function support, and is a leading product in the field of network communications. It is suitable for various application scenarios such as AI/ML, data centers, and high-performance computing.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRES1162PF-2QSFP56 |
|---|---|
| Adapter Type | PCIe NIC |
| Form Factor | HHHL |
| Host Connector | PCle4.0 x16 |
| Connectors | QSFP56 |
| Port | Dual |
| Link Speed | 10/25/40/50/100 Gbps |
| Protocol Support | IEEE 802.3cdIEEE 802.3bjEEE 802.3byIEEE 802.3aeIEEE 802.3abIEEE 802.3x IEEE 802.1QbbIEEE 802.1QazIEEE 802.1QauIEEE 802.1QIEEE 802.1pIEEE 1588v2IEEE 802.3az |
| PXE/UEFI | Yes |
|---|---|
| RoCEv2 | Yes |
| NVMe-oF | Yes |
| SR-IOV | Yes |
| 1588 PTP | Yes |
| Jumbo Frames | 9.9KB |
| Green | Link at 100Gb/s |
|---|---|
| Amber | Link at lower speed |
| Green(blink) | Linkup(traffic flowing) |
|---|
| Adapter Size | 167.7*68.9mm |
|---|---|
| Package Size | 179*150*30mm |
| Internet Network Adapter | *1 |
|---|---|
| Product Warranty Card | *1 |
| Packaging | Carton + Blister box |
