Dual-port Gigabit PoE+ industrial NIC based on Intel I350 for vision inspection and server applications.

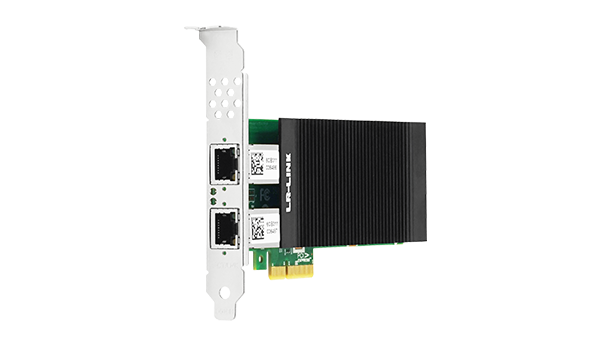

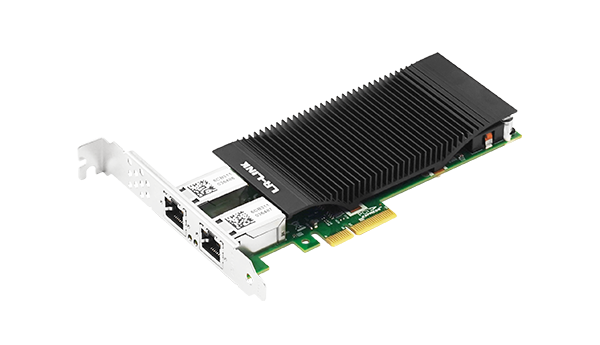

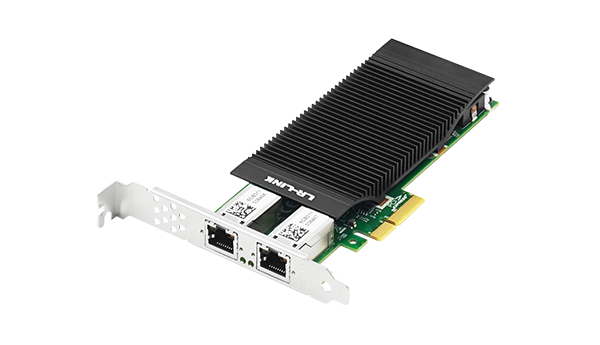

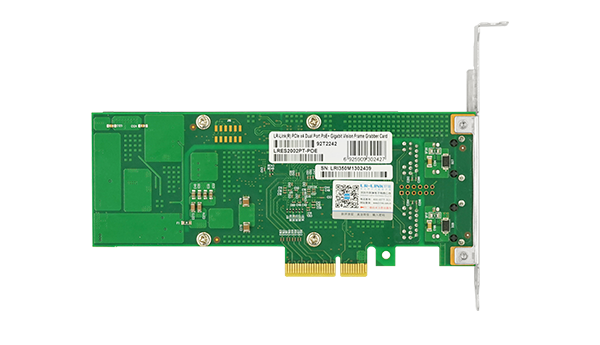

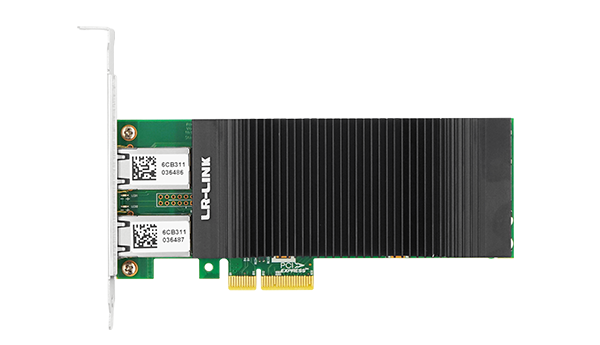

LR-LINK presents the LRES2002PT-POE, a specialized PCIe x4 dual-port Gigabit Ethernet network adapter engineered for industrial vision inspection servers and fast-moving data transmission equipment. Built on the trusted Intel I350 controller, this card ensures high reliability and hardware acceleration for TCP/UDP/IP checksums, freeing up CPU resources for critical applications.

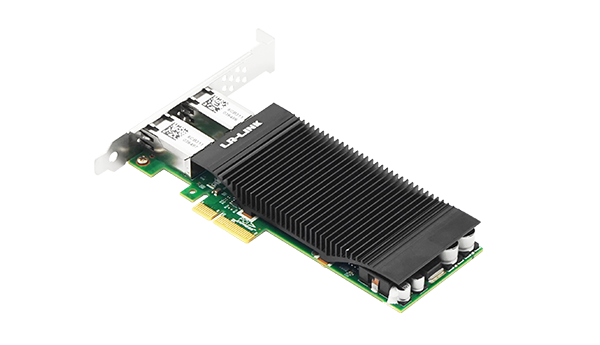

Designed specifically for harsh industrial environments, the adapter features a wider RJ45 pitch design and customized locking connectors to prevent unstable connections caused by vibration or movement. The integrated large heat sink effectively manages thermal output, ensuring long-term stability even in poor ventilation scenarios, while supporting standard cable access for versatility.
This PoE-enabled network interface card delivers up to 30W of power per port, compliant with IEEE 802.3af and 802.3at standards. It is ideal for powering IP cameras, wireless access points, and other PoE devices directly through the network connection. Compatible with Windows, Linux, and VMware ESXi, it serves as a versatile solution for both industrial automation and general server networking needs.
Delivers up to 30W per port via IEEE 802.3at standard for powered devices.
Robust RJ45 connectors and wide temperature range for harsh environments.
Reliable dual-port Gigabit controller with hardware acceleration capabilities.
Supports Jumbo Frames, DPDK, and PXE boot for efficient data processing.
Compatible with major OS including Windows, Linux, and VMware ESXi.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe x4 (compatible with x8, x16) |
|---|---|
| Data Rate | 10/100/1000 Mbps |
| Connector | 2x 8-Pin RJ45 |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power/Port | Up to 30W |
| Controller | Intel I350 |
|---|---|
| MAC/PHY | Integrated Dual Gigabit MAC+PHY |
| Jumbo Frames | YES |
|---|---|
| DPDK Support | YES |
| PXE Boot | YES |
| VLAN Tagging | IEEE 802.1Q |
| Energy Efficient Ethernet | IEEE 802.3az (EEE) |
| Size (mm) | 160 x 120 x 21 |
|---|---|
| Baffle Height | Half & Full Height |
| Power Consumption | 3.0W (Card), Total up to 75W via PCIe |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Windows | XP/Vista/7/8/8.1/10/11 |
|---|---|
| Windows Server | 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2/2022 R2 |
| Linux | Kernel 2.6.32.x+, CentOS/RHEL 6.x+, Ubuntu 14.x+ |
| VMware | ESX/ESXi 4.x/5.x/6.x+ |
