Industrial-grade quad-port Gigabit NIC based on Intel I350 with RJ45 connectivity and hardware acceleration.
LR-LINK presents the LRES2005PT, a high-reliability Quad-port Copper Gigabit Ethernet Network Adapter designed specifically for industrial applications. Built on the proven Intel I350 chipset, this adapter provides stable and efficient data transmission for visual inspection servers, field clients, and fast mobile Ethernet equipment.
Engineered for performance, the LRES2005PT integrates advanced hardware acceleration capabilities, including TCP/UDP/IP checksum offloading and TCP segmentation. This technology significantly reduces host CPU usage, freeing up resources for critical applications while maintaining high throughput over standard Cat 5E/Cat6 cabling.

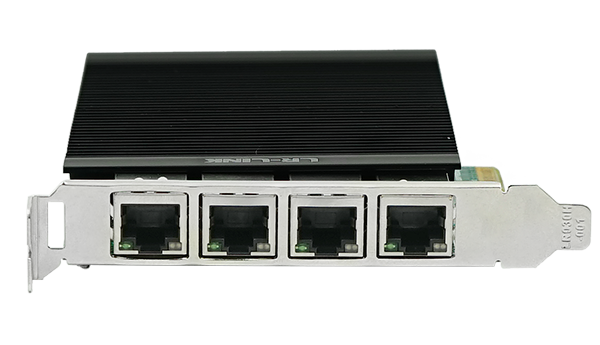

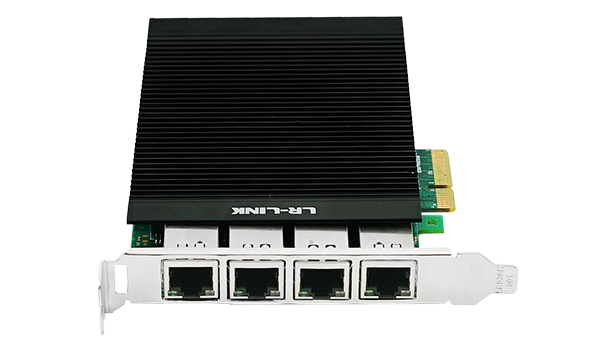

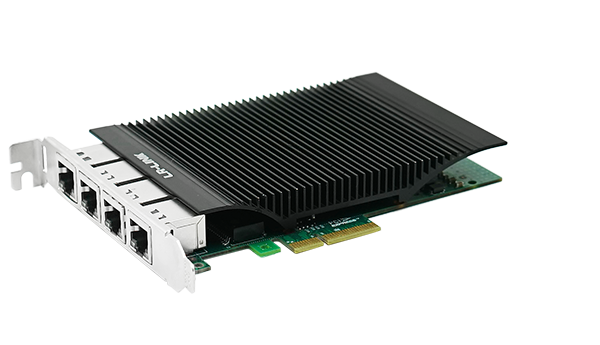

The card supports PCIe 2.1 x4 interface, compatible with x8 and x16 slots, ensuring broad system compatibility. With its durable RJ45 connectors, large heat sink for thermal management, and wide operating temperature range, the LRES2005PT ensures long-term stability in demanding industrial environments.
Four Gigabit RJ45 ports for high-bandwidth industrial data transmission.
Powered by Intel I350 chip for stable and secure network connectivity.
Hardware acceleration offloads TCP/IP tasks to free up CPU resources.
Wide temperature range and robust design for harsh industrial environments.
Supports SR-IOV and VMDq for optimized virtual machine performance.
Complete technical details for integration and deployment planning.
| Port Configuration | Quad-port |
|---|---|
| Connector Type | 4x RJ45 |
| Cable Medium | Copper (Cat 5E/Cat6) |
| Data Rate | 10/100/1000Mbps |
| Bus Interface | PCIe 2.1 x4 (Compatible with x8/x16) |
| Controller | Intel I350 |
|---|---|
| MAC+PHY | Integrated Quad-port |
| TCP Checksum Offload | YES |
|---|---|
| UDP Checksum Offload | YES |
| IP Checksum Offload | YES |
| Jumbo Frame | YES |
| SR-IOV | YES |
| VMDq | YES |
| DPDK Support | YES |
| PXE Boot | YES |
| IEEE 1588 | YES |
| EEE (Energy Efficient Ethernet) | YES |
| VLAN Tagging | YES (IEEE 802.1Q) |
| Form Factor | Low Profile / Full Height Bracket |
|---|---|
| PCB Size | 145*100*1.6 mm |
| Power Consumption | 5.0W |
| Heat Sink | Large Aluminum Heat Sink |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| IEEE 802.3ab | 1000BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3z | Compliant |
| IEEE 802.3x | Flow Control |
| PCI-SIG | Compliant |
