Eight-port PoE+ Gigabit Ethernet frame grabber based on Intel I350 for industrial vision inspection.

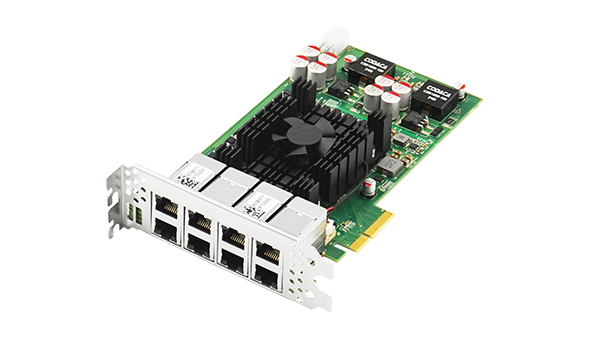

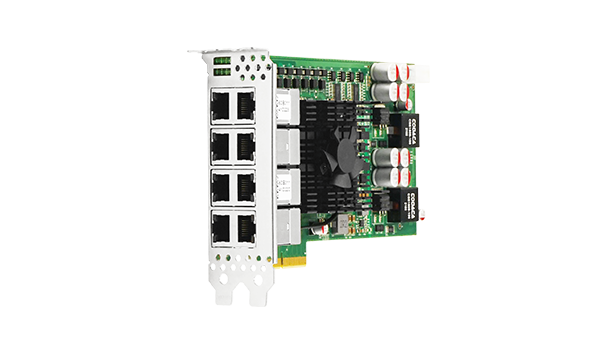

LR-LINK presents the LRES2008PT-POE, a specialized PCIe x4 eight-port PoE+ Gigabit Ethernet frame grabber engineered for industrial automation and visual inspection applications. Based on the robust Intel I350 chipset, this server adapter provides eight independent RJ45 ports capable of full-duplex Gigabit speeds, making it an ideal solution for deploying critical network applications on high-performance servers.

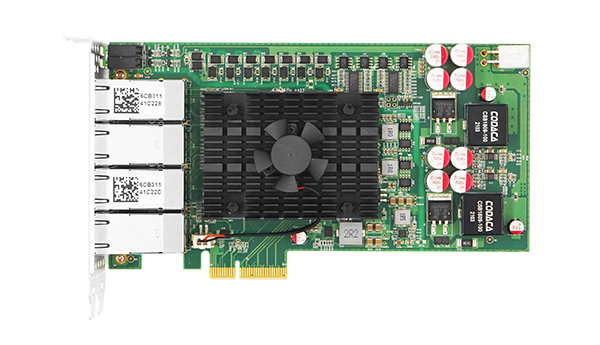

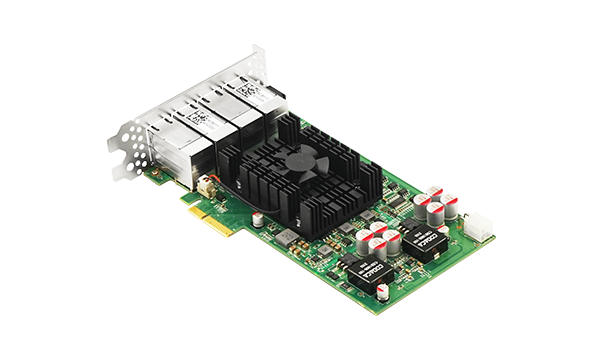

Designed for reliability in harsh environments, the card features a wide RJ45 pitch design and heavy gold-plated connectors for secure connectivity. It includes a large heatsink for effective thermal management and supports up to 30W PoE output per port via an external 4-pin power interface. This ensures that connected devices receive sufficient power while maintaining stable long-term operation.
The LRES2008PT-POE integrates hardware acceleration functions, including TCP/UDP/IP checksum offload and TCP segmentation, which significantly reduces CPU overhead. Compatible with PCIe x8 and x16 slots, it allows for bandwidth expansion through link aggregation without occupying excessive bus resources. With support for Jumbo Frames, DPDK, and PXE, it offers versatile functionality for fast mobile Ethernet data transmission and industrial field clients.
Provides eight independent Gigabit Ethernet ports for extensive network connectivity.
Supports up to 30W PoE per port with external power supply for powered devices.
Built on reliable Intel I350 controller for stable high-speed data transmission.
Offloads TCP/UDP checksums and segmentation to reduce CPU usage.
Wide temperature range and robust heatsink for harsh industrial environments.
Compatible with Data Plane Development Kit for high-performance packet processing.
Complete technical details for integration and deployment planning.
| Bus Type | PCI Express v2.1 x4 (compatible with x8/x16) |
|---|---|
| Data Rates | 10/100/1000 Mbps |
| Connectors | 8x RJ45 |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Output | Max 30W/port |
| Controller | Intel I350 |
|---|---|
| Acceleration | TCP/UDP/IP Checksum Offload, TCP Segmentation |
| Jumbo Frames | YES |
|---|---|
| DPDK | YES |
| PXE | YES |
| WoL | No |
| iSCSI | No |
| FCoE | No |
| Bracket Height | Full height |
|---|---|
| Size (mm) | 186 x 105 |
| Power Consumption | 12.0W |
| Power Supply | External 4Pin ATX Connector (+12V) |
| Operating Temperature | 0°C to +55°C |
|---|---|
| Storage Temperature | -55°C to +105°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Ethernet Standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
|---|---|
| VLAN Support | IEEE 802.1Q |
| System Support | Windows XP/7/8/10/Server 2003-2019, Linux CentOS/RHEL/Ubuntu, VMware ESXi |
