Quad-port Gigabit Ethernet NIC with PoE, digital I/O, and Intel I350 for industrial vision systems.

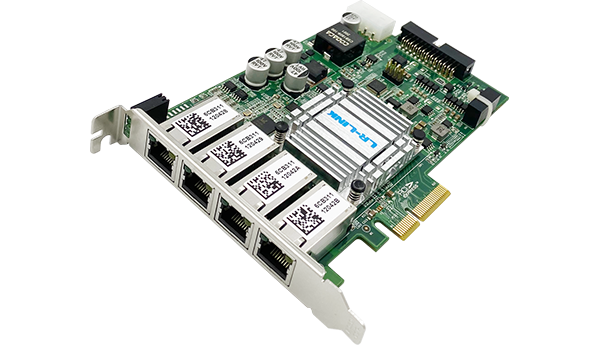

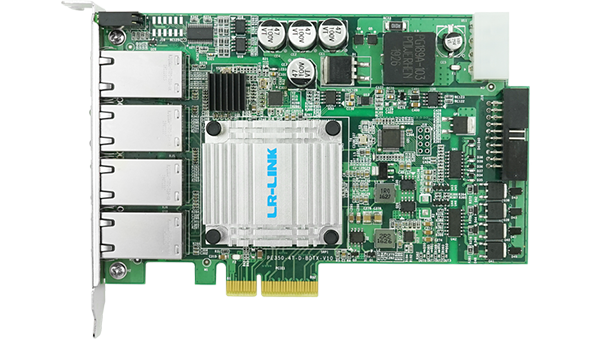

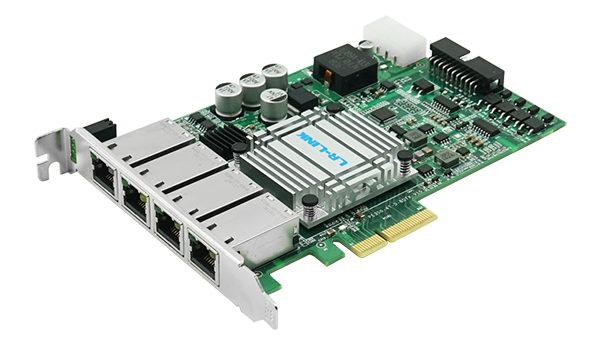

The LRES2013PT-POE is an advanced PCI Express x4 Quad-port Multifunction Gigabit Ethernet Frame Grabber independently developed by LR-LINK. Built on the reliable Intel I350 controller solution, this adapter delivers high-speed data transmission for industrial machine vision, visual field clients, and fast mobile Ethernet applications. It is fully compatible with PCIe x8 and x16 slots, ensuring seamless integration into existing server infrastructure.
Designed for demanding industrial environments, this network adapter features integrated PoE capabilities, providing up to 30W of power per port to connected devices such as cameras and sensors. The card includes essential protection mechanisms, automatic power prediction, and easy-to-use API tools for efficient power management. Additionally, it monitors working temperatures to ensure stable operation even in poor heat dissipation conditions.
A key differentiator of the LRES2013PT-POE is its support for four isolated digital input-output channels with 2500Vdc isolation voltage. This allows for precise linkage control and adjustable delay settings via software, making it ideal for complex automation tasks. The hardware acceleration engine offloads TCP/UDP/IP checksums and segmentation, freeing up CPU resources for other critical applications.
Four independent 1Gbps RJ45 ports for high-bandwidth industrial vision data transmission.
Provides up to 30W PoE per port to power cameras and sensors directly via Ethernet.
Features 4 isolated digital I/O channels with 2500Vdc isolation for precise equipment control.
Reliable performance based on Intel I350 MAC+PHY controller with hardware acceleration.
Robust design with large heat sinks and thickened gold connectors for stable long-term operation.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 x4 (compatible with x8, x16) |
|---|---|
| Data Rate | 10/100/1000 Mbps |
| Connector | 4x 1G 8-Pin RJ45 |
| Copper Medium | Cat 5E & Cat6 or higher |
| Max Distance | 100m (1000Base-T) |
| PoE Standard | IEEE 802.3af / 802.3at |
| Controller | Intel I350 |
|---|---|
| Advanced Features | |
| Offload Capabilities | TCP/UDP/IP Checksum Offloading, TCP Segmentation |
| Link Aggregation | Supported |
| PoE Power (Max) | 30W / port |
|---|---|
| PoE Voltage | 48V |
| System Power Consumption | 5.0W |
| I/O Input (DC) | +12V ~ +24V |
| I/O Output (DC) | +24V, 5A |
| External Power Interface | 4-Pin Power Supply |
| Digital I/O Channels | 4 Isolated Channels |
|---|---|
| Isolation Voltage | 2500Vdc |
| Control | Adjustable delay, Linkage setting via software |
| Size | 158 * 120 * 21 mm |
|---|---|
| Weight | * g (not specified in text) |
| Bracket | Full-height bracket |
| Heat Sink | Large heat sink for effective cooling |
| Operating Temperature | 0℃ to 55℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Certifications | FCC, CE, RoHS |
|---|---|
| OS Support | Windows XP/7/8/10, Server 2003-2019, Linux (CentOS/RHEL/Ubuntu), VMware ESXi |
