PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter (Net-swift WX1860A2 Based)

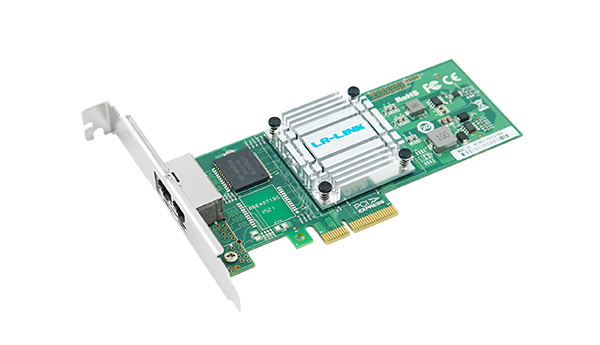

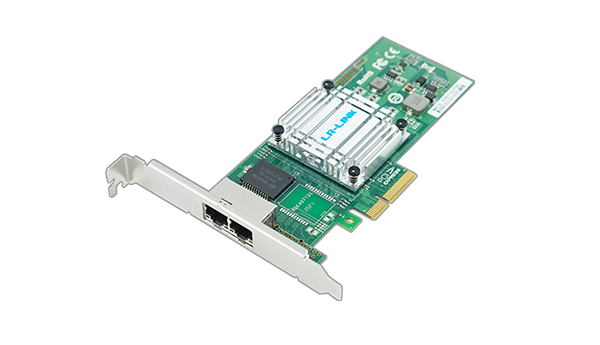

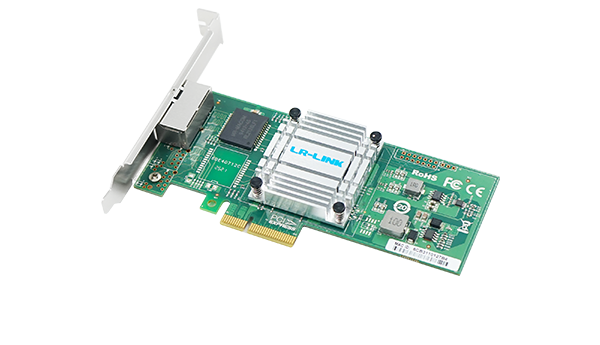

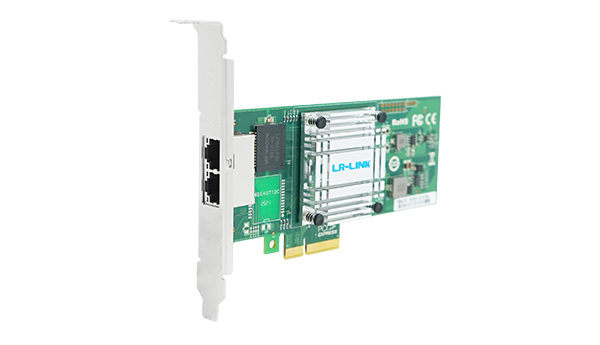

LRES2024PT is a PCI Express v2.1 x4 dual-port Gigabit Ethernet network adapter developed by Linkreal Co., Ltd. based on the WX1860A2 solution of the domestic main controller WebEx Technology. This adapter is compatible with PCIe x4, x8 and x16 and backward compatible with PCIe v1.1. The adapter card achieves a dual-port bidirectional communication transfer rate of 4GB on a PCI Express v2.1 x4 bus.
The ethernet network card (LRES2024PT) with independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated Gigabit Ethernet media access control (MAC) and physical layer (PHY) module. It is widely used in the network communication of enterprises and institutions, and can also be used on PC servers, embedded and other network devices.
The main controller used by the optical network card has independent intellectual property rights and independent controllability, which is of great significance for breaking foreign monopolies and ensuring national information security.
The controller used by LRES2024PT is WebEx Technology WX1860A2, which is a domestically produced main control product with independent controllability. Including data transmission, data network bandwidth, average transmission delay, actual packet transmission rate and other indicators have reached the industry level. And has passed X86, Shenwei, Feiteng, Godson, Zhaoxin and other platforms for authoritative testing and application, and overall showed excellent performance.
PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter (Net-swift WX1860): LRES2025PT
Complete technical details for integration and deployment planning.
| Baffle Height | Full-height bracket |
|---|---|
| Power Consumption | 2.5W |
| OS Support | Windows 7/8/8.1/10/11 |
| Bus Type | PCIe v2.1 x4，compatible with x8 , x16 |
|---|---|
| Data rate per port | 100/1000Mbps |
| Connector | 2*1G RJ45 Connector |
| Power supply | PCIe |
| Standards compliant | IEEE802.3at -2009 PoE standardIEEE802.3af -2003 PoE standardIEEE 802.3an 10GBASE-T EthernetIEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| iSCSI | No |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | No |
| FCoE | No |
| PCI-SIG/SR-IOV | Yes |
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| Certification | FCC, CE, RoHS |
