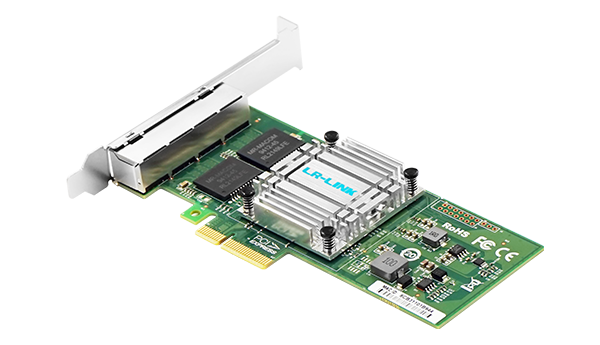

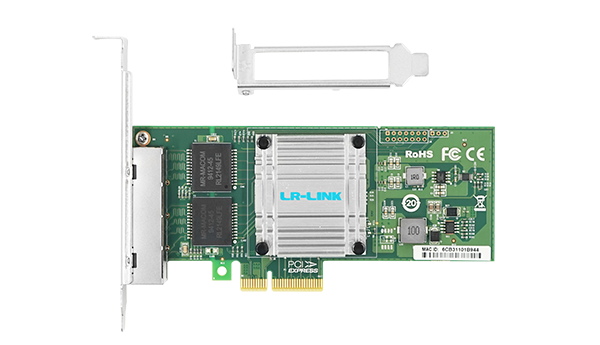

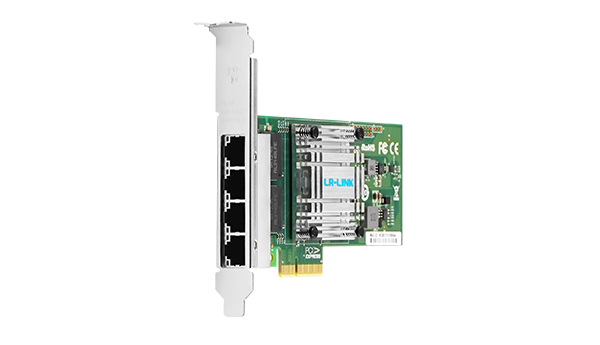

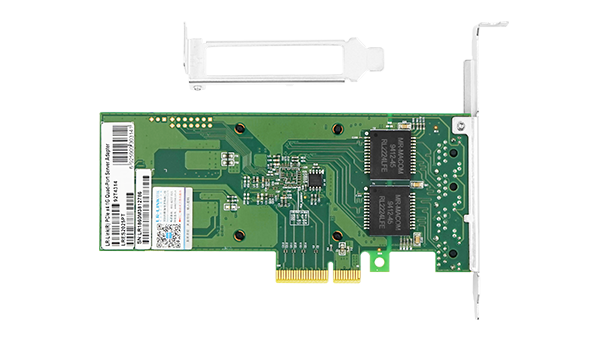

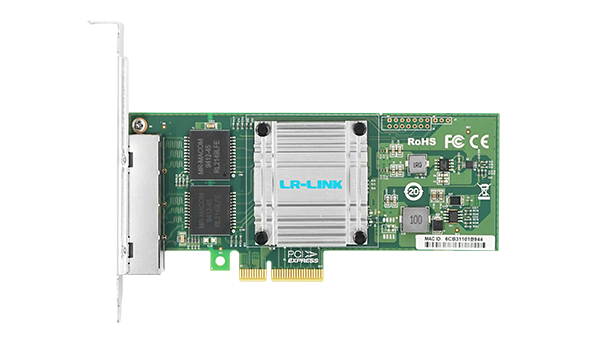

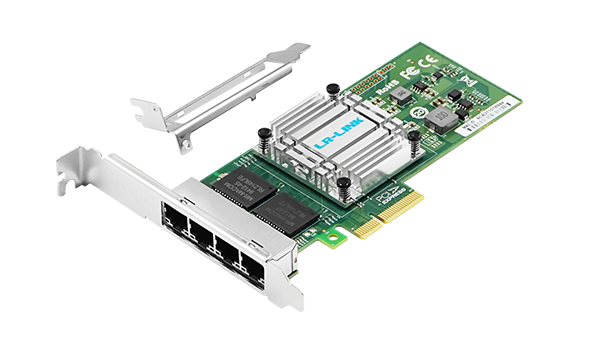

Quad-port Gigabit copper NIC based on Net-swift WX1860A4 controller for servers and embedded systems.
LR-LINK presents the LRES2025PT, a robust quad-port Gigabit copper Ethernet network adapter engineered for reliability and information security. Built upon the independent intellectual property rights of the Net-swift WX1860A4 controller, this adapter ensures autonomous controllability and breaks the monopoly of certain enterprises in the networking hardware sector.
Designed for seamless integration, the LRES2025PT operates on a PCI Express v2.1 x4 bus but remains compatible with PCIe x8 and x16 slots, as well as backward compatible with PCIe v1.0. It delivers a theoretical throughput of 8Gbps, supporting data rates of 10/100/1000Mbps per port over Cat 5E/Cat 6 cables up to 100 meters, making it suitable for diverse network environments.
This network card features a fully integrated gigabit Ethernet MAC module and supports advanced standards such as IEEE 802.1Q VLAN, Jumbo Frames, DPDK, and SR-IOV. With low power consumption of just 3.5W and support for major operating systems including Windows Server and Linux distributions, it is an ideal solution for PC servers, embedded systems, and industrial automation applications requiring stable and secure connectivity.
Powered by Net-swift WX1860A4 for independent controllability and information security.
Four Gigabit ports delivering 8Gbps total throughput for high-bandwidth needs.
Optimized for PC servers, embedded systems, and industrial network devices.
Enables high-speed packet processing for virtualization and cloud applications.
Energy-efficient operation with only 3.5W power consumption.
Supports Windows, Linux, and various server OS versions seamlessly.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 x4 (Compatible with x8, x16) |
|---|---|
| Port Configuration | Quad-port |
| Connector | 4x RJ45 (1G) |
| Data Rate per Port | 10/100/1000Mbps |
| Copper Medium | Cat 5E/Cat 6 or higher (1000Base-T up to 100m) |
| Controller | Net-swift WX1860A4 |
|---|---|
| MAC Module | Fully Integrated Gigabit Ethernet MAC |
| Standards | |
|---|---|
| Advanced Features | |
| iSCSI | No |
| WoL | No |
| PXE | No |
| FCoE | No |
| Size | 151.5 * 120 * 21 mm |
|---|---|
| Weight | * g |
| Baffle Height | Half & Full-height bracket |
| Power Consumption | 3.5W |
| LED Indication | Green (1000M), Orange/Green (10/100M) |
| Operating Temperature | 0℃ to 55℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Windows | |
|---|---|
| Linux |
| Compliance |
|---|
Firmware updates, setup guides and documentation to get started quickly.
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
