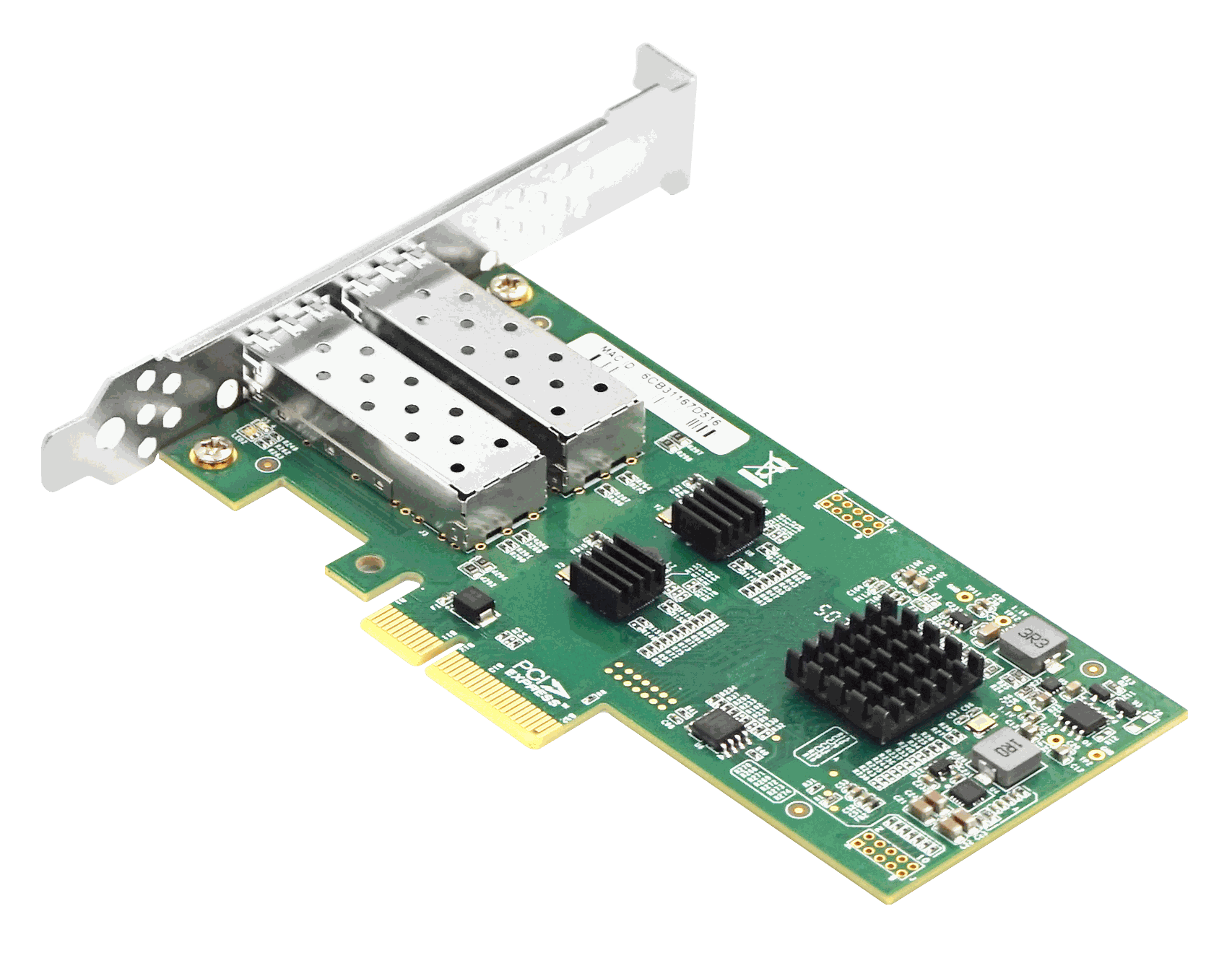

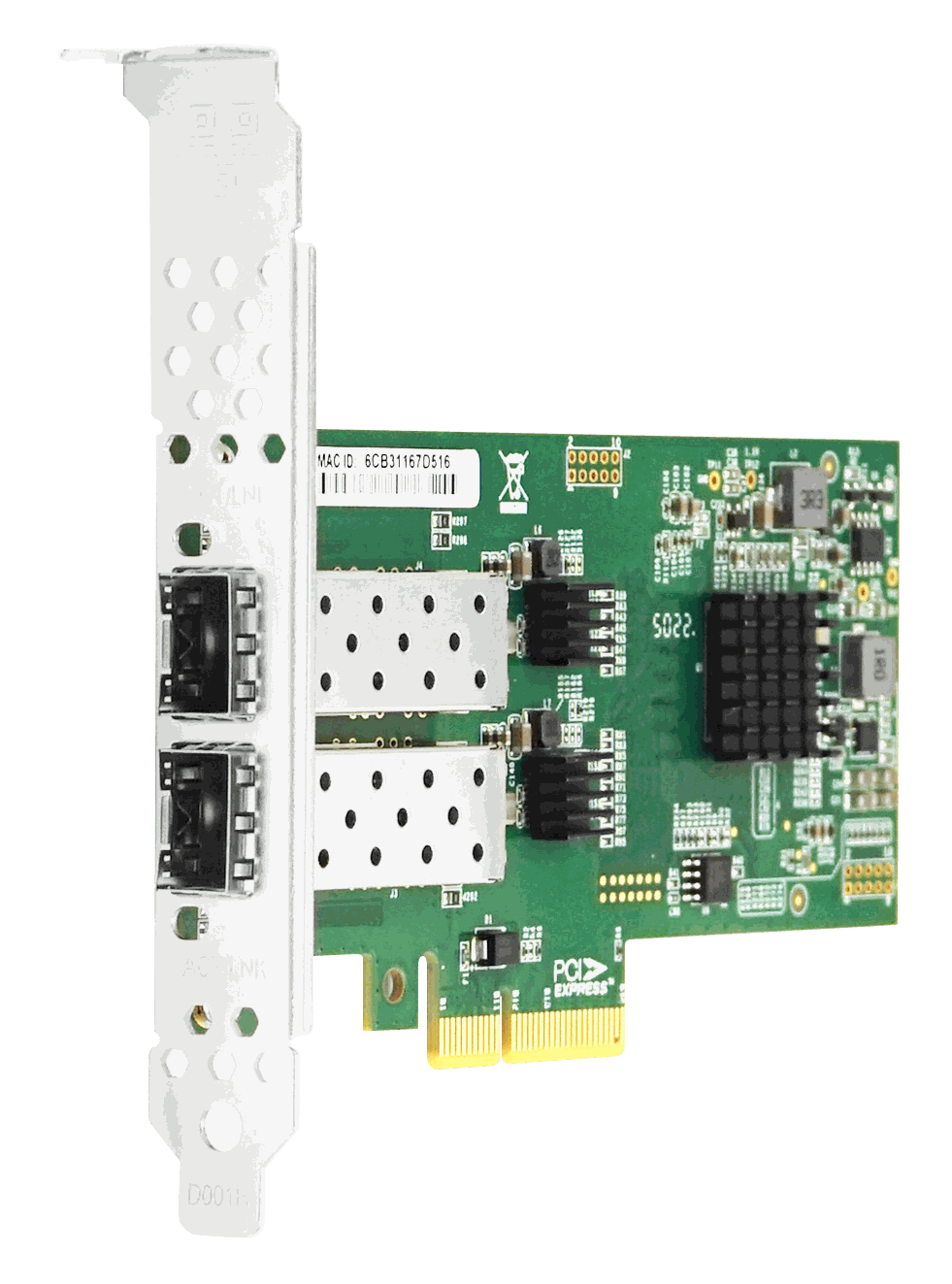

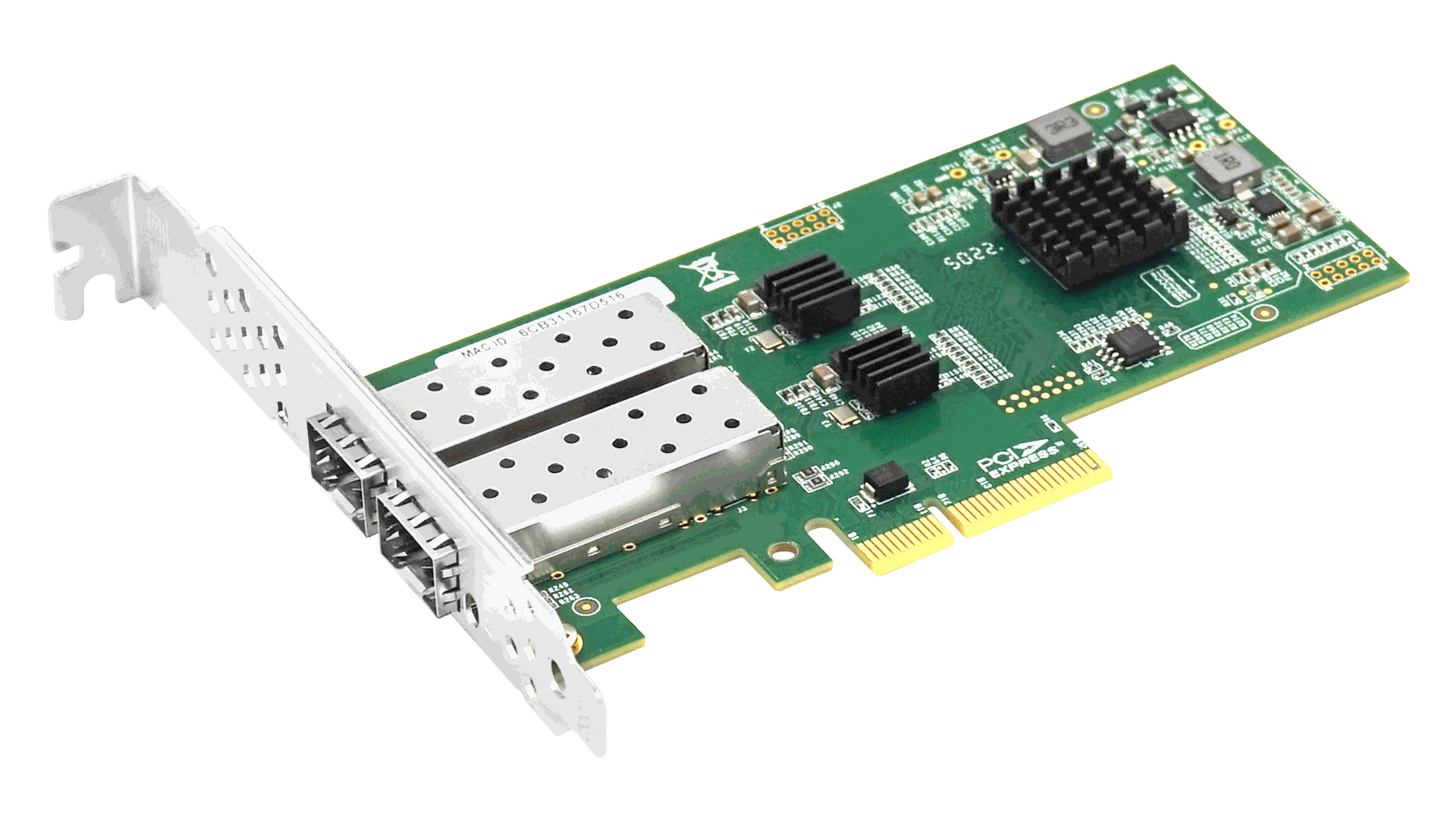

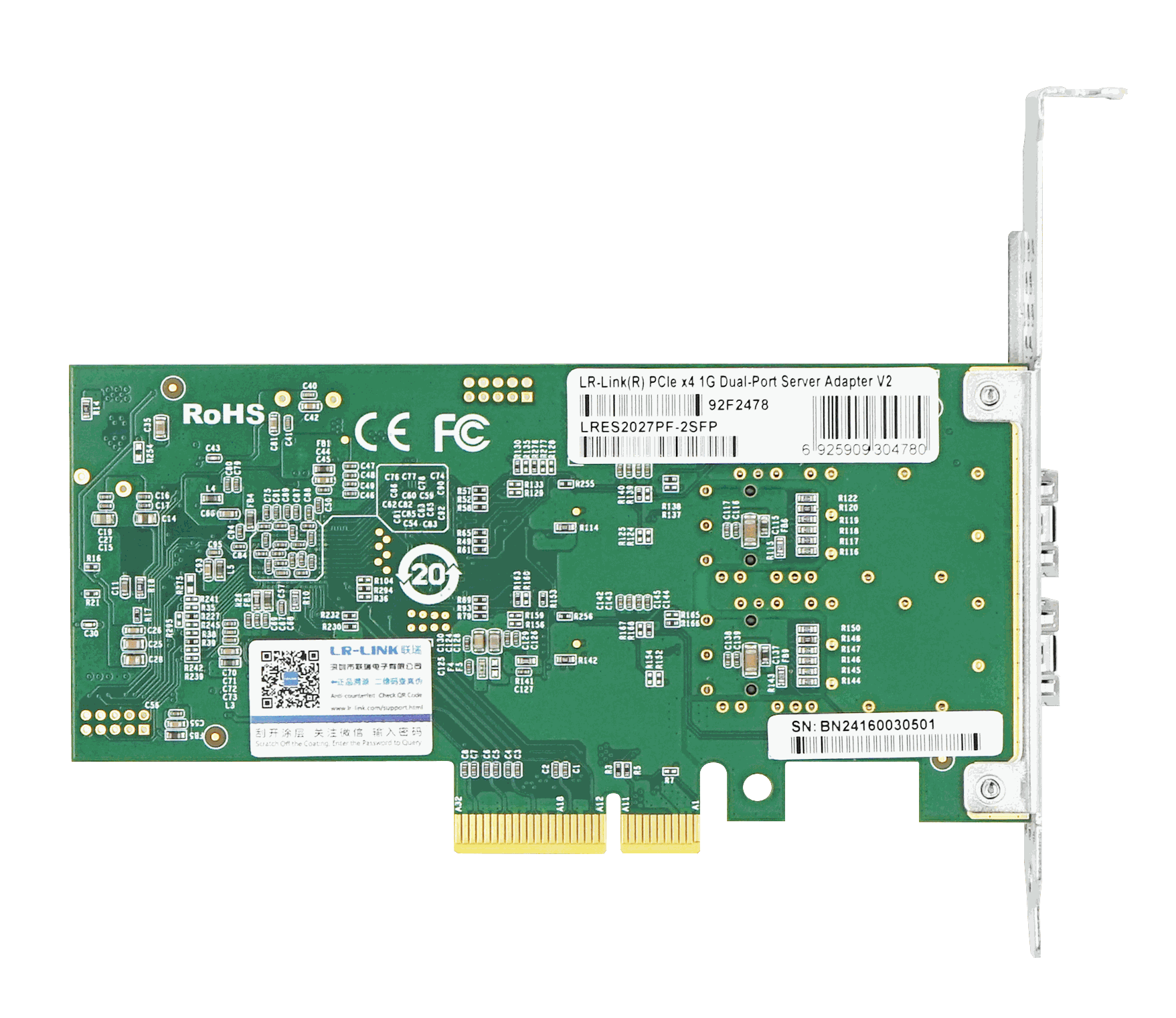

PCIe x4 1G Dual-Port Server Adapter (Net-swift WX1860 Based)
LRES2027PF-2SFP is a PCIe x4 1G Dual-Port Server Adapter developed by Linkreal Co., Ltd. based on the Net-swift WX1860 main control solution, which is also compatible with PCIe x8 and x16 and backward compatible with PCIe v1.1.
Linkreal Co., Ltd. launched the LRES2027PF-2SFP with independent intellectual property rights, with a fully integrated Gigabit Ethernet media access control (MAC) module. It is widely used in fiber-to-the-desktop network communication, and can also be used in PC servers, embedded and other network equipment.
The main controller used by the optical fiber network card has China's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of some manufacturers and ensuring information security.
The Net-swift WX1860 controller used in the LRES2027PF-2SFP is a master control product independently developed and produced in China, which is independent and controllable. Indicators such as data transmission, data network bandwidth, average transmission delay, and actual packet transmission rate have reached the industry level.
Complete technical details for integration and deployment planning.
| ESD | Contact discharge |
|---|---|
| Air discharge | ±15KV |
| System Support | * Windows7/8/8.1/10/11* Windows Server 2008 R2* Windows Server 2012 R2* Windows Server 2016 R2* Windows Server 2019 R2* RHEL/Centos 7.3/7.6/7.9/8.2/8.3* Deepin 20.6* Ubuntu 18.04.5/16.04.3* Ubuntu 20.04.3* SUSE 12.5/15 |
|---|---|
| 1Gbps | LINK |
| ACT | Orange Blink+Green Link |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC，CE，RoHS |
