Single-port Gigabit PCIe 2.1 x1 network adapter based on Net-swift WX1860 controller for enterprise and server use.

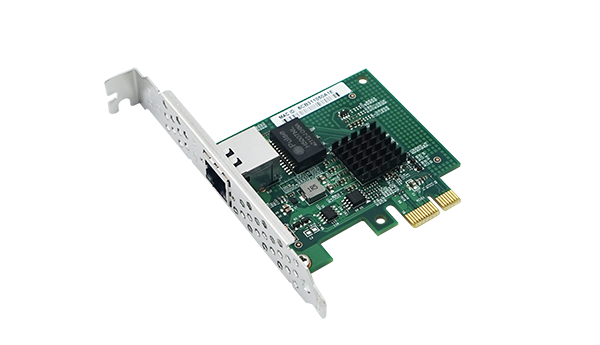

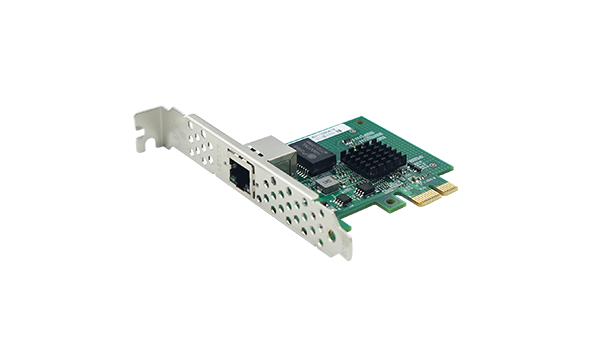

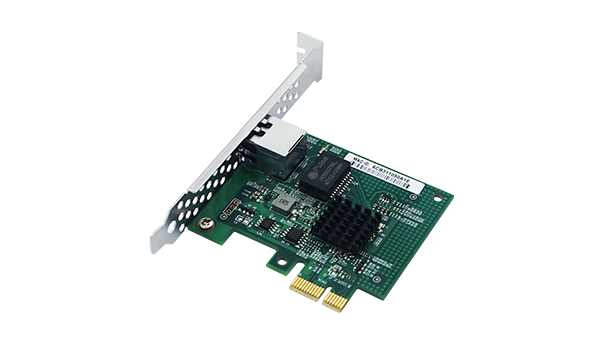

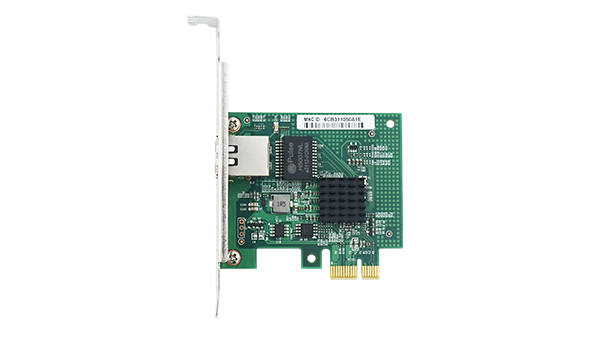

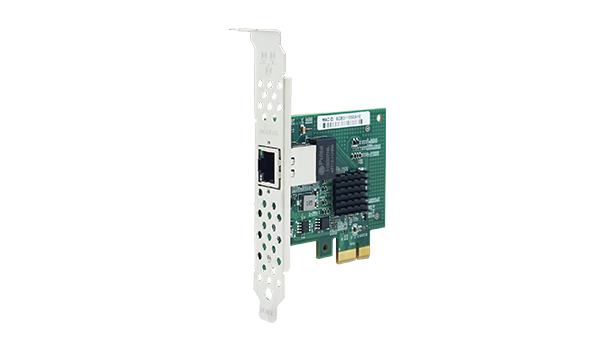

LR-LINK presents the LRES2034PT, a high-performance single-port Gigabit Ethernet network adapter built on the robust Net-swift WX1860 chipset. This adapter delivers full integration of MAC and PHY modules, ensuring stable and efficient data transmission for various networking applications.
Designed with flexibility in mind, the LRES2034PT supports PCIe 2.1 x1 bus type while remaining compatible with PCIe 1.1, x4, x8, and x16 slots. This versatility makes it an ideal solution for upgrading legacy systems or integrating into modern server and embedded environments without hardware constraints.
The adapter meets IEEE 802.3 standards including 1000BASE-T and 100BASE-TX, supporting Energy Efficient Ethernet (EEE) for reduced power consumption. With features like Jumbo Frames, PXE boot support, and Wake-on-LAN, it provides comprehensive functionality for enterprise institutions, PC servers, and industrial network equipment.
Powered by Net-swift WX1860 for industry-level data transmission and bandwidth.
PCIe 2.1 x1 slot with backward and forward compatibility for versatile installation.
Supports IEEE 802.3az EEE to reduce power consumption during low traffic.
Ideal for enterprise networks, servers, and embedded systems with robust stability.
Supports VLAN, Jumbo Frames, DPDK, and PXE for advanced network management.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 x1 |
|---|---|
| Compatibility | PCIe v1.1, x4, x8, x16 |
| Data Rate | 10/100/1000 Mbps |
| Connector | 1x 1G RJ45 |
| Controller | Net-swift WX1860 |
|---|
| IEEE Standards | |
|---|---|
| Protocol Support | |
| Advanced Features |
| Baffle Height | Full-height & Half-height bracket |
|---|---|
| Size (mm) | 76.6 * 120 * 21 |
| Power Consumption | 2.5W |
| LED Indicators | Link/Activity (Yellow/Green) |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| Windows | |
|---|---|
| Linux | |
| Other | iKuai 3.6.4 |
