PCIe x4 quad-port gigabit copper NIC based on Intel chipset for industrial and data center use.

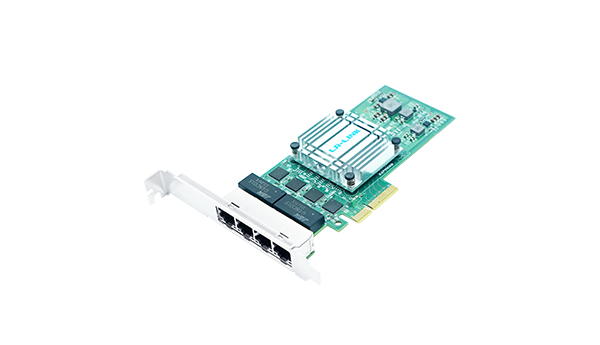

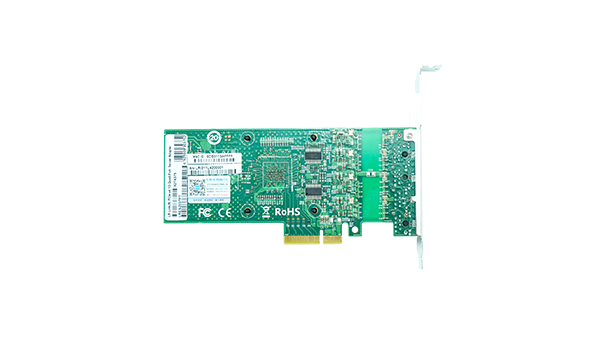

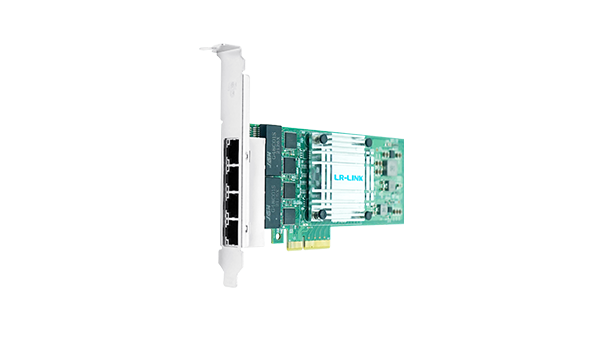

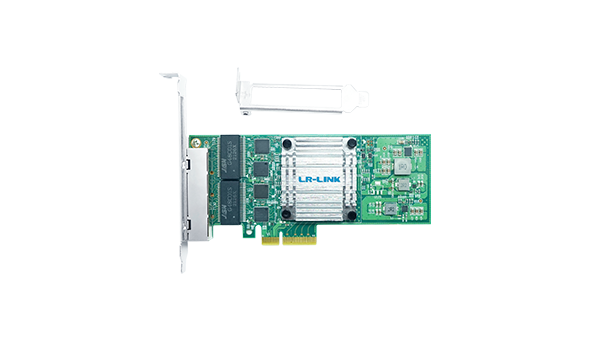

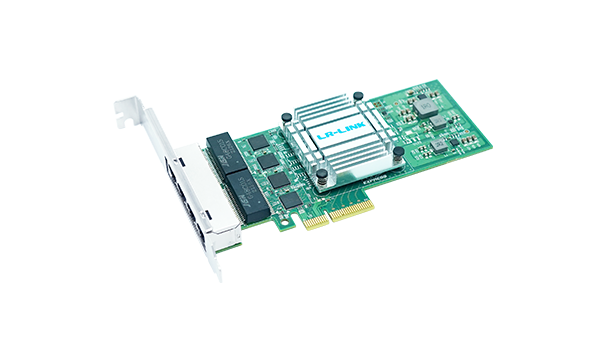

LR-LINK presents the LRES2038PT, a robust PCIe x4 quad-port Gigabit Ethernet network adapter designed for reliable data transmission in demanding environments. Built around a trusted Intel controller, this adapter delivers high-performance networking capabilities suitable for industrial manufacturing, machine processing, and general server applications.
Designed for flexibility, the LRES2038PT operates on PCIe x4 lanes but remains fully compatible with PCIe x8 and x16 channels. It supports adaptive link rates of 10/100/1000Mbps and allows all four ports to operate simultaneously in full-duplex mode, ensuring efficient bandwidth utilization and reduced deployment costs for customers migrating to Gigabit Ethernet.
The adapter incorporates advanced power management technologies such as Energy-Efficient Ethernet (EEE) and DMA merging to optimize performance and reduce latency. With comprehensive OS support including Windows Server, Linux distributions, and VMware ESXi, along with certifications like FCC, CE, and RoHS, the LRES2038PT offers a secure and compliant solution for modern network infrastructure.
Four independent Gigabit RJ45 ports for high-density connectivity.
Powered by Intel chipset for stable and high-performance data transmission.
Wide temperature range and rugged design for industrial manufacturing use.
Supports EEE and DMA merging to reduce power consumption and latency.
All ports support simultaneous full-duplex operation at maximum speed.
Compatible with PCIe x4/x8/x16 slots and major OS platforms.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v3.0 x4 (compatible with x8, x16) |
|---|---|
| Connector | 4x RJ45 |
| Data Rate per Port | 10/100/1000 Mbps |
| Copper Medium | Cat 5E/Cat 6 or higher (1000Base-T up to 100m) |
| Controller | Intel Chip |
|---|---|
| Advanced Features |
| Size | 158 x 120 x 21 mm |
|---|---|
| Weight | * g |
| Baffle Height | Half & Full-height bracket |
| Power Consumption | 5.0W |
| LED Indication | 1000M: Orange+Green; 10M/100M: Orange |
| Operating Temperature | 0℃ to 55℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Standards | FCC, CE, RoHS |
|---|---|
| Protocols | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az, IEEE 802.1Qav, IEEE 802.1Qbu, IEEE 802.1Qbv, IEEE 802.3br, IEEE 1588, IEEE 802.3ad |
