Quad-port Gigabit copper NIC based on Net-swift WX1860 controller for servers and embedded systems.

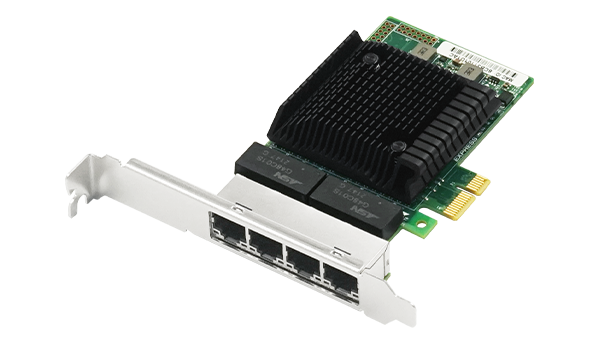

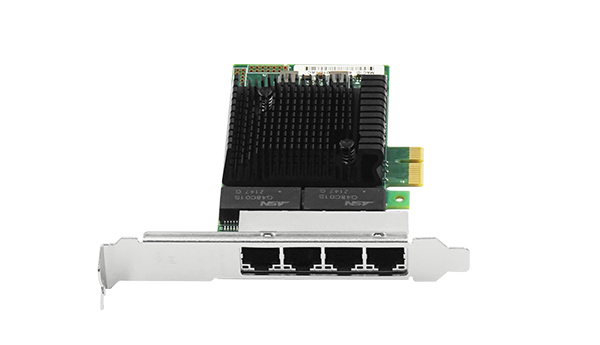

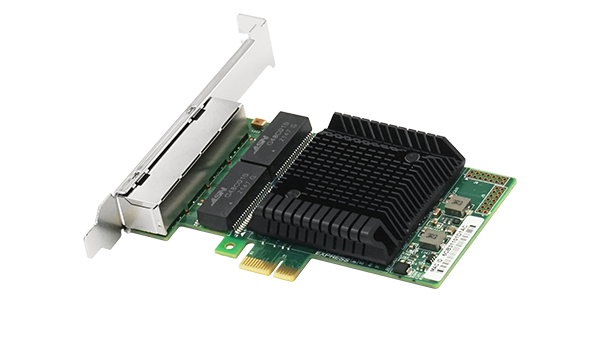

LR-LINK presents the LRES2046PT, a high-performance quad-port gigabit copper Ethernet network adapter designed for reliability and information security. Built on the independent Net-swift WX1860 controller, this card breaks reliance on traditional foreign chipsets, offering fully autonomous controllability for critical infrastructure.
Featuring a PCIe 2.1 x1 bus interface that is compatible with x4, x8, and x16 slots, the LRES2046PT provides efficient integration into various server and embedded platforms. Each of the four ports supports 10/100/1000Mbps speeds over Cat 5E/Cat6 cabling up to 100 meters, ensuring versatile connectivity for diverse networking environments.
This adapter is engineered for broad OS support including Windows, Linux, and various server distributions, making it suitable for data centers, cloud computing nodes, and industrial automation. With features like Jumbo Frames, DPDK support, and SR-IOV, it delivers advanced virtualization capabilities and high throughput for demanding applications.
Powered by Net-swift WX1860 for independent controllability and information security.
Four 1G RJ45 ports providing high-density gigabit copper connectivity.
Supports Jumbo Frames, DPDK, and SR-IOV for optimized data processing.
Compatible with PCIe x1/x4/x8/x16 slots and major Windows/Linux OS.
Low power consumption of 3.5W with IEEE 802.3az EEE support.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 x1 (compatible with x4, x8, x16) |
|---|---|
| Connector | 4x 1G RJ45 |
| Transmission Medium | Copper (Cat 5E/Cat6 or higher) |
| Data Rate per Port | 10/100/1000 Mbps |
| Controller | Net-swift WX1860 |
|---|---|
| Architecture | Integrated MAC module |
| Standards | |
|---|---|
| Advanced Features | |
| iSCSI | No |
| WoL | No |
| PXE | No |
| FCoE | No |
| Size | 110.9 x 120.8 x 21 mm |
|---|---|

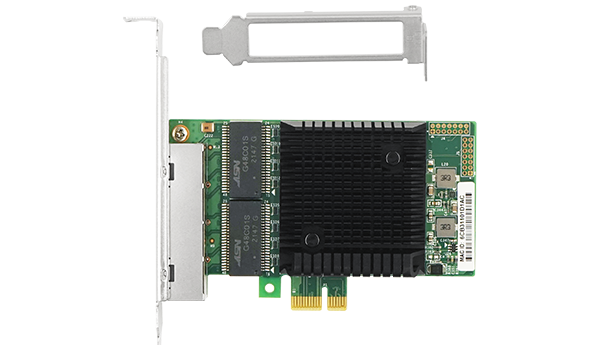

| Bracket | Half & Full-height |
| Power Consumption | 3.5W |
| LED Indication | Green (1000M), Orange (10/100M) |
| Operating Temperature | 0℃ to 70℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Windows | |
|---|---|
| Windows Server | |
| Linux |
| Compliance |
|---|
