Six-port Gigabit copper PCIe network adapter based on Net-swift WX1860 controller for servers and embedded systems.

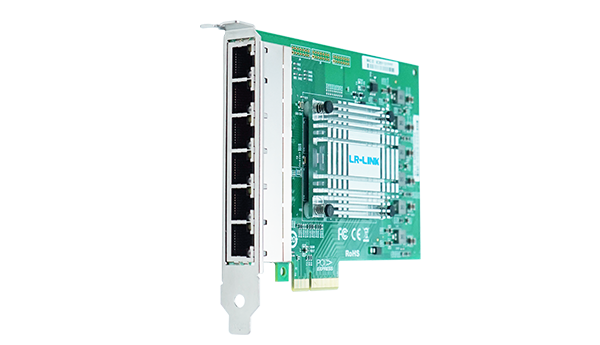

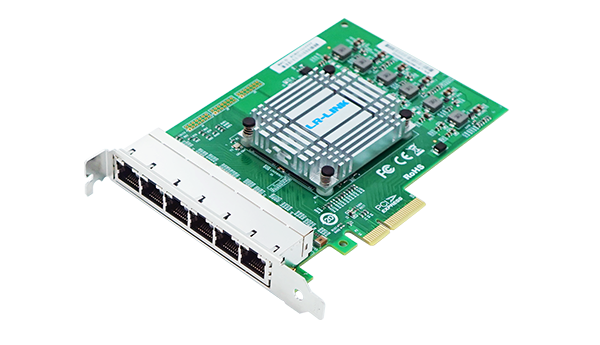

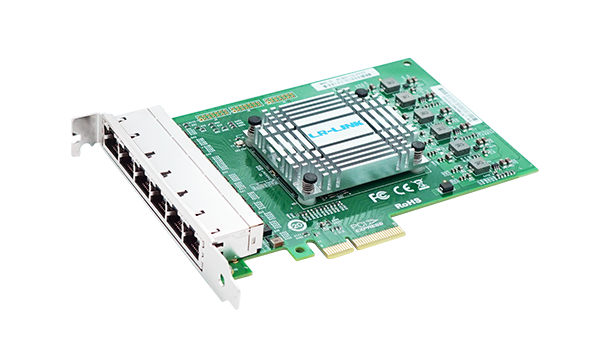

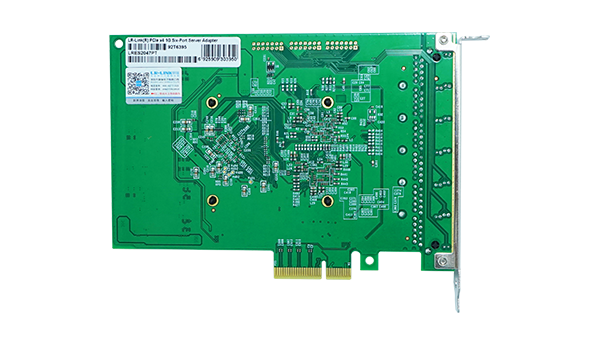

LR-LINK presents the LRES2047PT, a robust PCI Express v2.1 x4 six-port copper Gigabit Ethernet network adapter. Built upon the independent intellectual property of the Net-swift WX1860A4/WX1860 controller, this adapter delivers fully integrated MAC capabilities with transmission performance reaching industry-leading levels in bandwidth and latency.
This network card is engineered for compatibility with PCIe x8 and x16 slots, making it versatile for various server architectures and embedded systems. It supports IEEE 802.3 standards including 1000BASE-T, 100BASE-TX, and Energy Efficient Ethernet (EEE), ensuring efficient power consumption and broad media support from Cat 3 to Cat 6.
Designed with information security in mind, the LRES2047PT utilizes an autonomous and controllable main controller, significantly reducing dependency on external technology monopolies. It features advanced capabilities such as SR-IOV, DPDK, Jumbo Frames, and PXE boot support, making it suitable for demanding network communication environments, cloud computing nodes, and industrial automation applications.
Provides six Gigabit RJ45 ports for high-density connectivity in servers and switches.
Powered by Net-swift WX1860, ensuring supply chain security and technological independence.
Supports 1Gbps per port with low latency and high small-packet transmission rates.
Features SR-IOV and DPDK support for optimized virtual machine and NFV deployments.
Compatible with PCIe x4/x8/x16 slots and supports major Windows and Linux OS versions.
Includes IEEE 802.3az EEE support to reduce power consumption during low traffic.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v2.1 x4 (compatible with x8, x16) |
|---|---|
| Port Configuration | Six-port |
| Connector | 6x RJ45 |
| Data Rate per Port | 10/100/1000Mbps |
| Transmission Medium | Copper (Cat 5E/Cat 6 or higher) |
| Controller | Net-swift WX1860 / WX1860A4 |
|---|---|
| MAC Module | Fully Integrated Gigabit Ethernet MAC |
| SR-IOV | YES |
|---|---|
| DPDK | YES |
| PXE | YES |
| Jumbo Frames | YES |
| WoL | YES |
| IPsec | YES |
| IEEE 802.1Q VLAN | YES |
| Energy Efficient Ethernet (EEE) | YES |
| Size | 120.8 * 151.65 * 21 mm |
|---|---|
| Weight | * g (refer to specific unit) |
| Baffle Height | Full-height bracket |
| Power Consumption | 5.94W |
| Power Supply | PCIe |
| Operating Temperature | 0℃ to 70℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Windows | 7/8/8.1/10/11, Server 2008R2/2012R2/2016R2/2019R2 |
|---|---|
| Linux | SLES 11/12, CentOS/RHEL 6.6~7.4, Ubuntu 14.04/16.10, iKuai 3.6.4 |
| Compliance | FCC, CE, RoHS |
|---|
