Intel X550 based dual-port 10G NIC with M.2 expansion for industrial automation.

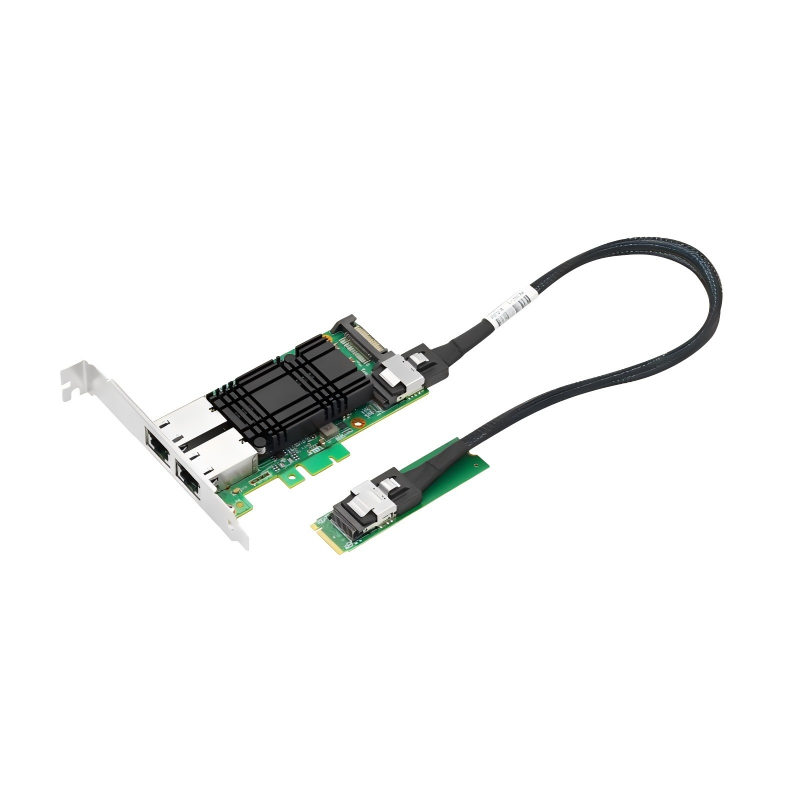

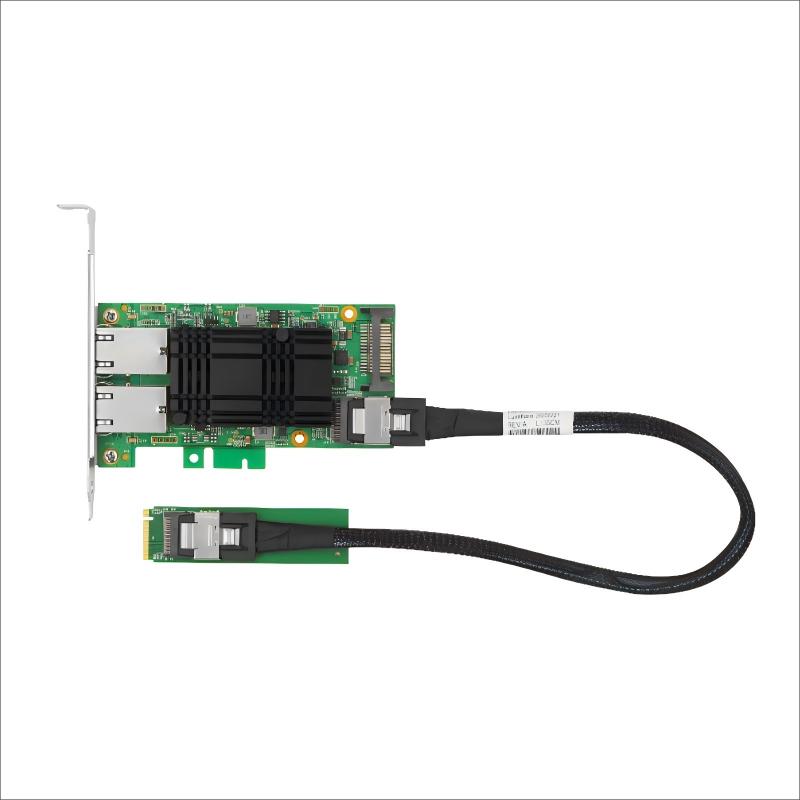

LR-LINK presents the LRES2050PT-2RJ45, a specialized 10G dual-port Ethernet network adapter engineered for demanding industrial environments. Built on the robust Intel X550 chipset, this adapter delivers high-speed data transmission capabilities while maintaining exceptional reliability and compatibility. Its unique design leverages an M.2 interface to provide flexible network expansion, effectively converting two RJ45 ports without consuming standard PCIe slots, which is crucial for space-constrained industrial systems.
This network adapter supports versatile link speeds ranging from 100Mbps up to 10Gbps, including NBASE-T standards (5G/2.5G), making it adaptable to various network infrastructures. Key features include support for jumbo frames up to 9.7KB, IEEE 1588 PTP for precise time synchronization, and SR-IOV technology for enhanced virtualization performance. The device ensures efficient energy consumption through Energy Efficient Ethernet (EEE) compliance.
Ideal for industrial automation, the LRES2050PT-2RJ45 facilitates critical applications such as production line data transmission, equipment remote monitoring, and centralized system management. With comprehensive OS support spanning Windows, Linux distributions, and VMware ESXi, along with certifications like FCC, CE, and RoHS, LR-LINK guarantees a practical and efficient connectivity solution that optimizes production processes and enhances operational efficiency.
Utilizes M.2 interface to expand two RJ45 ports without occupying PCIe slots.
Supports up to 10Gbps data rate with 5G/2.5G/1G/100Mbps flexibility.
Designed for harsh industrial environments with wide temperature tolerance.
Powered by reliable Intel X550 controller for stable performance.
Supports IEEE 1588 PTP for accurate time synchronization in automation.
Enables SR-IOV and DPDK support for efficient virtualized networks.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRES2050PT-2RJ45 |
|---|---|
| Controller | Intel X550 |
| Bus Type | PCIe 3.0 (8.0 GT/s) x4 |
| Connector | 2x RJ45 + M.2 Interface |
| Data Rate per Port | 10Gbps/5Gbps/2.5Gbps/1000Mbps/100Mbps |
| Cable Medium | Copper |
| IEEE Standards | IEEE 802.3an, 802.3ab, 802.3u, 802.3bz |
|---|---|
| Advanced Protocols | |
| Jumbo Frame | 9.7KB |
| Virtualization | |
|---|---|
| Management | |
| LED Indication | Orange/Green Link Status |
| PCB Size | 115*64.3*1.6 mm |
|---|---|
| Bracket Height | Low Profile & Full Height |
| Power Supply | 15Pin SATA power socket |
| Operating Temperature | 0℃ to 55℃ |
|---|---|
| Storage Temperature | -40℃ to 85℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Compliance | FCC, CE, RoHS |
|---|
