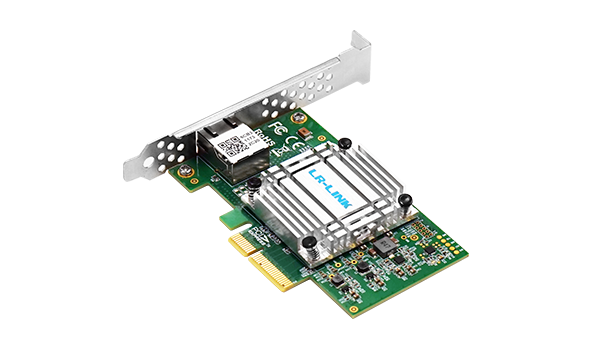

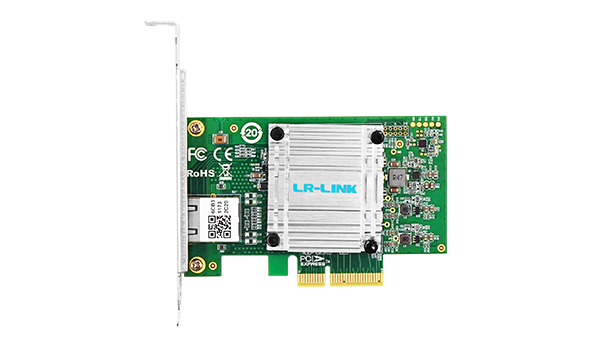

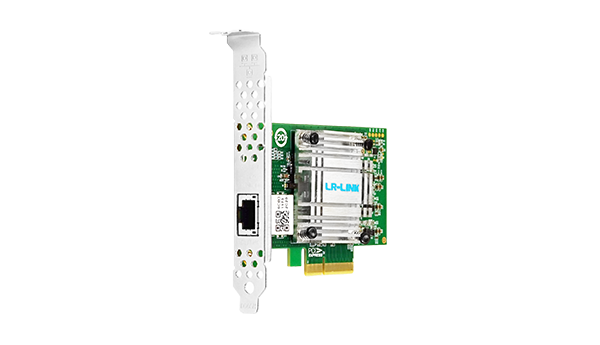

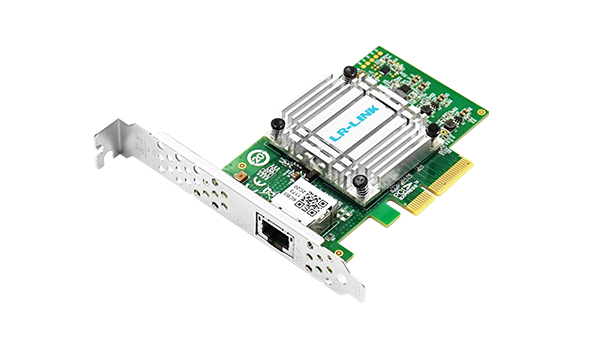

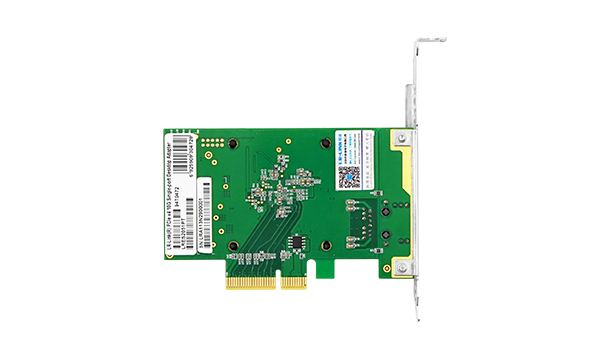

PCIe 3.0 x4 single-port 10G copper network adapter based on Marvell AQC113 controller.
Linkreal presents the LRES2051PT, a robust single-port 10G Ethernet network adapter designed for high-efficiency connectivity. Built on the advanced Marvell AQC113 controller, this adapter delivers superior performance while optimizing CPU utilization and reducing power consumption in demanding server environments.
This versatile NIC supports six distinct network rates: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T. It complies with IEEE 802.3an and IEEE 802.3bz standards, ensuring reliable transmission over standard twisted-pair cabling up to 10 meters. The adapter features jumbo frame support up to 16 KB, maximizing data transmission efficiency.
Designed for flexibility, the LRES2051PT utilizes a PCIe v3.0 x4 interface but remains compatible with PCIe x8 and x16 channels. It includes comprehensive driver support for major operating systems including Windows Server, Linux distributions, and various domestic OS platforms. With low-profile and full-height bracket options, it fits seamlessly into diverse chassis configurations.
Supports six data rates up to 10Gbps over standard copper wiring.
Optimized power consumption with EEE support for energy savings.
Powered by Marvell AQC113 controller for stable performance.
PCIe 3.0 x4 interface compatible with x8 and x16 slots.
Supports multiple OS including Windows, Linux, and domestic variants.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe v3.0 x4 (Compatible with x8/x16) |
|---|---|
| Connector | 1x RJ45 |
| Cable Medium | Copper |
| Controller | Marvell AQC113 |
|---|---|
| Data Rate per Port | 10G / 5G / 2.5G / 1G / 100M / 10M |
| IEEE Standards | IEEE 802.3an, 802.3bz, 802.3ab, 802.3u, 802.1Q, 802.3x, 802.3az |
|---|---|
| Features | |
| LED Indication | Connection Status (ACT Orange/LINK Green), Transfer Status (ACT Orange/LINK Green Blink) |
| PCB Size | 105.1 * 68.1 * 1.6 mm |
|---|---|
| Bracket Height | Low Profile & Full Height |
| Product Weight | * (See packing list) |
| Operating Temperature | 0℃ to 70℃ |
|---|---|
| Storage Temperature | -55℃ to 105℃ |
| Storage Humidity | Max 90% non-condensing at 35℃ |
| Power Consumption (Min/Max) | 1.2177 W / 2.805 W |
| Certifications | FCC, CE, RoHS |
|---|---|
| ESD Protection | Contact ±8KV, Air ±15KV, Lightning ±1KV |
