Intel I226 based quad-port 2.5G PoE+ frame grabber for industrial vision and surveillance.

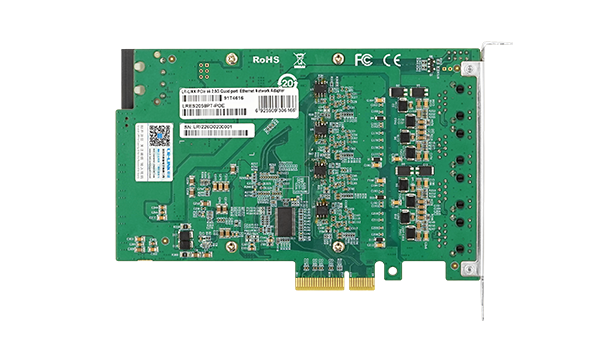

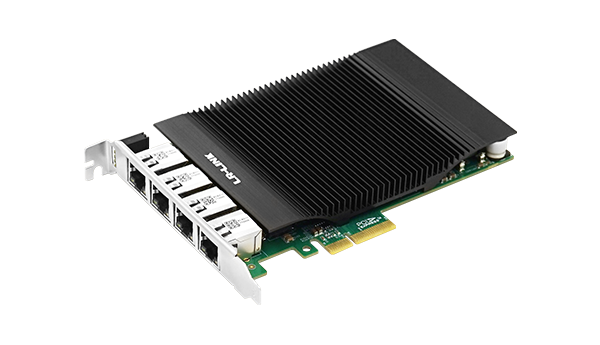

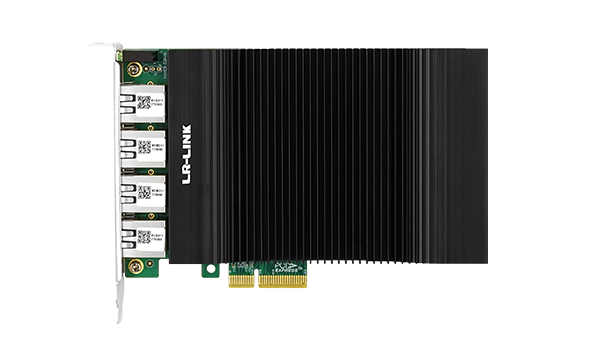

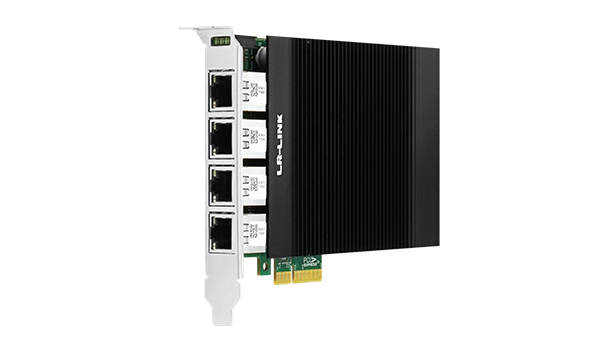

Linkreal presents the LRES2058PT-POE, a specialized PCIe x4 Quad-port PoE+ 2.5G Vision Frame Grabber Card engineered for demanding industrial applications. Built on the reliable Intel I226 controller, this adapter provides four independent Gigabit Ethernet interfaces capable of 2.5Gbps transmission speeds, ensuring high-bandwidth data transfer for high-resolution camera feeds.
Designed specifically for machine vision and intelligent surveillance, the card supports IEEE 802.3at (PoE+) standards, delivering up to 30W of power per port with a total budget of 90W. This capability simplifies installation by combining power and data transmission over a single cable for front-end devices such as industrial cameras, sensors, and surveillance units.
The LRES2058PT-POE excels in synchronization tasks through its support for the IEEE 1588 PTP protocol, enabling multi-camera synchronized acquisition essential for complex vision systems. With features like hardware switch control for PoE status, Jumbo Frame support up to 9.2KB, and 8KV ESD protection, it ensures low latency, high reliability, and reduced maintenance costs in harsh industrial environments.
Four independent 2.5Gbps RJ45 ports for high-speed data acquisition.
Supports IEEE 802.3at PoE+, delivering up to 30W per port.
Powered by Intel I226 controller for low latency and high reliability.
IEEE 1588 PTP support for precise multi-camera synchronization.
Optimized for machine vision, surveillance, and industrial automation.
Features 8KV ESD and 2KV surge protection for harsh environments.
Complete technical details for integration and deployment planning.
| Host Interface | PCIe 2.0 x4 |
|---|---|
| Ethernet Ports | 4x RJ45 |
| Data Rate | 2.5Gbps / 1Gbps / 100Mbps / 10Mbps |
| Cable Requirement | CAT5e, CAT6A, or CAT7 (up to 100m) |
| Controller | Intel I226 |
|---|---|
| Protocol Support | IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3x, 802.3at |
| Jumbo Frame | Up to 9.2KB |
| Synchronization | IEEE 1588 PTP |
| PoE Standard | IEEE 802.3at (PoE+) |
|---|---|
| Power Output Per Port | Up to 30W |
| Total Power Budget | Up to 90W |
| Power Input | 12VDC from PCIe slot + 4-pin Molex connector |
| Max Power Consumption | 9.36W |
| Dimensions | 156.64mm x 104.37mm x 17.5mm |
|---|---|
| Bracket Type | Full Height |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| ESD Protection | 8KV |
| Surge Protection | 2KV |
| OS Support | Windows 10/11, Linux |
|---|---|
| UEFI Support | Yes |
| WoL Support | Yes |
| Certifications | FCC, CE, RoHS |
|---|
