M.2 dual-port 10G fiber optic network adapter based on Mellanox X3 controller with RDMA support.

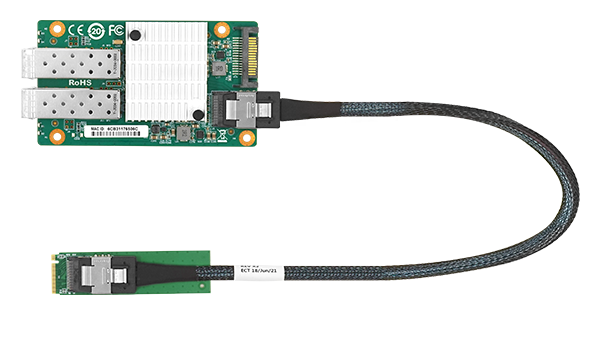

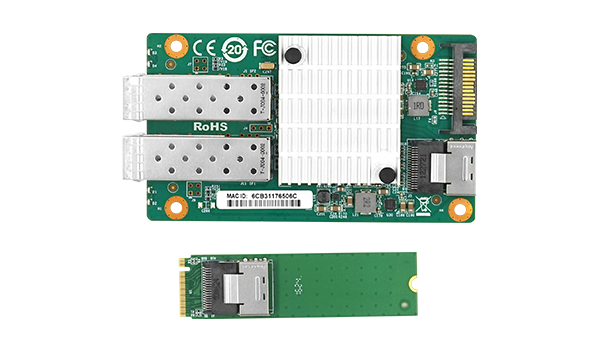

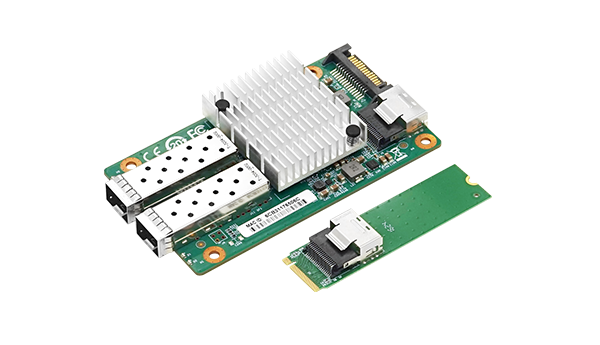

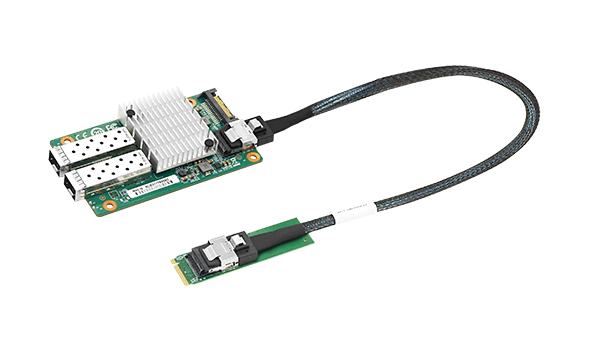

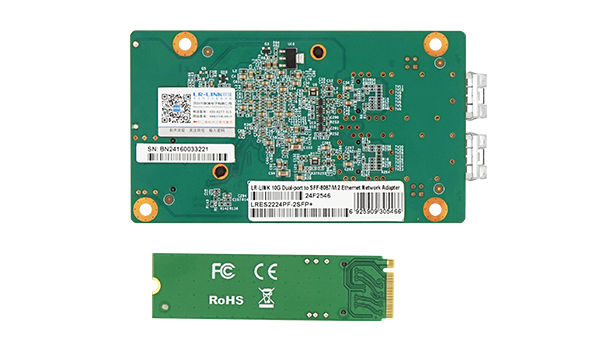

LR-LINK presents the LRES2130PF-2SFP+, a specialized M.2 form factor network adapter designed to deliver high-performance 10G connectivity in compact systems. Built on the robust Mellanox X3 controller, this adapter converts the M.2 interface into two dedicated 10G SFP+ ports, enabling seamless integration into servers and workstations without requiring bulky PCIe slots.
This network card supports both 1Gbps and 10Gbps data transmission rates over optical fiber, ensuring flexibility for various network environments. By leveraging RoCE (RDMA over Converged Ethernet) technology, it achieves low-latency and high-throughput data transfer, significantly improving network efficiency for demanding applications such as AI training clusters and high-frequency trading.
Ideal for modern data centers and industrial automation, the LRES2130PF-2SFP+ offers plug-and-play ease with comprehensive OS support including Windows Server, Linux distributions, and VMware ESXi. Its compact PCB size and included SFF-8087 cable make it an ideal solution for upgrading legacy systems or building custom high-speed networking nodes.
Dual 10G SFP+ ports delivering up to 10Gbps throughput for fast data transfer.
Supports RoCE and RDMA for zero-copy data transmission and minimal latency.
M.2 form factor fits into small form factor servers and workspaces easily.
Powered by the industry-standard Mellanox X3 controller for stability.
Includes SFF-8087 cable for easy connection to external enclosures.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRES2130PF-2SFP+ |
|---|---|
| Controller | Mellanox X3 |
| Bus Type | PCIe v3.0 (8.0GT/s) x4; M.2 interface |
| Data Rate | 1Gbps; 10Gbps |
| Connector | 2*10G SFP+ |
| Cable Medium | Optical Fiber |
| Power Supply | 15PIN SATA power socket |
| RDMA | YES |
|---|---|
| RoCE | YES |
| PXE | YES |
| JumboFrames | YES |
| IEEE1588 | YES |
| SR-IOV | NO |
| WoL | NO |
| UEFI | NO |
| JumboFrame(max) | 9.5KB |
| Ethernet Standard | IEEE 802.3ae 10 Gigabit Ethernet over fiber |
|---|---|
| VLAN | IEEE 802.1Q |
| Link Aggregation | IEEE 802.3AD |
| Energy Efficient Ethernet | IEEE 802.3AZ |
| Priority Flow Control | IEEE P802.1Qau |
| Time-Sensitive Networking | IEEE P802.1Qbb |
| PCB Size | 63*110*1.6 mm |
|---|---|
| Package Size | 222*147*28 mm |
| LED Indication | LINK (Green), ACT (Green Blink + Green Link) |
| Operating Temperature | 0℃ to 55℃ |
|---|---|
| Storage Temperature | -40℃ to 70℃ |
| Storage Humidity | Maximum: 90% non-condensing at 35℃ |
| Compliance | FCC, CE, RoHS |
|---|
