Mini PCIe Single-port Gigabit Copper Network Adapter (Intel 82574)

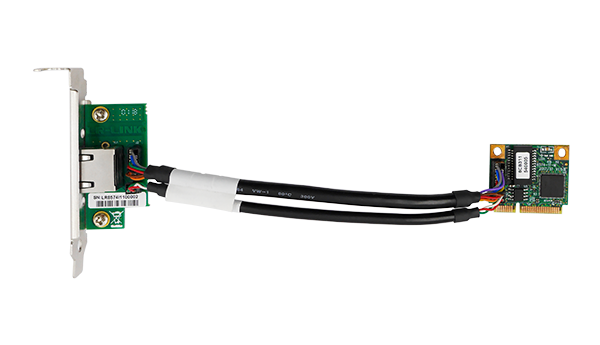

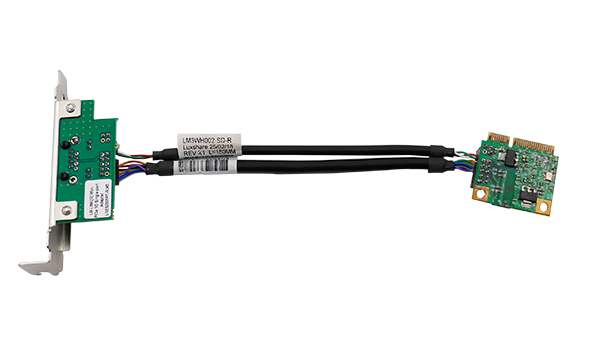

LRES2201PT based on Intel 82574 controller, is a Mini PCIe single-port Gigabit Ethernet network adapter developed by Linkreal Co., Ltd.
This adapter card is designed with Mini PCIe slot and is designed for industrial equipment such as industrial PCs and single board machines with Mini PCIe interface slots. It can solve the problem of compact space of equipment. The card supports a 10/100/1000 Mbps link rate that automatically adapts to existing Ethernet networks.
This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows, Linux, MAC OS.
Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350): LRES2203PF-2SFP
Complete technical details for integration and deployment planning.
| Controller | Intel(R) 82574 |
|---|---|
| Cable Medium | Copper |
| Cable Type | 1000Base-T Cat5E/6 or higher:up to 100m |
| Bracket | Low Profile and Full-height Bracket |
|---|---|
| Operating System Support | Windows XP |
| Connector | 8-Pin RJ45 |
|---|---|
| PCIe Bus | PCI Express v1.1 (2.5GT/s) |
| Transmission Rate | 10/100/1000Mbps |
| IEEE Standard | IEEE 802.3IEEE802.3adIEEE 802.1pIEEE 802.1Q VLANsIEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|---|---|
| PXE | Yes |
| DPDK | Yes |
| Jumbo Frame | Yes |
| iSCSI | No |
| FCoE | No |
| WOL | No |
| Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 90% non condensing under 35℃ |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, MIC |
| LED | 1000Mbps : Green + Green Blink |
|---|
| PCB size(mm) | 30*26.8*1.0mm(M)+ 63*25.3*1.6mm（M1） |
|---|---|
| Weight(g) | 38 |
