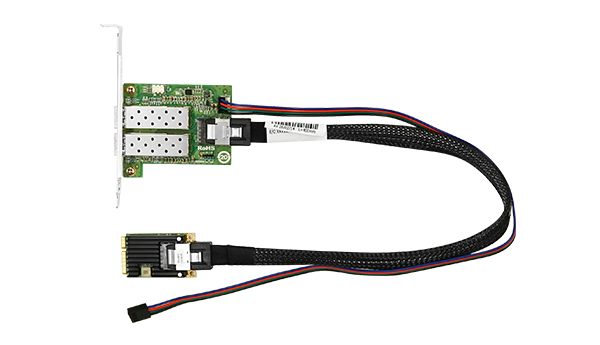

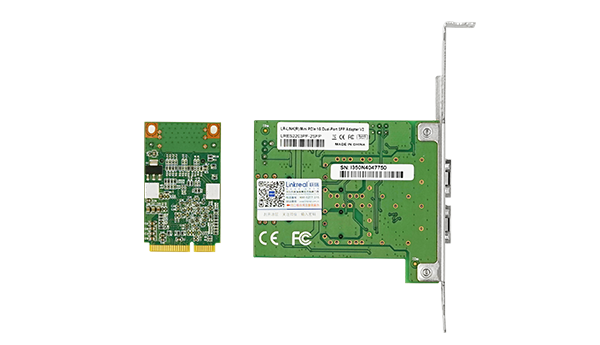

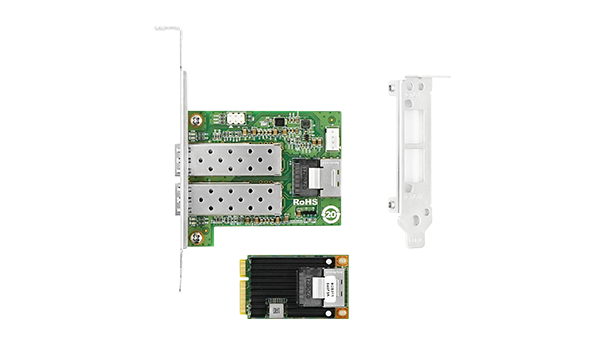

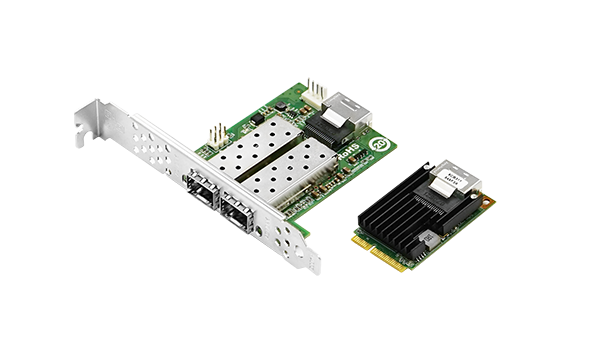

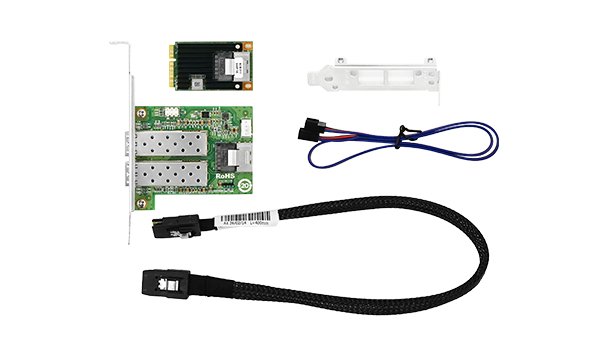

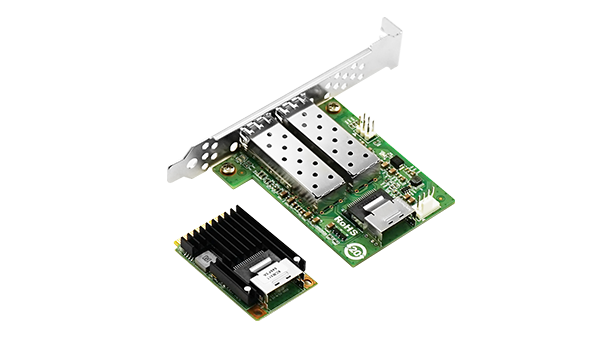

Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350)
LRES2203PF-2SFP based on Intel I350 controller, is a Mini PCIe dual-port SFP Gigabit Ethernet network adapter developed by Linkreal Co., Ltd.
This adapter card is designed with Mini PCI-e slot and is designed for use on industrial equipment including Mini PCIe interface slots such as industrial PCs and single board machines. It can solve the problem of compact space of equipment. The adapter card supports a dual port 1000 Mbps link rate.
This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can support Windows, Linux and other systems, and has excellent security and stability in complex environments. .
Mini PCIe Dual-port Gigabit copper Ethernet card (Intel I350): LRES2217PT
Complete technical details for integration and deployment planning.
| Controller | Intel(R) I350 |
|---|---|
| Fiber Medium | 1G SFP AOC/DAC |
| Fiber Type | 1000Base-SX/1000Base-LX/ SFP |
| Bracket | Low Profile and Full-height Bracket |
| Power(max) | 3W |
| Operating System Support | Windows XP |
| Connector | 2*SFP |
|---|---|
| PCIe Bus | Mini PCI Express |
| Transmission Rate | 1000Mbps |
| IEEE Standard | IEEE802.3adIEEE 802.1pIEEE 802.1Q VLANsIEEE 802.3z 1000BASE-X Gigabit Ethernet |
|---|---|
| PXE | Yes |
| DPDK | Yes |
| Jumbo Frame | Yes |
| iSCSI | No |
| FCoE | No |
| WOL | No |
| Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 90% non condensing under 35℃ |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, MIC |
| LED | 1000Mbps:Green + Green Blink |
|---|
| PCB size(mm) | 51*30*1.0(M) |
|---|---|
| Weight(g) | 35 |
