Mini PCIe Single-port Gigabit SFP Ethernet Network Adapter (Intel I210)

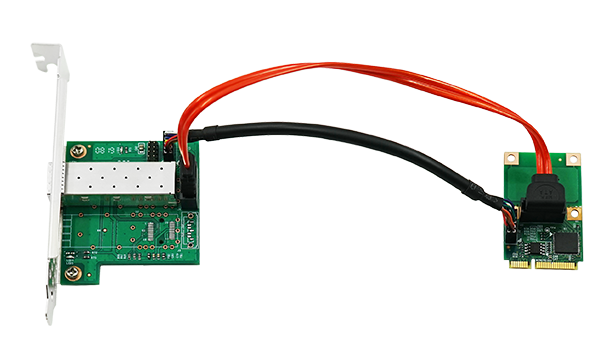

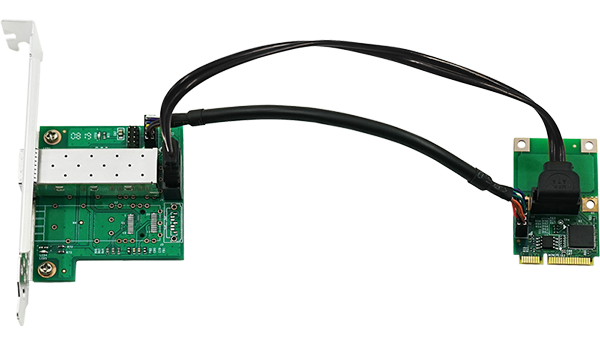

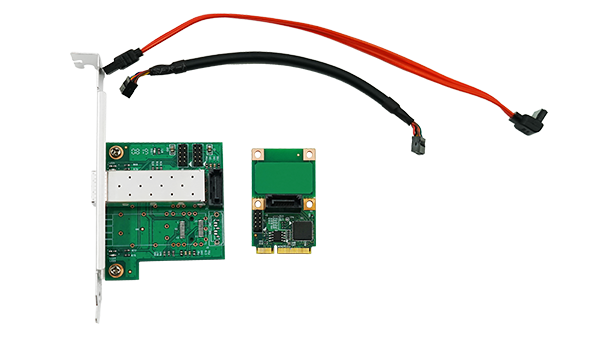

LRES2204PF-SFP is a Mini PCIe x1 full-height (half-height) single optical port SFP Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd. based on Intel I210 solution. This adapter card is designed with Mini PCI-e slot and is designed for industrial equipment such as industrial PCs and single-board machines with Mini PCIe interface slots. It can solve the problem of compact space of equipment. The adapter card supports a 10/100/1000 Mbps link rate that automatically adapts to existing Ethernet networks.
This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.
LRES2204PF-SFP is a single-port SFP fiber adapter card. Users can select fiber optic modules according to actual transmission distance requirements. At the same time, the adapter card uses INTEL I210 server controller, which has high performance, high stability, high quality and very good compatibility. Sex, compatible with all brands of computers and fiber switches.
Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350): LRES2203PF-2SFP
Complete technical details for integration and deployment planning.
| Controller | Intel i210 |
|---|---|
| Baffle Height | Full height and half height |
| Power Consumption | 1.0W |
| System Support | Windows 7/8/8.1/10 |
| Bus Type | Mini PCIe |
|---|---|
| Data rate supported per port | 1000MbE |
| Connector | 1*SFP |
| Standards compliant | IEEE802.3z 1000BASE-X Gbit/s EthernetIEEE 802.3x Full Duplex and flow controlIEEE 802.3ad Link aggregation for parallel linksIEEE 802.1Q VLANIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|---|---|
| iSCSI | YES |
| WoL | No |
| Jumbo Frames | YES |
| DPDK | Yes |
| PXE | Yes |
| FCoE | No |
| Operating Temperature | 0 ℃ to 55 ℃ (-13 ℉ to 158 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Size(mm) | 147*120*21 |
|---|---|
| Weight(g) | 100 |
| LED Indicators | Yellow Link + Green Blink |
|---|
