Mini PCIe Single-port Gigabit Copper Ethernet Network Adapter (Intel I210)

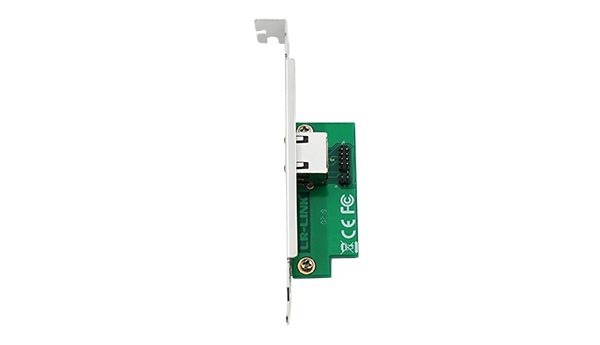

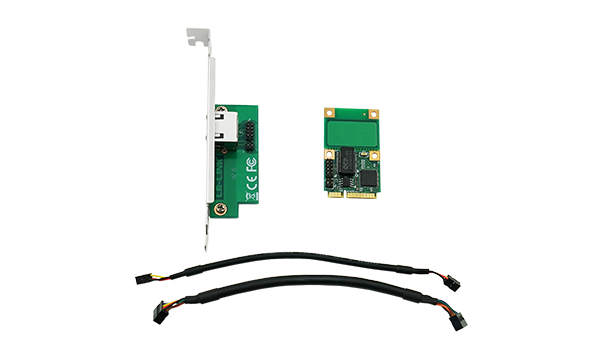

LRES2206PT is a Mini PCIe x1 full-height (half-height) single-port Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Intel I210 solution. This adapter card is designed with Mini PCI-e slot and is designed for industrial equipment such as industrial PCs and single-board machines with Mini PCIe interface slots. It can solve the problem of compact space of equipment. The adapter card supports 10/100/1000Mbps adaptive link rate network for data transmission in industrial field.
This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.
Mini PCIe Single-port Gigabit Copper Network Adapter (Intel 82574): LRES2201PT
Complete technical details for integration and deployment planning.
| Controller | Intel(R) Chip |
|---|---|
| Transmission medium | Copper |
| Type | 1000Base-T Cat 5E/6 or higher , up to 100m |
| Baffle Height | Half & full height |
|---|---|
| Power Consumption | 1.0W |
| Connector | 1*1G RJ45 |
| PCI-e Bus Type | Mini PCI Express |
| Data rate per port | 10/100/1000Mbps |
| Power supply | Mini PCIe |
| Standards compliant | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| OS Support | * Windows 7、8/8.1、10* Windows Server 2008 / R2* Windows Server 2012 / R2* Windows Server 2016 / R2* Windows Server 2019 / R2* Linux Stable Kernel version 2.6.x / 3.x / 4.x or later* CentOS / RHEL 6.x / 7.x or later* Ubuntu14.x/16.x or later* FreeBSD 9 / 10 / 11 or later* Vmware ESX/ESXi 5.x / 6.xor later |
| PXE | No |
| DPDK | Yes |
| WOL | No |
| iSCSI | Yes |
| Jumbo Frames | Yes |
| FCoE | No |
| LED Indication | 1000Mbps：Orange bright + Green flashing |
|---|
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
|---|---|
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| Certification | FCC B,CE |
| Weight(g) | 139 |
|---|
